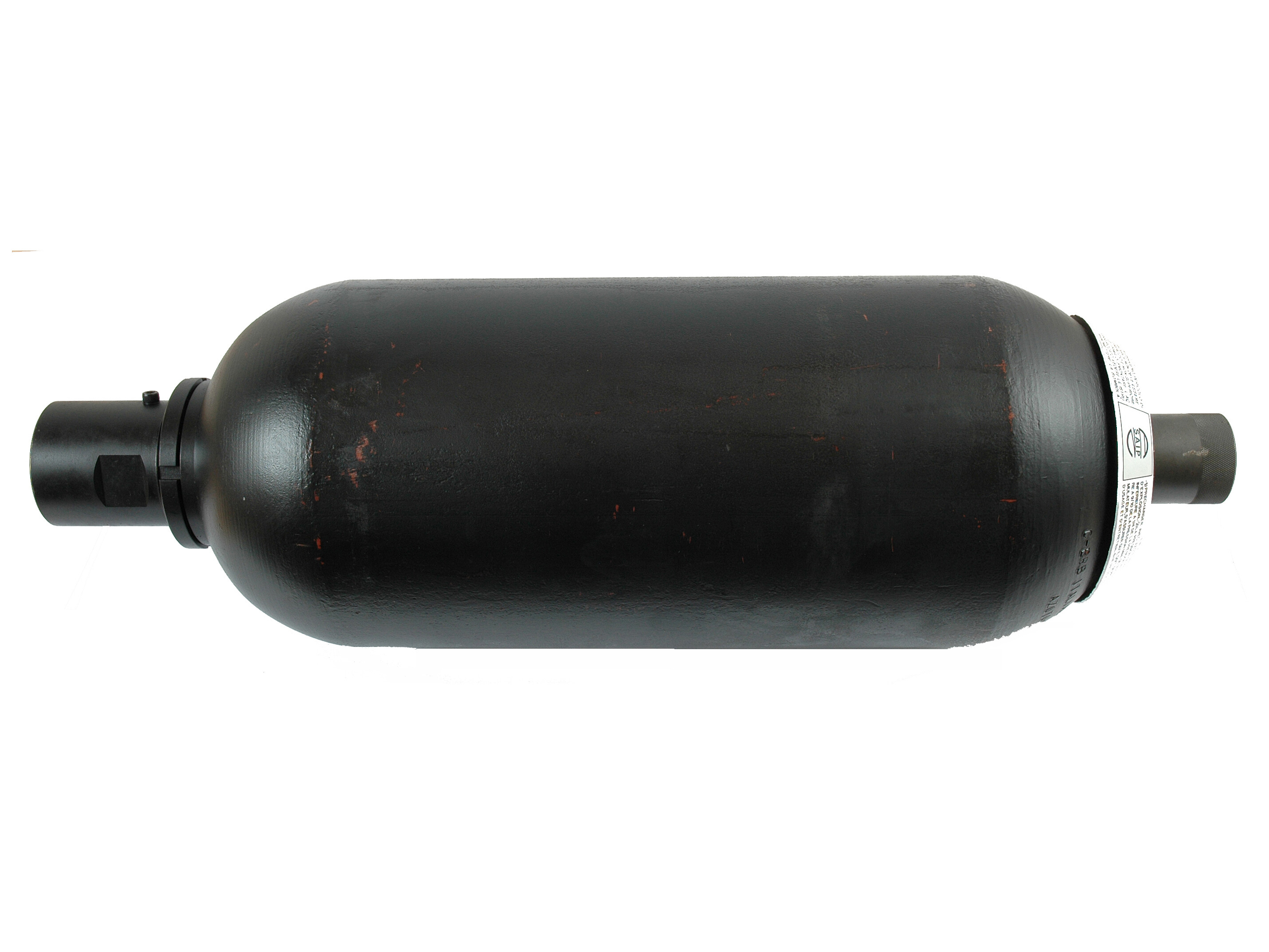

Saip bladder accumulator max 360 bar 1.1/4 BSP
Saip bladder accumulator max 360 bar 1.1/4 BSP
Partnumber:
SI1U10C7
Package size:
1 st
Min. order quantity is:
1 st
A
797 mm
B
51 mm
Brand Name
Saip
C
65 mm
CH1
32 mm
CH2
25 mm
Diameter
168 mm
Flow rate max. recommended
450 lpm
G
63,35 mm
Gas valve
5/8" UNF, Plug
Length
797 mm
Material
Carbon steel with epoxy coating (≥75 μm)
Model code
SI.1U.10L.1.O.C7.A
Mount
Install vertically, horizontally or at an angle with gas valve upwards
Precharge pressure
2 bar
Pressure difference ratio max.
4:1
Pressure max.
360 bar
Separating Element
NBR (-20 °C to +100 °C)
Temperature max.
+80 °C
Temperature min.
-15 °C
Test Standards
PED 2014/68/EU Cat. IV, EN 14359:2017, EN13445-3:2021
Type
Bladder
Volume
10 ltr
d
681 mm
h
9,5 mm
ØE
168 mm
ØF
22,5 mm
ØG1
46 mm
ØG2
53 mm
Package size
1 st
Barcode
484870
Gross weight
Kg
Net weight
31,00 Kg
Country of origin
ita
Intrastat code
73110091
Saip bladder accumulator max 360 bar 1.1/4 BSP
