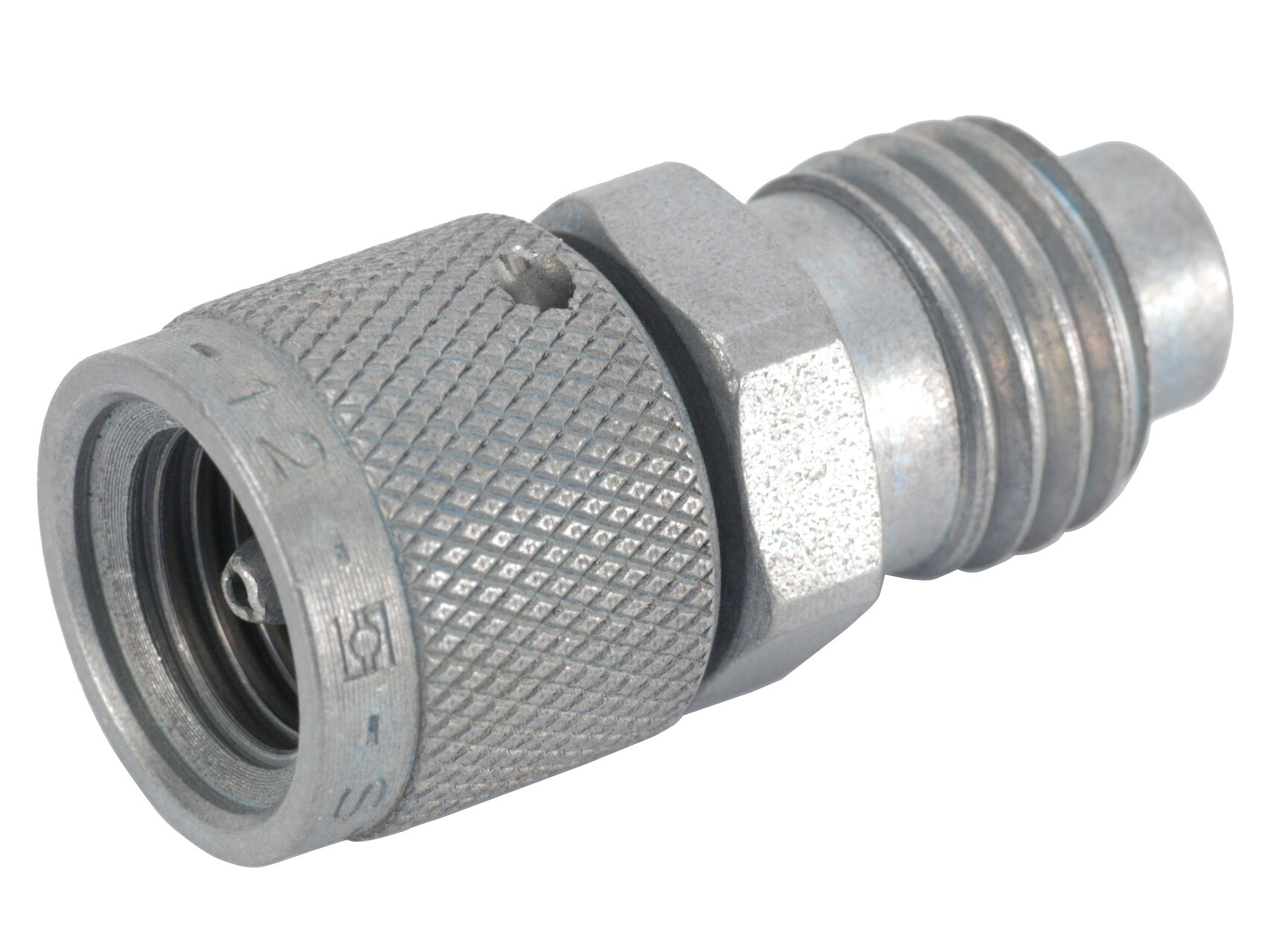

Adaptor male M16x2 female M12,
Test adaptor for connecting measuring equipment to a hydraulic test point interface. The adaptor provides an M16x2 male thread on one side and an M12,65x1,5 female thread on the other side for adapting between the two thread interfaces.
Sealed with FKM/FPM (Viton®) and supplied with a zinc-nickel plated surface treatment. Suitable for hydraulic systems with a maximum pressure of 630 bar and an operating temperature range of -20 to +100 °C.
Typical Applications
- Connection of pressure gauges and measuring hoses to hydraulic test points
- Diagnostic and commissioning measurements in hydraulic circuits
Artikelnummer:
SAD20/12-P
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Gänga inv. metrisk
M12,65x1,5
Gänga utv. metrisk
M16x2
Modell kod
SAD-20/12-W3
Märke namn
Stauff
Packningsmaterial
FKM/FPM (Viton®)
T
M12,65x1,5
Temperatur max.
+100 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Steel
Tryck max.
630 bar
Ytskiktbehandling
Zinc-Nickel plated
h
39 mm
Package size
1 pcs
Barcode
212554
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
DEU
Intrastat code
84812010
Test adaptor for connecting measuring equipment to a hydraulic test point interface. The adaptor provides an M16x2 male thread on one side and an M12,65x1,5 female thread on the other side for adapting between the two thread interfaces.
Sealed with FKM/FPM (Viton®) and supplied with a zinc-nickel plated surface treatment. Suitable for hydraulic systems with a maximum pressure of 630 bar and an operating temperature range of -20 to +100 °C.
Typical Applications
- Connection of pressure gauges and measuring hoses to hydraulic test points
- Diagnostic and commissioning measurements in hydraulic circuits
