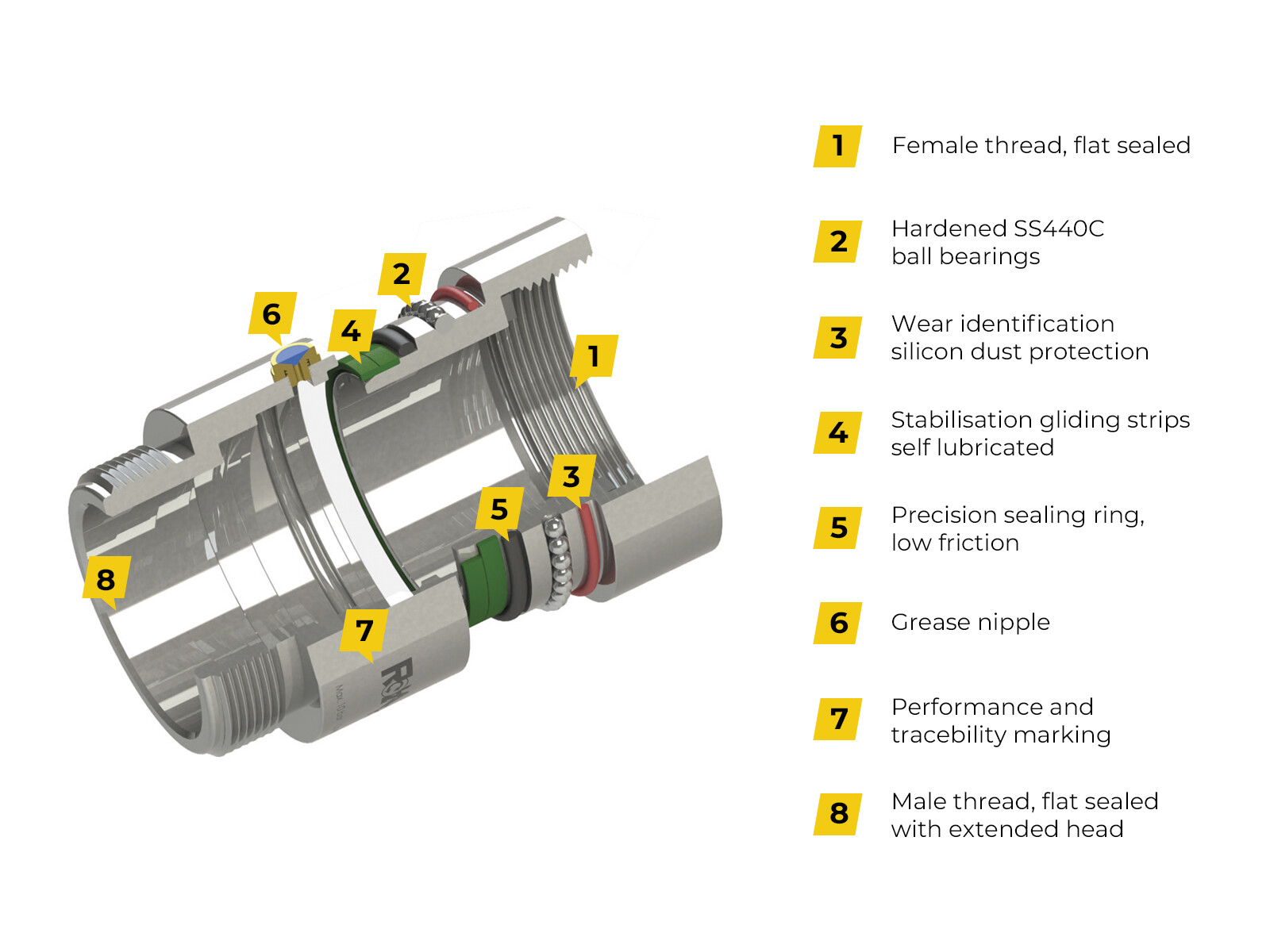

Svivel Inv/Utv-BSP 1.1/2'', Viton, Syrafast SS316
The Rotapoint® swivel prevents twisting in the hose and extends the life of the hose up to 20 times.
_x000D_They allow free hose movement without adding torque stresses to the hose assembly.
The swivel is designed to withstand a wide range of temperatures and pressures for a variety of fluids.
- Suitable for temperatures up to 180 ° C depending on gasket material
- Coupling and gaskets are chemically resistant
- The swivel requires little or no maintenance
- Easy assembly
- The swivel is equipped with a grease nipple
- Max. speed 40 revolutions / minute, depending on working pressure
- Not suitable for continuous rotation
Materials
Coupling: Stainless steel 316 (Standard), reinforced aluminium, brass and hastelloy (on request).
Seal: FPM (standard), NBR, EPDM, Kalrez and PU on request.<
Artikelnummer:
ROTAPOINT038SS
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Gänga inv.
G 1.1/2 BSP
Gänga utv.
G 1.1/2 BSP
Materialkvalitet
1.4571 / AISI316Ti
Märke namn
Hydraspecma
Packningsmaterial
FKM/FPM (Viton®)
Rotationshastighet max.
35 rpm
Temperatur max.
+100 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Stainless steel
Tryck max.
20 bar
Vinkel
0 °
Förpackningsstorlek
1 st
Streckkod
327173
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
bel
The Rotapoint® swivel prevents twisting in the hose and extends the life of the hose up to 20 times.
_x000D_They allow free hose movement without adding torque stresses to the hose assembly.
The swivel is designed to withstand a wide range of temperatures and pressures for a variety of fluids.
- Suitable for temperatures up to 180 ° C depending on gasket material
- Coupling and gaskets are chemically resistant
- The swivel requires little or no maintenance
- Easy assembly
- The swivel is equipped with a grease nipple
- Max. speed 40 revolutions / minute, depending on working pressure
- Not suitable for continuous rotation
Materials
Coupling: Stainless steel 316 (Standard), reinforced aluminium, brass and hastelloy (on request).
Seal: FPM (standard), NBR, EPDM, Kalrez and PU on request.<
