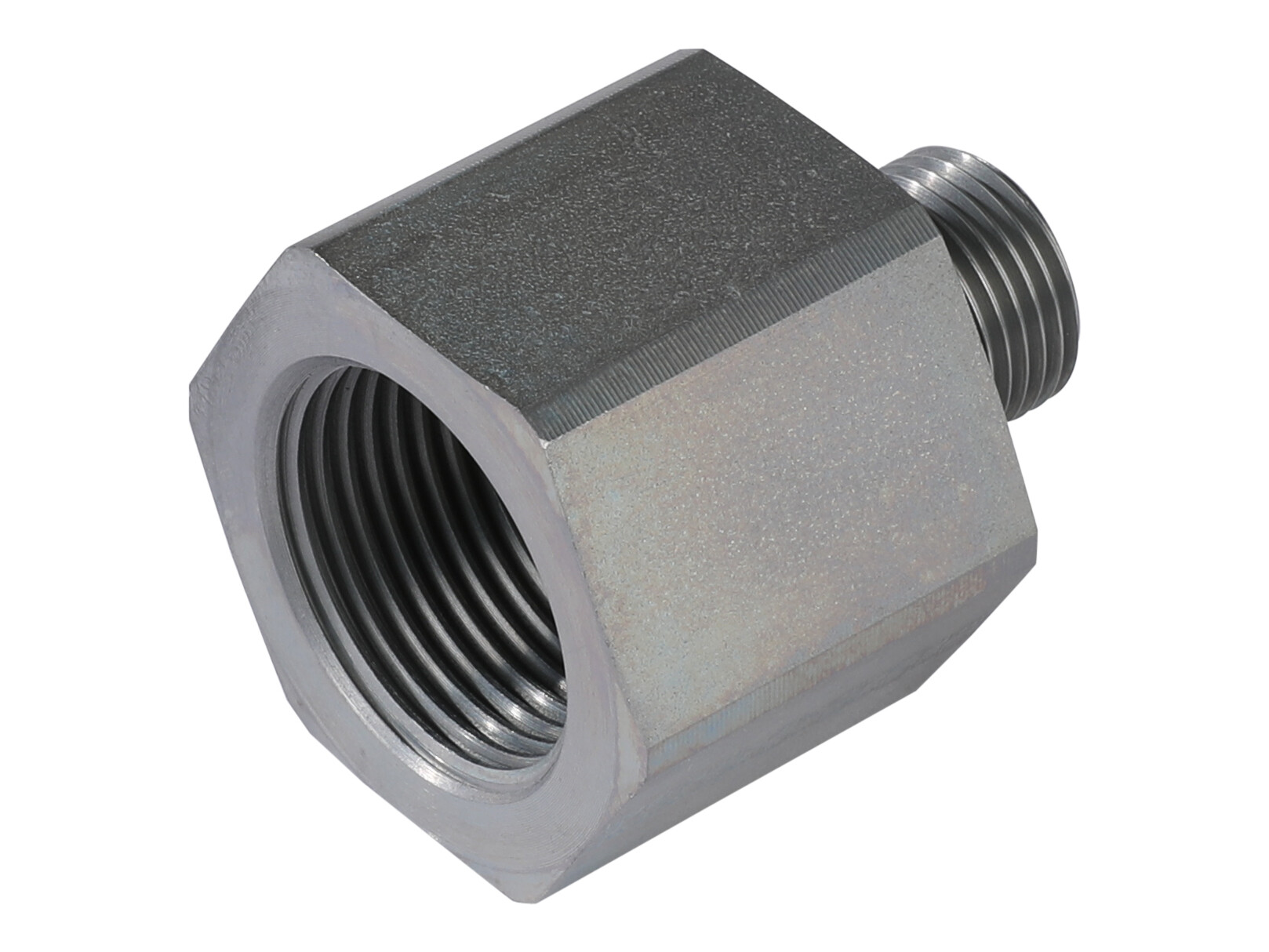

Reduction - 3/8" BSP x 3/4" BSP female - WD seal
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP) of different sizes in hydraulic lines and component ports. The connection provides a G 3/8 external thread on one side and a G 3/4 internal thread on the other side.
Sealing is via a profile sealing ring (WD) at the interface to support a defined seal in BSPP connections. The body is zinc-nickel plated and uses an NBR sealing material. Rated for pressures up to 400 bar and an operating temperature range of -35 °C to +100 °C.
Typical Applications
- Reducing a BSPP female port to a smaller BSPP male connection in hydraulic pipework
- Adapting between different BSPP thread sizes on valves, manifolds, cylinders, and other hydraulic components
Artikelnummer:
RI-38-34ED
Förpackningsstorlek:
25 pcs
Minsta beställningskvantitet:
1 pcs
D2
8 mm
Gevind indvendig
G 3/4 BSP
Gevind udvendig
G 3/8 BSP
Korrosions resistens
1200 hours salt spray DIN EN ISO 9227
L1
44 mm
L2
22 mm
Længde
44 mm
Materiale
Steel
Model kode
FI-RED-R3/8-WD-R3/4-B-W3
Mærke navn
Stauff
Overfladebehandling
Zinc-Nickel plated
Pakningsmateriale
NBR
REACH compliant
Yes
RoHs compliant
Yes
S1
36 mm
Sekskant
36 mm
Sikkerhedsfaktor
4
Temperatur maks.
+100 °C
Temperatur min.
-35 °C
Thread T1
G 3/8 BSP
Thread T2
G 3/4 BSP
Totallængde
44 mm
Tryk maks.
400 bar
Type
Long
Vinkel
0 °
i
12 mm
Förpackningsstorlek
25 pcs
Streckkod
130530
Bruttovikt
0,18 Kg
Nettovikt
0,18 Kg
Ursprungsland
DEU
Intrastat artikelkod
73071110
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP) of different sizes in hydraulic lines and component ports. The connection provides a G 3/8 external thread on one side and a G 3/4 internal thread on the other side.
Sealing is via a profile sealing ring (WD) at the interface to support a defined seal in BSPP connections. The body is zinc-nickel plated and uses an NBR sealing material. Rated for pressures up to 400 bar and an operating temperature range of -35 °C to +100 °C.
Typical Applications
- Reducing a BSPP female port to a smaller BSPP male connection in hydraulic pipework
- Adapting between different BSPP thread sizes on valves, manifolds, cylinders, and other hydraulic components
