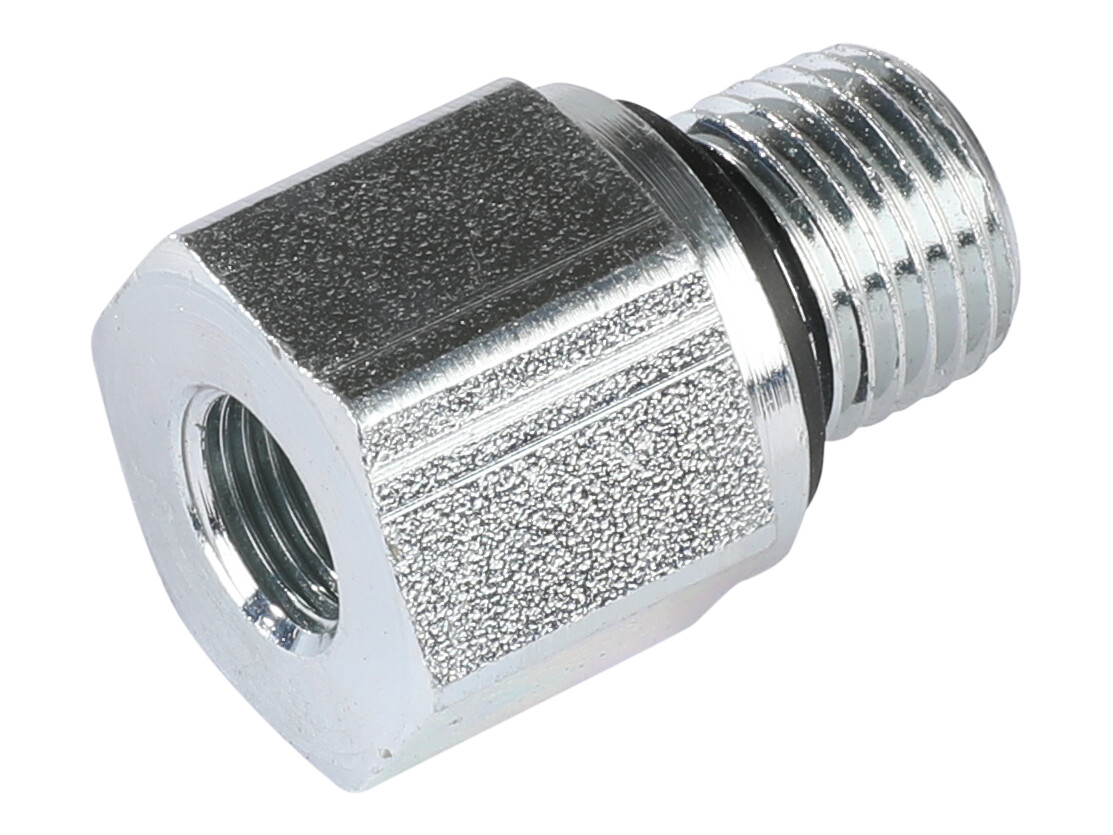

Reduction - 1/4" BSP x 1/8" BSP female - WD seal

Thread reducer for connecting components with different BSPP port sizes in hydraulic and fluid power systems. The adapter has a G 1/4 outer thread and a G 1/8 inner thread to reduce a larger BSPP connection to a smaller BSPP connection.

Sealing is via WD profile sealing ring in NBR. The steel body has a zinc-nickel plated surface. Designed for operating pressures up to 630 bar and a temperature range of -35 to +100 °C.

Typical Applications
  • Reducing a BSPP port size when connecting valves, manifolds, gauges, or hoses with G-thread interfaces
  • Hydraulic lines and auxiliary circuits where a compact BSPP male-to-female reducer is required

Artikelnummer:
RI-14-18ED

Förpackningsstorlek:
50 pcs

Minsta beställningskvantitet:
1 pcs
D2
5 mm

Gänga inv.
G 1/8 BSP

Gänga utv.
G 1/4 BSP

L1
29 mm

L2
12 mm

Längd
29 mm

Modell kod
FI-RED-R1/4-WD-R1/8-B-W3

Märke namn
Stauff

Packningsmaterial
NBR

REACH compliant
Yes

RoHs compliant
Yes

Rostbeständighet
1200 hours salt spray DIN EN ISO 9227

S1
19 mm

Sexkant
19 mm

Säkerhetsfaktor
4

Temperatur max.
+100 °C

Temperatur min.
-35 °C

Thread T1
G 1/4 BSP

Thread T2
G 1/8 BSP

Tillverkningsmaterial
Steel

Totallängd
29 mm

Tryck max.
630 bar

Typ
Long

Vinkel
0 °

Ytskiktbehandling
Zinc-Nickel plated

i
12 mm
Förpackningsstorlek
50 pcs

Streckkod
130499

Bruttovikt
0,04 Kg

Nettovikt
0,04 Kg

Ursprungsland
DEU

Intrastat artikelkod
73071110

Thread reducer for connecting components with different BSPP port sizes in hydraulic and fluid power systems. The adapter has a G 1/4 outer thread and a G 1/8 inner thread to reduce a larger BSPP connection to a smaller BSPP connection.

Sealing is via WD profile sealing ring in NBR. The steel body has a zinc-nickel plated surface. Designed for operating pressures up to 630 bar and a temperature range of -35 to +100 °C.

Typical Applications
  • Reducing a BSPP port size when connecting valves, manifolds, gauges, or hoses with G-thread interfaces
  • Hydraulic lines and auxiliary circuits where a compact BSPP male-to-female reducer is required
