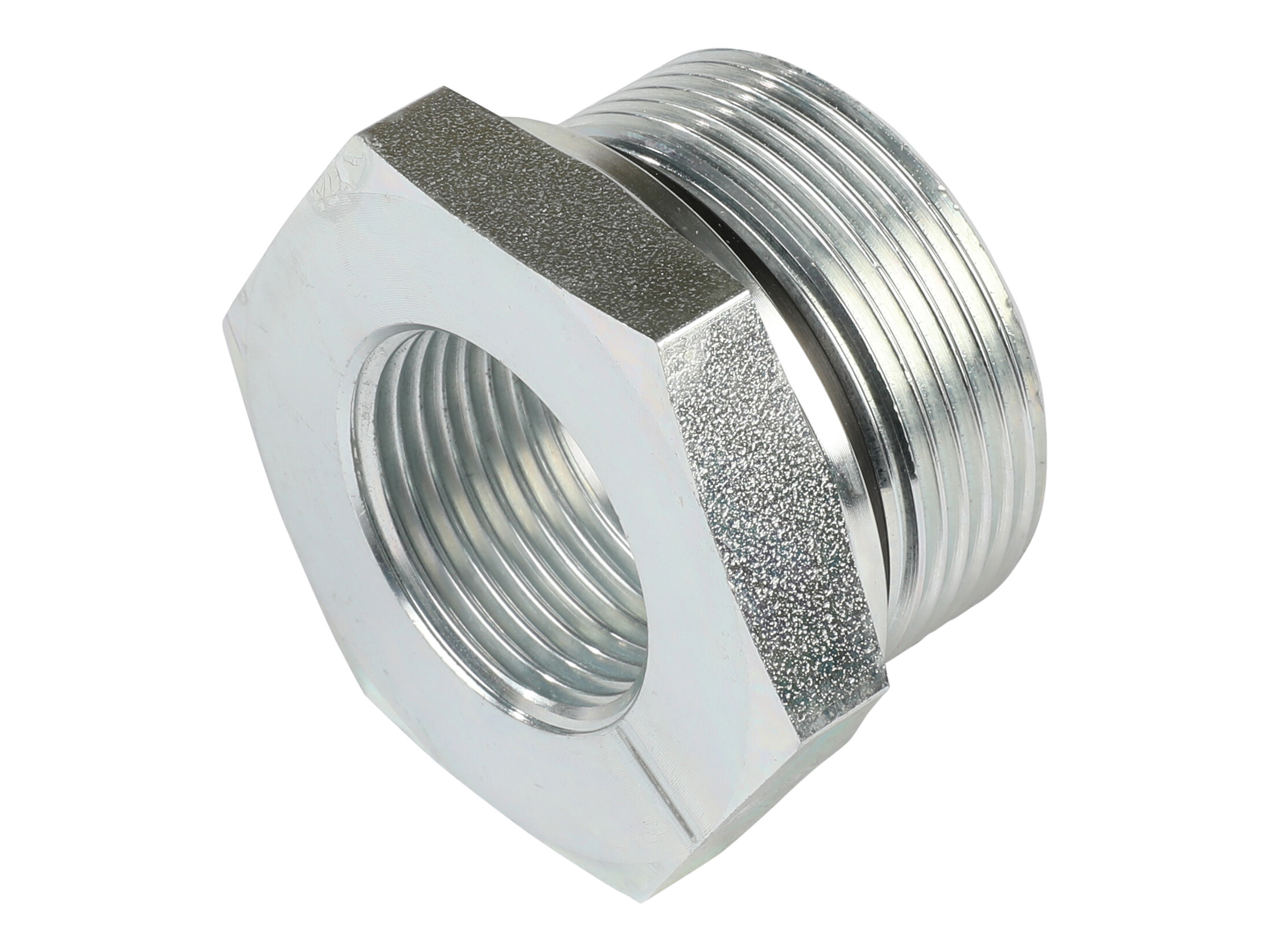

Reduction - 1.1/2" BSP x 1" BSP female - WD seal
Reduction - 1.1/2" BSP x 1" BSP female - WD seal
Partnumber:
RI-112-1ED
Package size:
15 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Dimension L1
36 mm
Dimension L2
18.5 mm
Dimension S1
55 mm
Dimension i
22 mm
Hexagon
55 mm
Length
36 mm
Material
Steel
Model code
FI-RED-R1-1/2-WD-R1-B-W3
Pressure max.
315 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 1.1/2 BSP
Thread T2
G 1 BSP
Thread inner
G 1 BSP
Thread outer
G 1.1/2 BSP
Total length
36 mm
Type
Short
Pakke str.
15 st
Stregkode
130466
Brutto vægt
0,34 Kg
Netto vægt
0,34 Kg
Oprindelsesland
DEU
Intrastat varekode
73071110
Reduction - 1.1/2" BSP x 1" BSP female - WD seal
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
