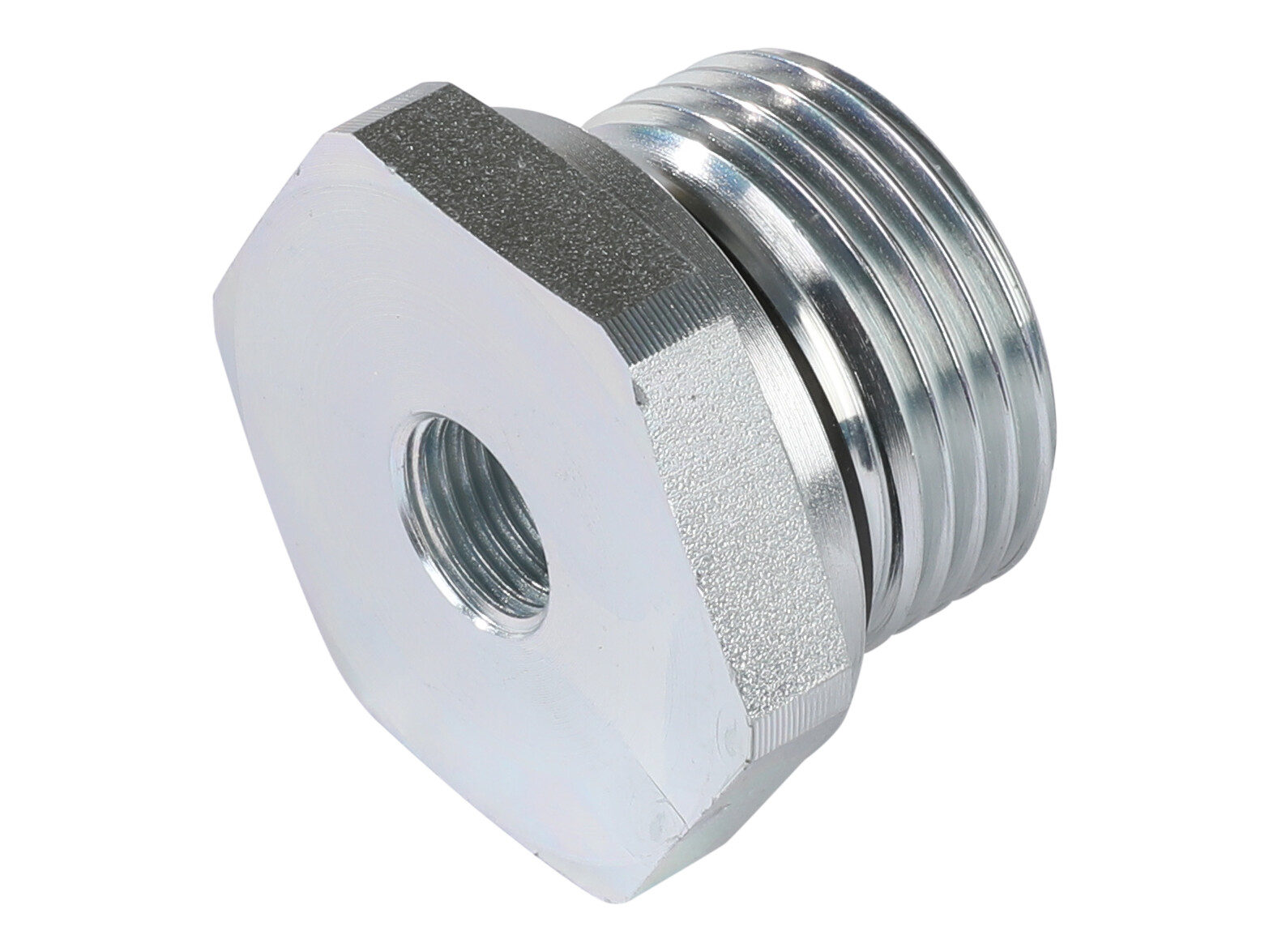

Reduction - 1" BSP x 1/4" BSP female - WD seal
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP) in a hydraulic line or component port. The male G 1 side connects to a larger BSPP female port, while the G 1/4 female side provides a smaller BSPP connection point.
The WD sealing design uses an NBR profile sealing ring to create a seal at the threaded interface. Zinc-nickel plated surface treatment and specified corrosion resistance support use in demanding environments.
Typical Applications
- Reducing a BSPP port size on hydraulic components, manifolds, or pipework
- Adapting between BSPP connection sizes during assembly or retrofit of hydraulic lines
Artikelnummer:
RI-1-14ED
Förpackningsstorlek:
20 pcs
Minsta beställningskvantitet:
1 pcs
Diameter rør
0 mm
Gevind indvendig
G 1/4 BSP
Gevind udvendig
G 1 BSP
Korrosions resistens
1200 hours salt spray DIN EN ISO 9227
L1
29 mm
L2
12,5 mm
Længde
29 mm
Materiale
Steel
Model kode
FI-RED-R1-WD-R1/4-B-W3
Mærke navn
Stauff
Overfladebehandling
Zinc-Nickel plated
Pakningsmateriale
NBR
REACH compliant
Yes
RoHs compliant
Yes
S1
41 mm
Sekskant
41 mm
Sikkerhedsfaktor
4
Temperatur maks.
+100 °C
Temperatur min.
-35 °C
Thread T1
G 1 BSP
Thread T2
G 1/4 BSP
Totallængde
29 mm
Tryk maks.
400 bar
Type
Short
Vinkel
0 °
i
18 mm
Package size
20 pcs
Barcode
130457
Gross weight
0,19 Kg
Net weight
0,19 Kg
Country of origin
DEU
Intrastat code
73071110
Thread reducer for adapting between two Whitworth parallel pipe threads (BSPP) in a hydraulic line or component port. The male G 1 side connects to a larger BSPP female port, while the G 1/4 female side provides a smaller BSPP connection point.
The WD sealing design uses an NBR profile sealing ring to create a seal at the threaded interface. Zinc-nickel plated surface treatment and specified corrosion resistance support use in demanding environments.
Typical Applications
- Reducing a BSPP port size on hydraulic components, manifolds, or pipework
- Adapting between BSPP connection sizes during assembly or retrofit of hydraulic lines
Note: Opening 3D files requires a program that supports the file format
