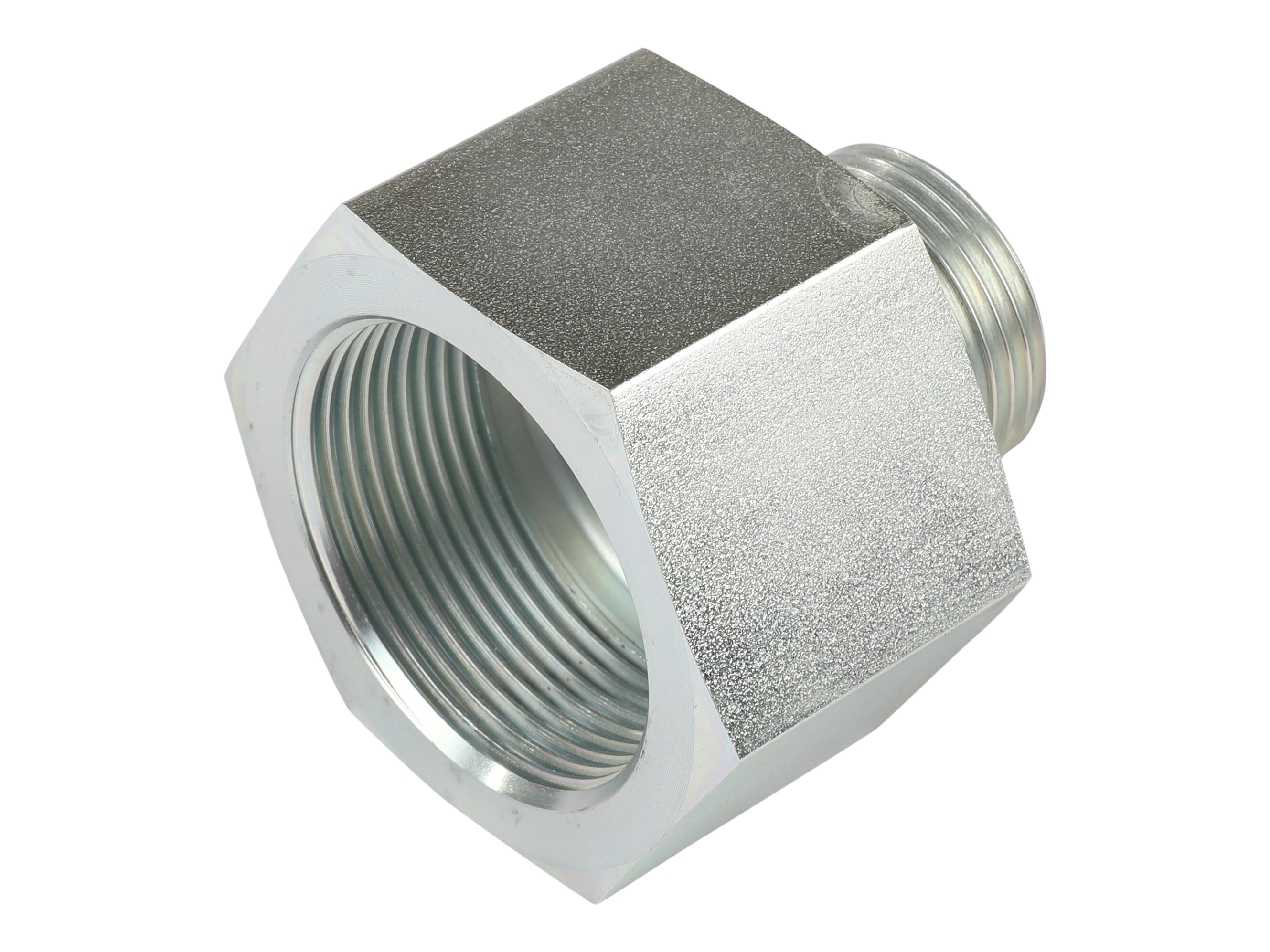

Reduction - 1" BSP x 11/2" BSP female - WD seal
Reduction - 1" BSP x 11/2" BSP female - WD seal
Partnumber:
RI-1-112ED
Package size:
10 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm
Dimension D2
20 mm
Dimension L1
59 mm
Dimension L2
28.5 mm
Dimension S1
60 mm
Dimension i
18 mm
Hexagon
60 mm
Length
59 mm
Material
Steel
Model code
FI-RED-R1-WD-R1-1/2-B-W3
Pressure max.
315 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 1 BSP
Thread T2
G 1.1/2 BSP
Thread inner
G 1.1/2 BSP
Thread outer
G 1 BSP
Total length
59 mm
Type
Long
Package size
10 st
Barcode
130451
Gross weight
0,56 Kg
Net weight
0,56 Kg
Country of origin
DEU
Intrastat code
73071110
Reduction - 1" BSP x 11/2" BSP female - WD seal
