Adapter Rak, Utv-ORFS, Utv-G-ED
\ufeff
-

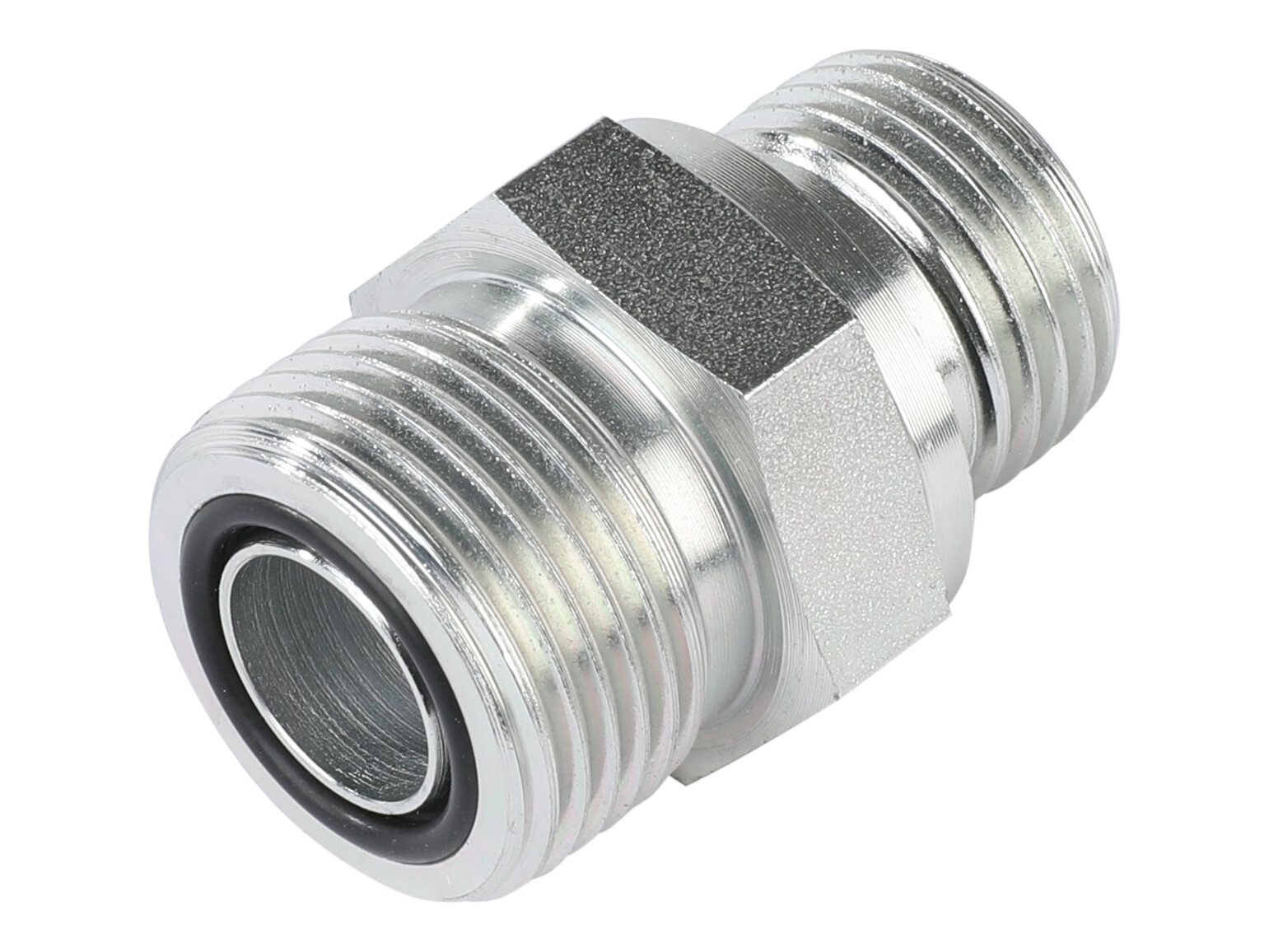

ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Varenummer:
OFGE-24-24ED
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
A
57.5 mm
Angle
0 °
B
17.5 mm
Brand Name
FOR
CH
55 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
22 mm
F
2-12 ORFS
F1
G 1.1/2 BSP
Material
Steel
Pressure max.
300 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
35-38 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
2-12 ORFS
Thread outer
G 1.1/2 BSP
Pakke str.
1 pcs
Stregkode
134166
Brutto vægt
0,538 Kg
Netto vægt
0,538 Kg
Oprindelsesland
ita
\ufeff
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
