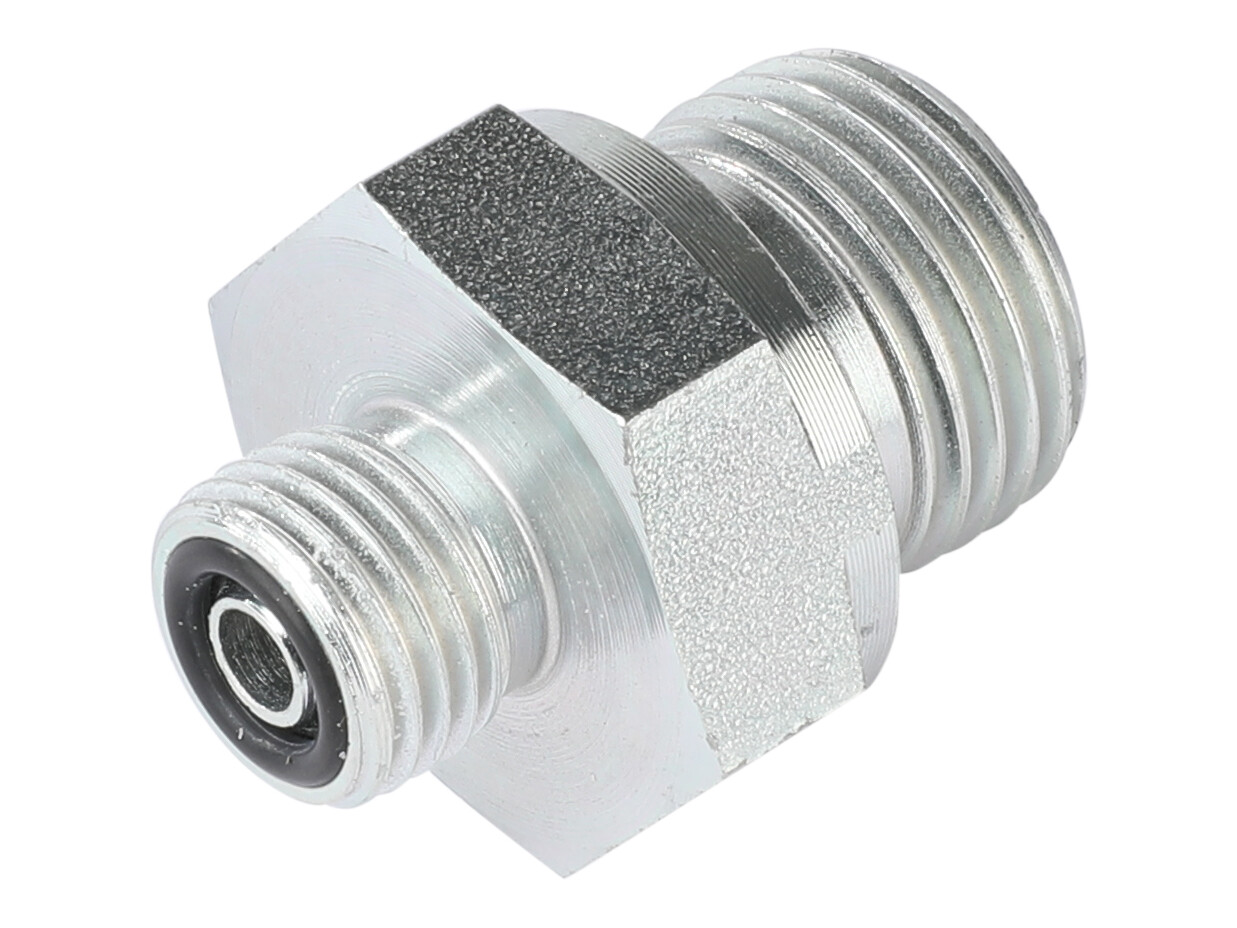

Adaptor 1/2 BSPx9/16 ORFS
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
OFGE-04-08ED
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
A
35,5 mm
Angle
0 °
B
10 mm
Brand Name
FOR
CH
27 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
14 mm
F
9/16-18 ORFS
F1
G 1/2 BSP
Material
Steel
Pressure max.
630 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
6 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 ORFS
Thread outer
G 1/2 BSP
Package size
1 pcs
Barcode
290971
Gross weight
0,01 Kg
Net weight
0,01 Kg
Country of origin
ITA
Intrastat code
73071110
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Note: Opening 3D files requires a program that supports the file format
