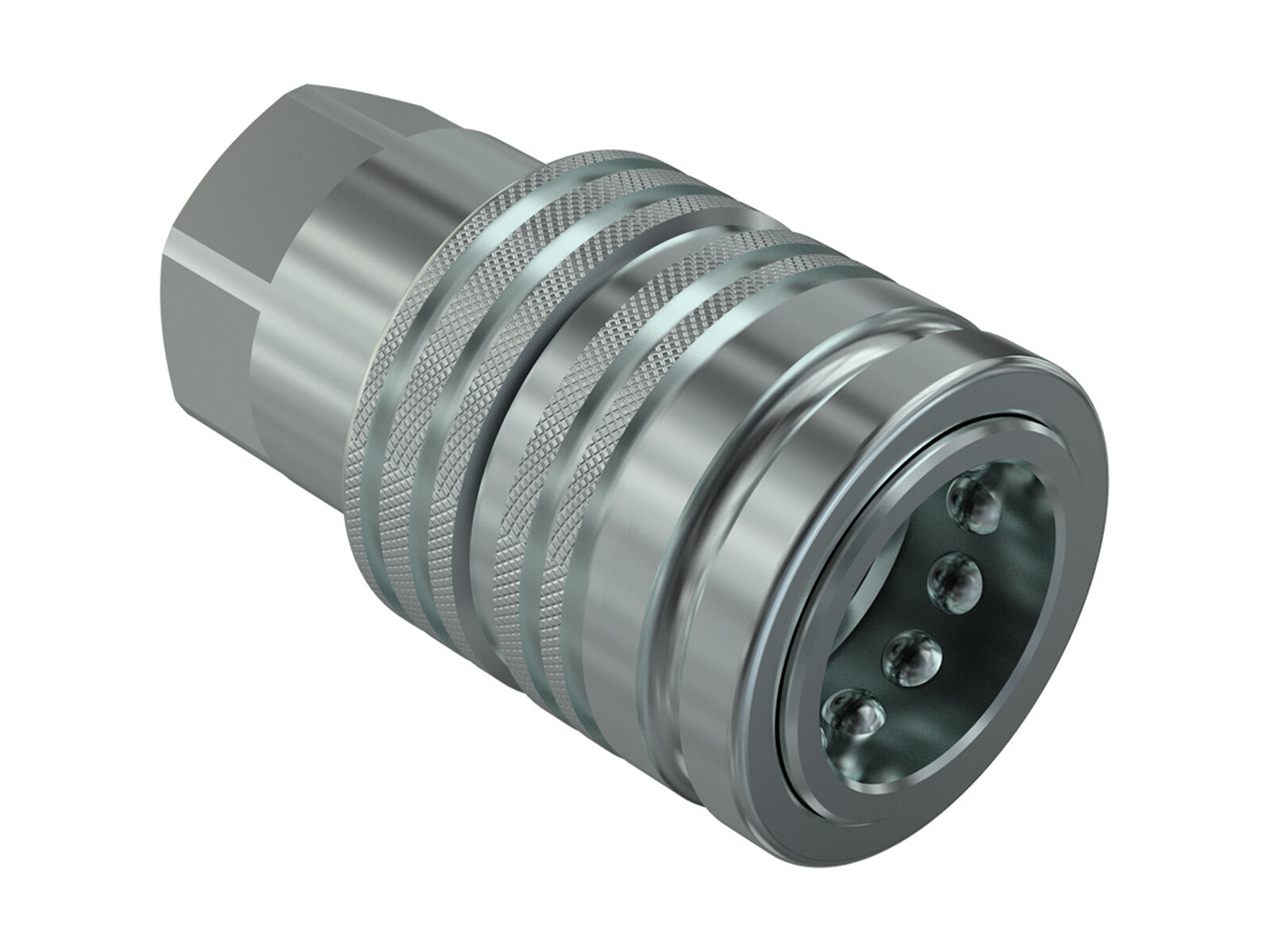

Coupling male NV - DN20 - 3/4"BSP
Standard quick coupler
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut off system: ball valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
Partnumber:
NV34GASM
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Faster
Corrosion resistance
500 hours salt spray ISO 9227
DN
20 mm
Dimension C
54 mm
Dimension D1
38 mm
Dimension D3
27.9 mm
Dimension E
G 3/4 BSP
Dimension H
28 mm
Dimension L1
55 mm
Dimension Y
34 mm
Field of application
Agriculture, Industry
Flow rate nominal LMin
150 lpm
Hexagon
34 mm
ISO size
20
Material
Steel
Model code
NV 34 GAS M
Pressure max.
300 bar
Pressurized connection
Not allowed
Sealing material
NBR
Size
3/4 "
Standard ISO
ISO 1179-1
Surface treatment
MATE 500 (CrIII)
Temperature max.
+125 °C
Temperature min.
-25 °C
Thread inner
G 3/4 BSP
Package size
1 st
Barcode
332587
Gross weight
0,17 Kg
Net weight
0,17 Kg
Country of origin
ITA
Intrastat code
84812010
Standard quick coupler
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut off system: ball valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
