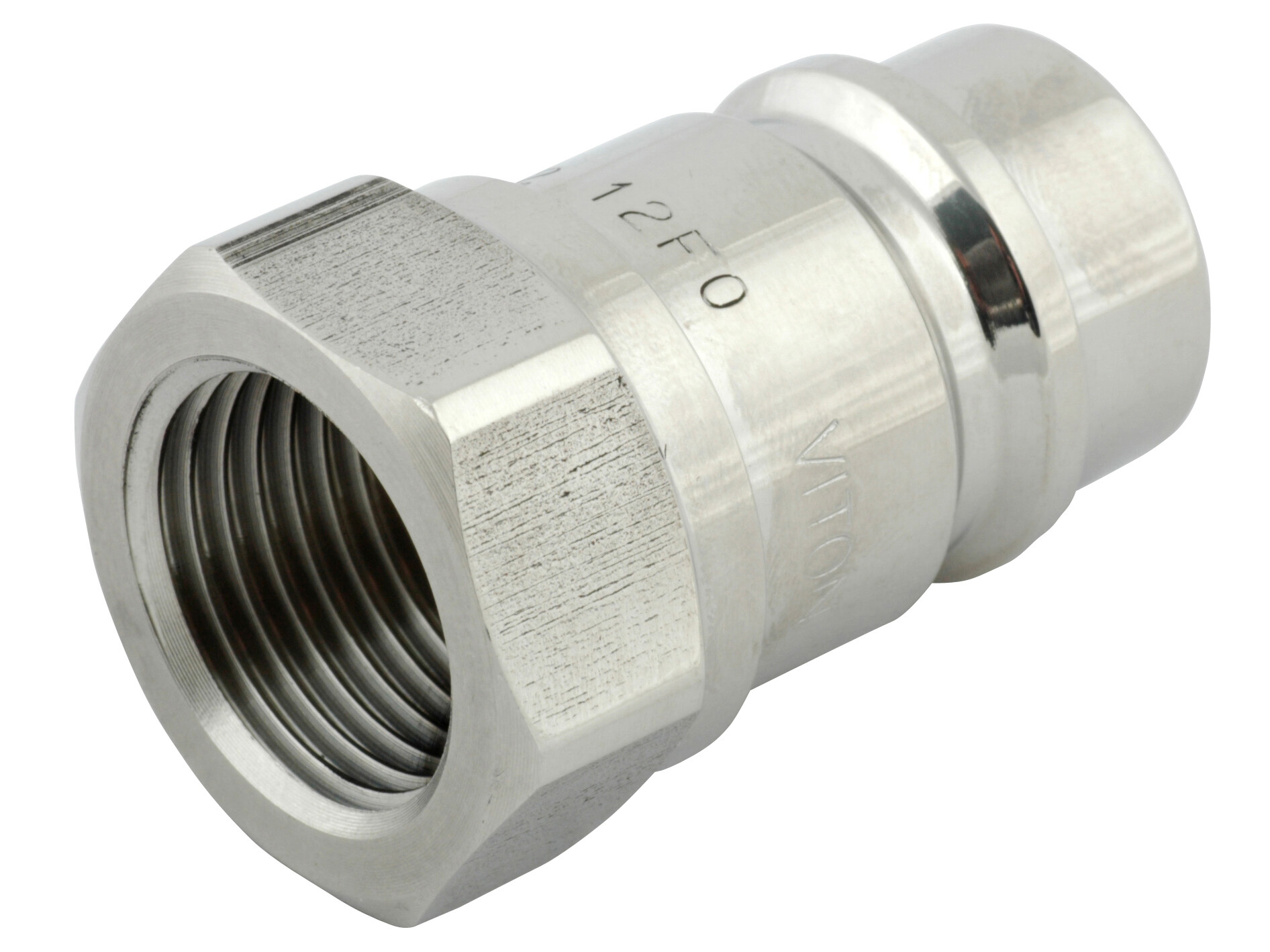

Coupling male NV (ISO-A) - DN12 - 1/2"BSP - AISI316
Standard quick coupler
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut off system: ball valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
Varenummer:
NV12GASM2
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
C
44 mm
DN
12.5 mm
E
G 1/2 BSP
Flödeshastighet nominell LMin
75 lpm
Gänga inv.
G 1/2 BSP
H
20,5 mm
ISO storlek
12.5
Modell kod
NV 12 GAS M 2V
Märke namn
Faster
Packningsmaterial
FKM/FPM (Viton®)
Standard ISO
ISO 7241-1-A
Storlek
1/2 "
Temperatur max.
+200 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Stainless steel
Tryck max.
300 bar
Typ
Poppet
Y
27 mm
Package size
1 st
Barcode
332580
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
ITA
Intrastat code
84812010
Standard quick coupler
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut off system: ball valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
