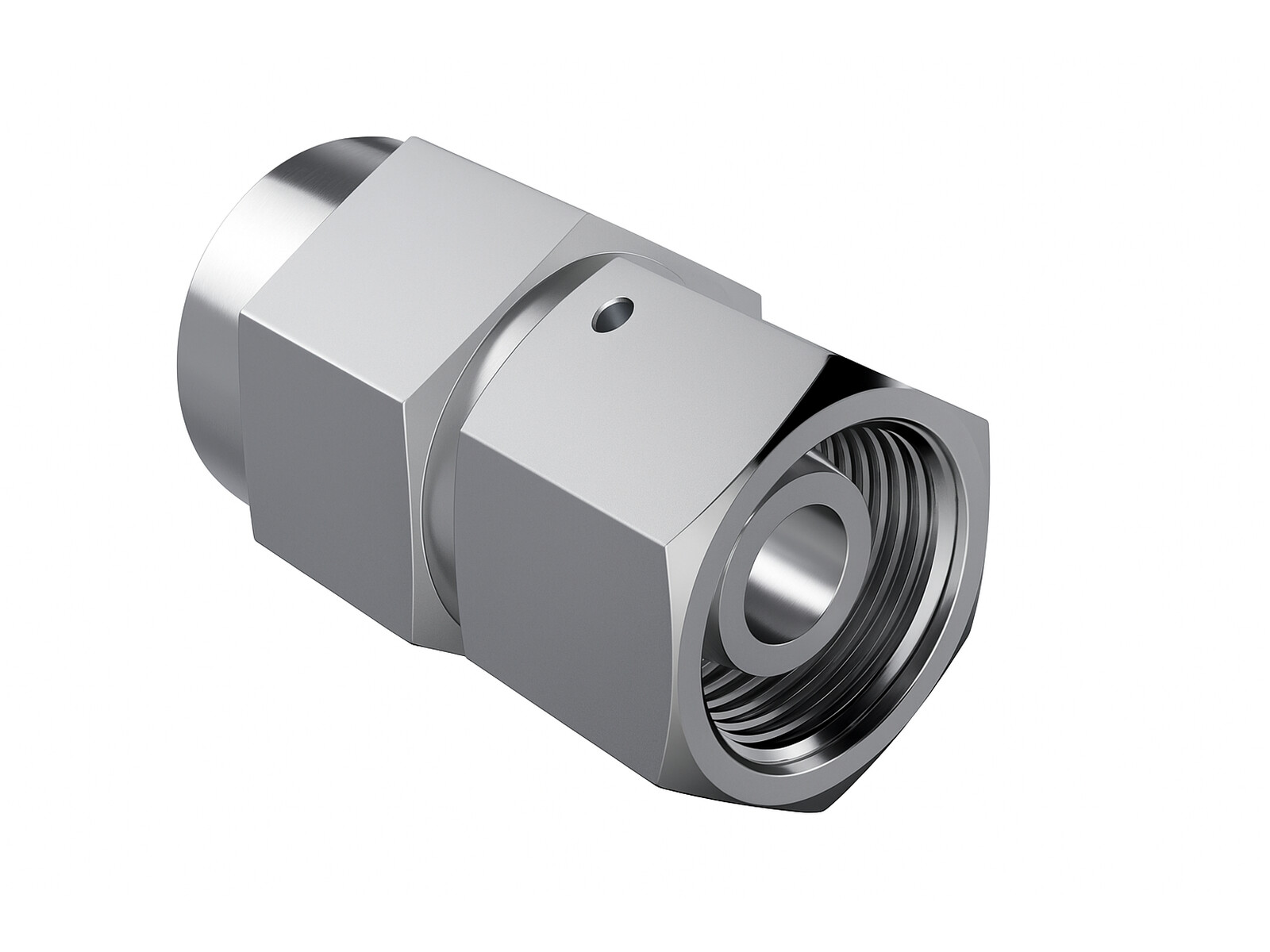

Manometeradapter Ställbar Inv-G1/4'', Syrafast
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4.5%.
+50° C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300 °C - +400°C = 33%.
Partnumber:
MAVE10LR-SY
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Volz
Diameter flange
63.5 mm
Diameter pipe
10 mm
Dimension D2
3.5 mm
Dimension L1
35.9 mm
Dimension L2
21.4 mm
Dimension L3
14.5 mm
Dimension L4
4.5 mm
Dimension S1
19 mm
Dimension S2
19 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
MAVD 10L R1/4
O-ring
47,22X3,53 mm
Pressure max.
315 bar
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Temperature max.
+200 °C
Temperature min.
-20 °C
Thread T1
G 1/4 BSP
Thread T2
M16x1,5 mm
Thread inner
G 1/4 BSP
Thread inner metric
M16x1,5
Package size
1 st
Barcode
197550
Gross weight
0,07 Kg
Net weight
0,07 Kg
Country of origin
deu
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4.5%.
+50° C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300 °C - +400°C = 33%.
