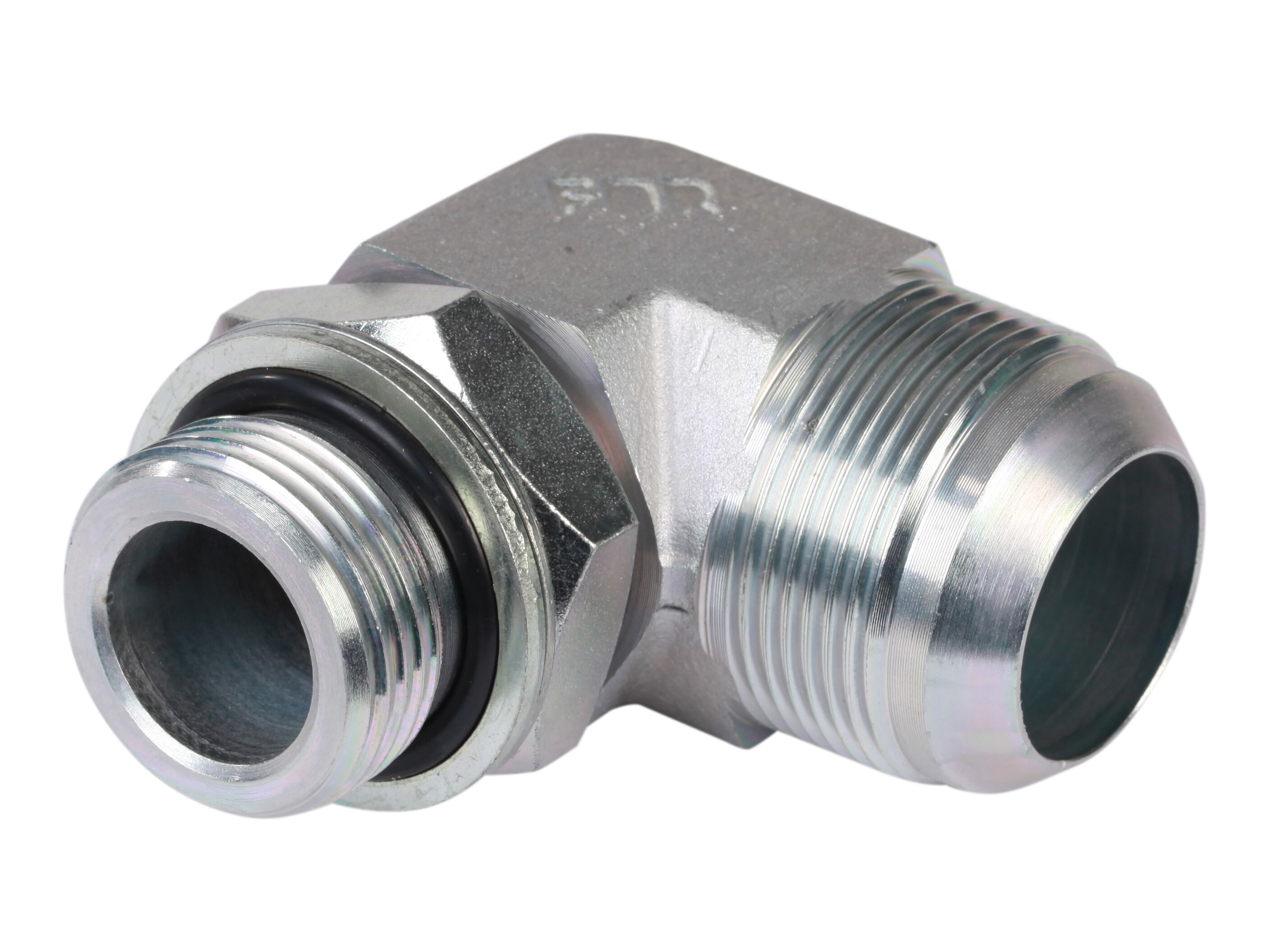

S600-30-33G elbow
S600-30-33G elbow
Partnumber:
JWEE-20-16
Package size:
10 st
Min. order quantity is:
1 st
Angle
90 °
Brand Name
Hydraspecma
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
32 mm

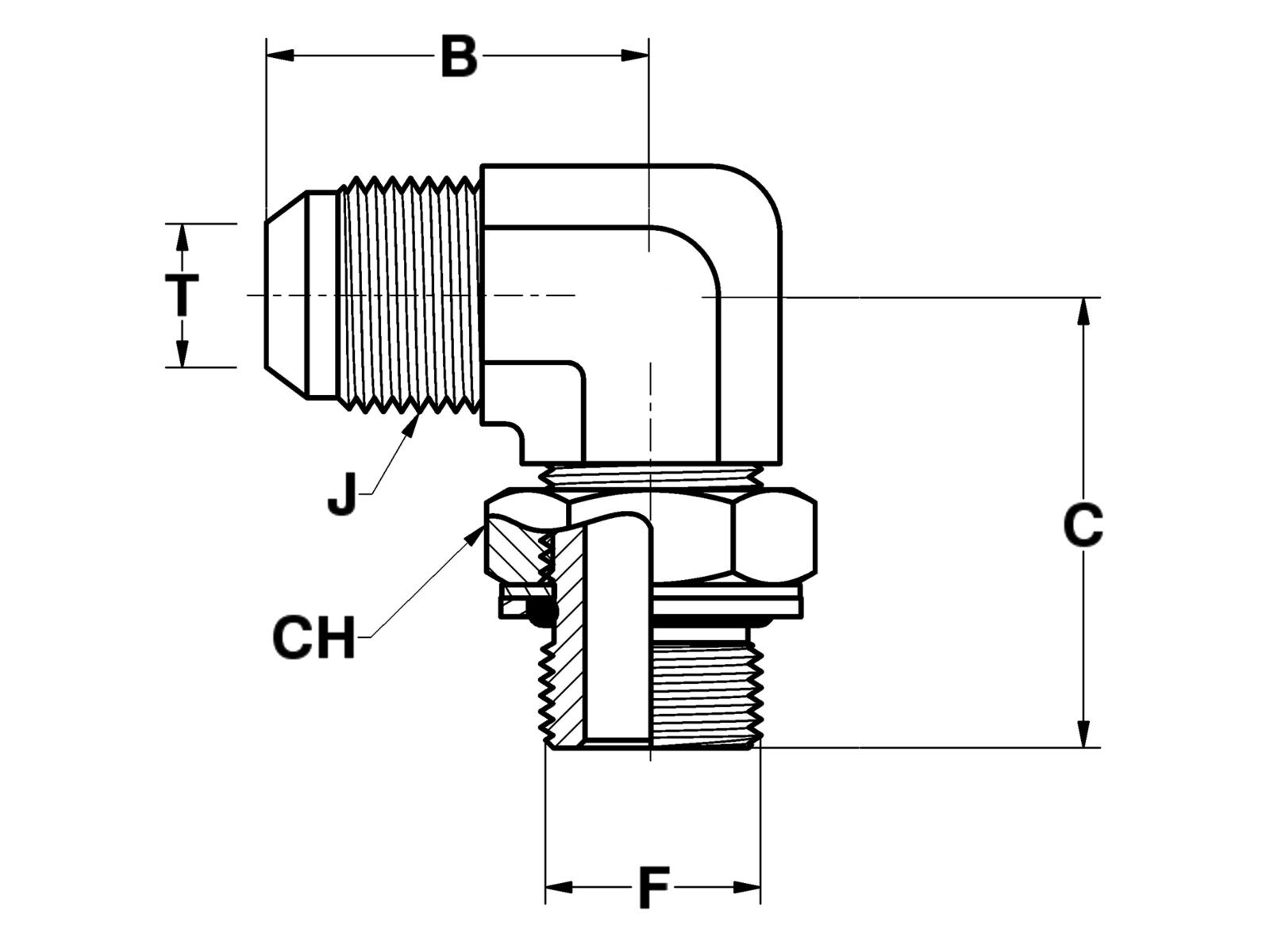

Dimension B
52 mm
Dimension C
57 mm
Dimension CH
41 mm
Dimension F
G 1 BSP
Dimension J
1.5/8-12 JIC
Dimension T
32 mm
Material
Steel
Pressure max.
240 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
1.5/8-12 JIC
Thread outer
G 1 BSP
Package size
10 st
Barcode
129934
Gross weight
0,64 Kg
Net weight
0,64 Kg
Country of origin
ITA
Intrastat code
73071110
S600-30-33G elbow
