S665-16-45U bulkhead elbow
S665-16-45U bulkhead elbow
Partnumber:
JVSV-10
Package size:
1 pcs
Min. order quantity is:
1 pcs
Angle
45 °
B
28 mm
Brand Name
Hydraspecma
C
55 mm
CH
30 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
38,5 mm
Diameter pipe
16 mm
J
7/8-14 JIC

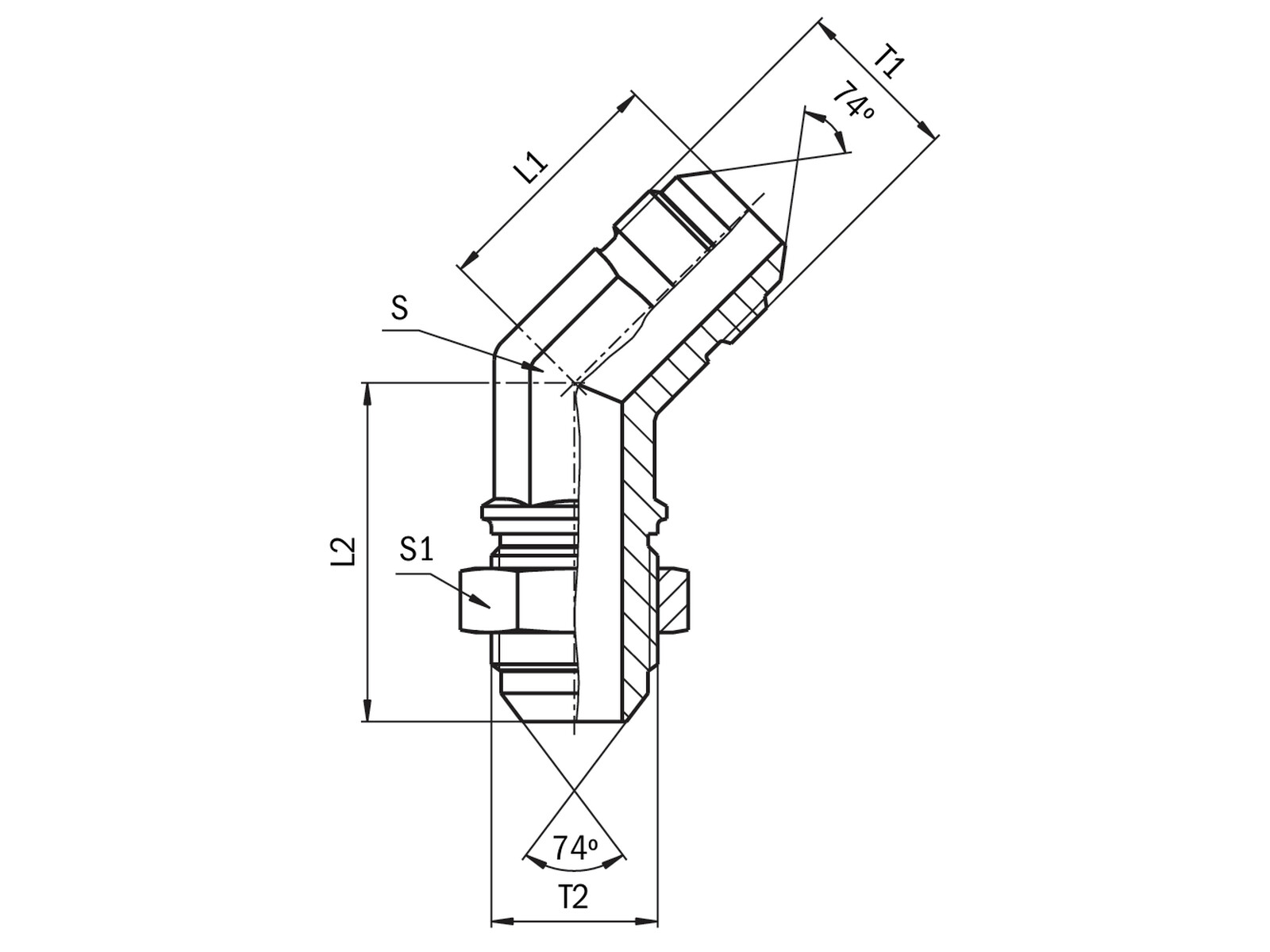

L1
28,,2 mm
L2
55,1 mm
Material
Steel
Model code
10MJ-10MJBKHD45
Pressure max.
240 bar
S
22 mm
S1
30 mm
Surface treatment
Electro-galvanized / White chromatized
T
16 mm
T1
7/8-14 JIC
T2
7/8-14 JIC
Thread outer
7/8-14 JIC
Package size
1 pcs
Barcode
144286
Gross weight
0,18 Kg
Net weight
0,18 Kg
Country of origin
ITA
Intrastat code
73071110
S665-16-45U bulkhead elbow
