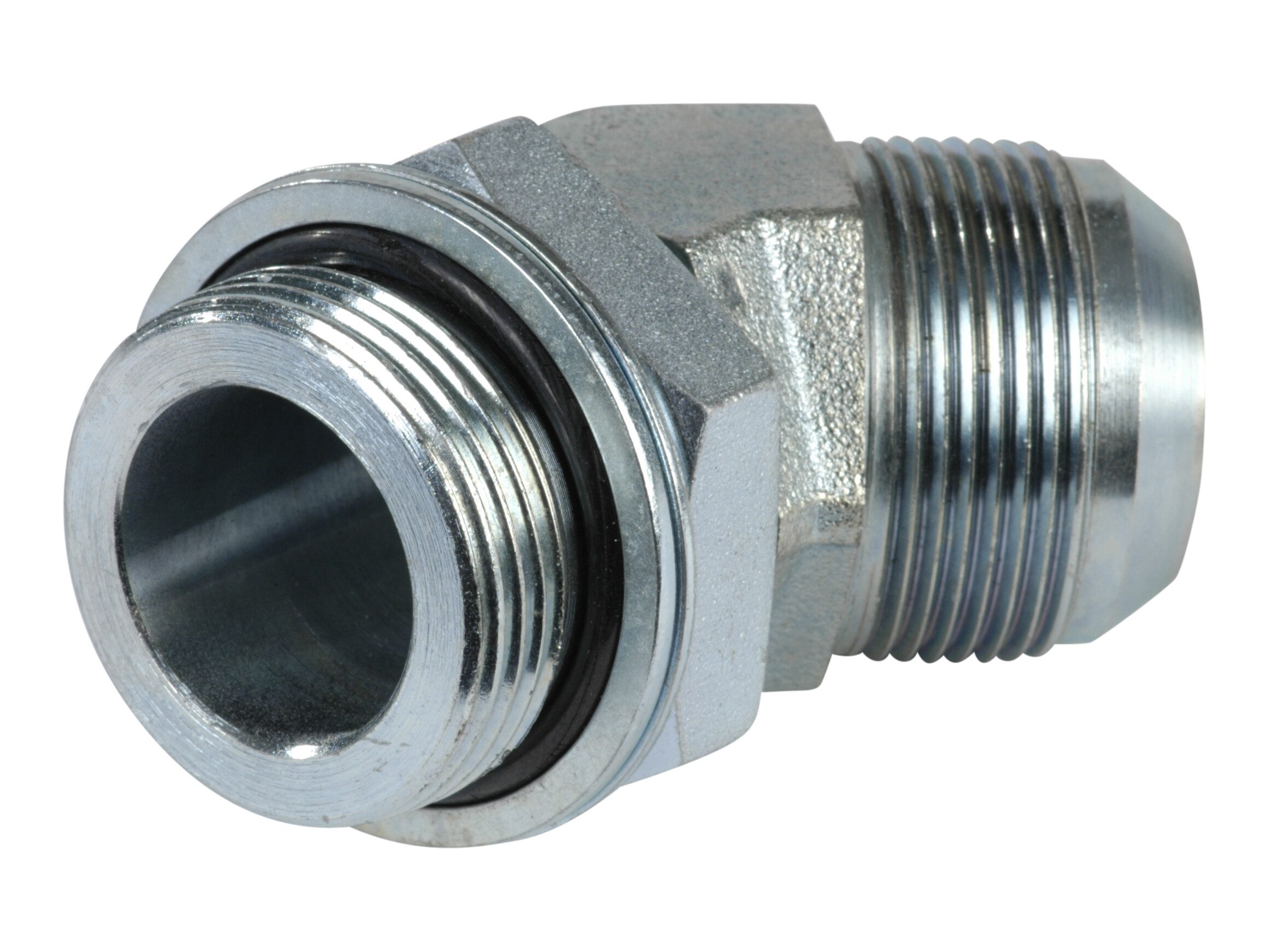

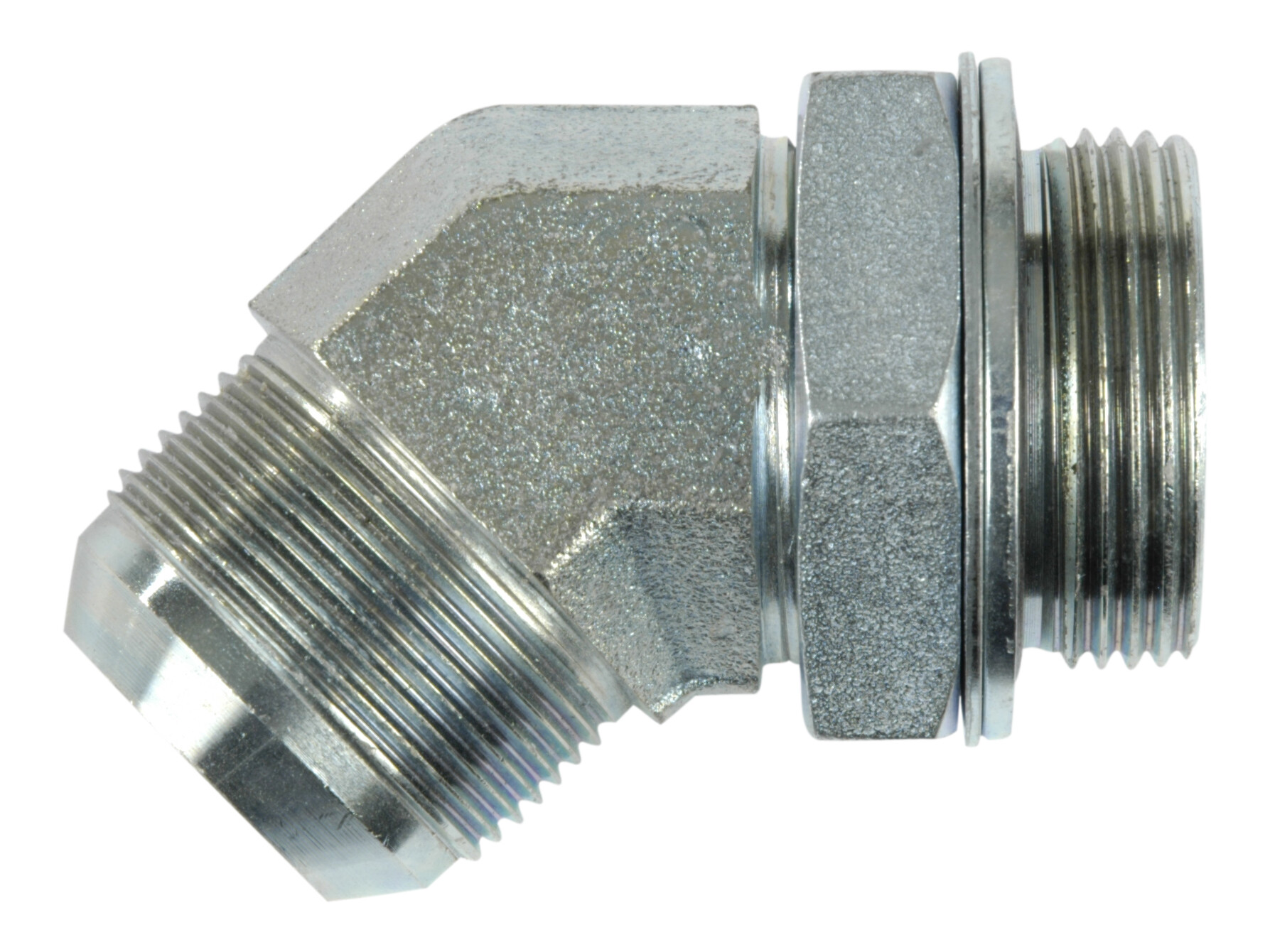

S615-30-42G elbow BSP
\ufeff
-
JIC 37° 45° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
JVEE-20-20
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs

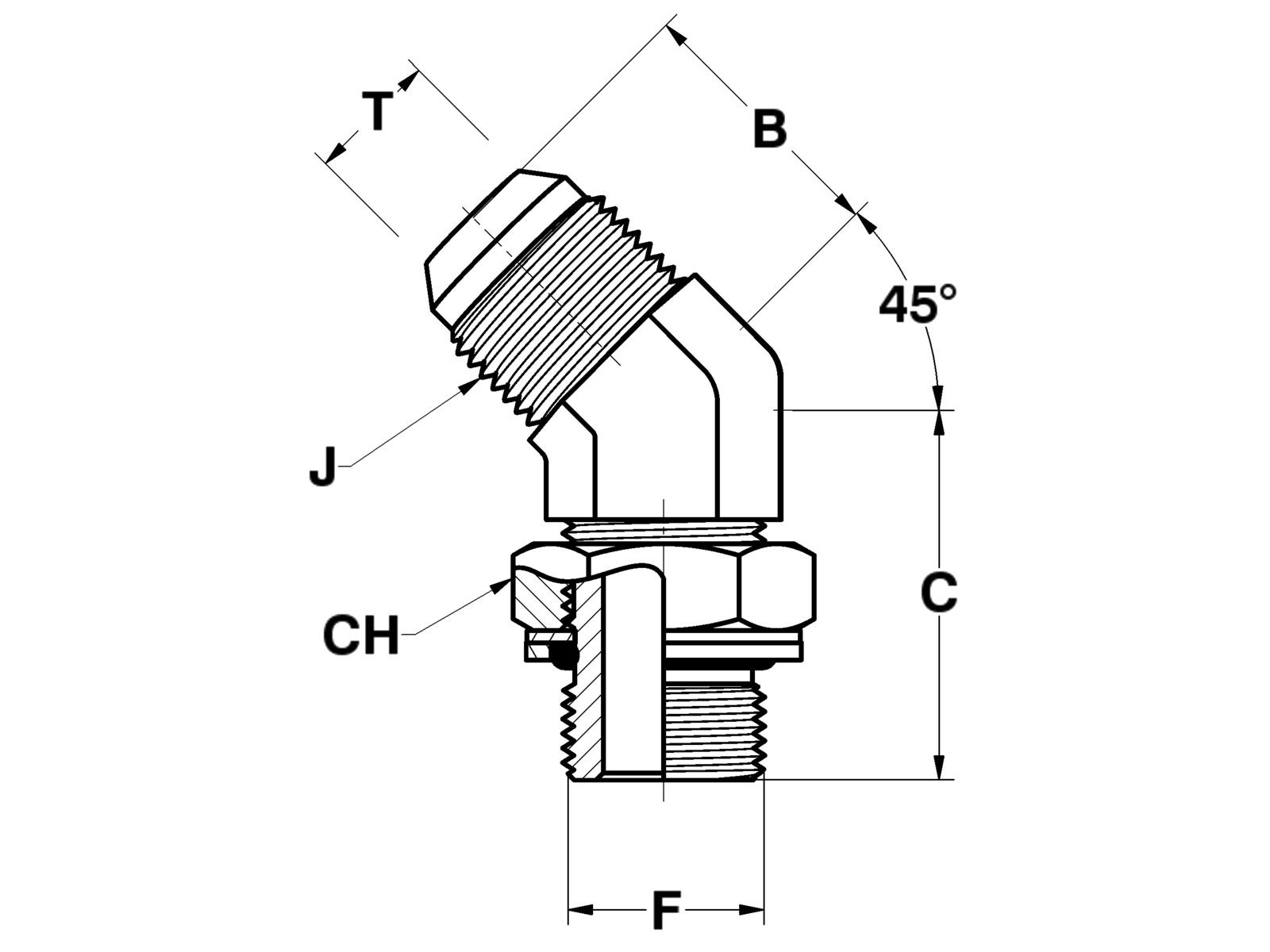

B
40,5 mm
C
48,5 mm
CH
50 mm
Diameter rör
32 mm
F
G 1.1/4 BSP
Gänga utv.
1.5/8-12 JIC
Gänga utv.
G 1.1/4 BSP
J
1.5/8-12 JIC
Märke namn
FOR
Packningsmaterial
NBR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
Standard ISO
ISO 1179
T
32 mm
Temperatur max.
+120 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Steel
Tryck max.
210 bar
Vinkel
45 °
Ytskiktbehandling
Electro-galvanized / White chromatized
Package size
1 pcs
Barcode
144218
Gross weight
0,57 Kg
Net weight
0,57 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° 45° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
