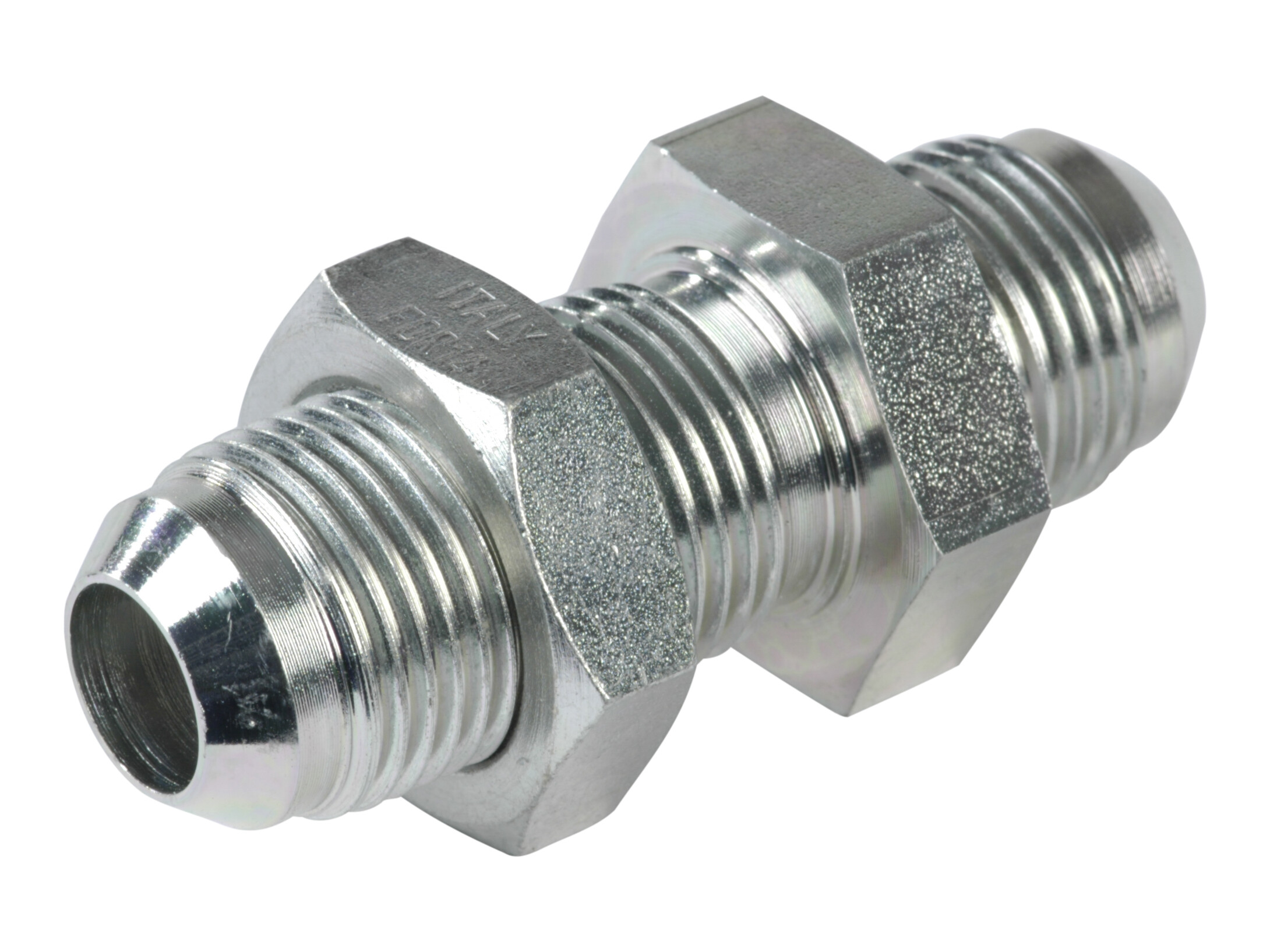

S250-16L bulkhead connection

Partnumber:

JSV-10

Package size:

15 st

Min. order quantity is:

1 st

Accessories (2)

Bushing Ø16

Partnumber: JD-16

Mutter, UNF-7/8''-14

Partnumber: JM-10-16

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

16 mm

Dimension A

69.5 mm

Dimension B

19.5 mm

Dimension CH

30 mm

Dimension CH1

30 mm

Dimension D

41 mm

Dimension J

7/8-14 JIC

Dimension J1

7/8-14 JIC

Dimension T

16 mm

Dimension T1

16 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

7/8-14 JIC

Package size

15 st

Barcode

144116

Gross weight

0,17 Kg

Net weight

0,17 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S250-16L bulkhead connection

Note: Opening 3D files requires a program that supports the file format
