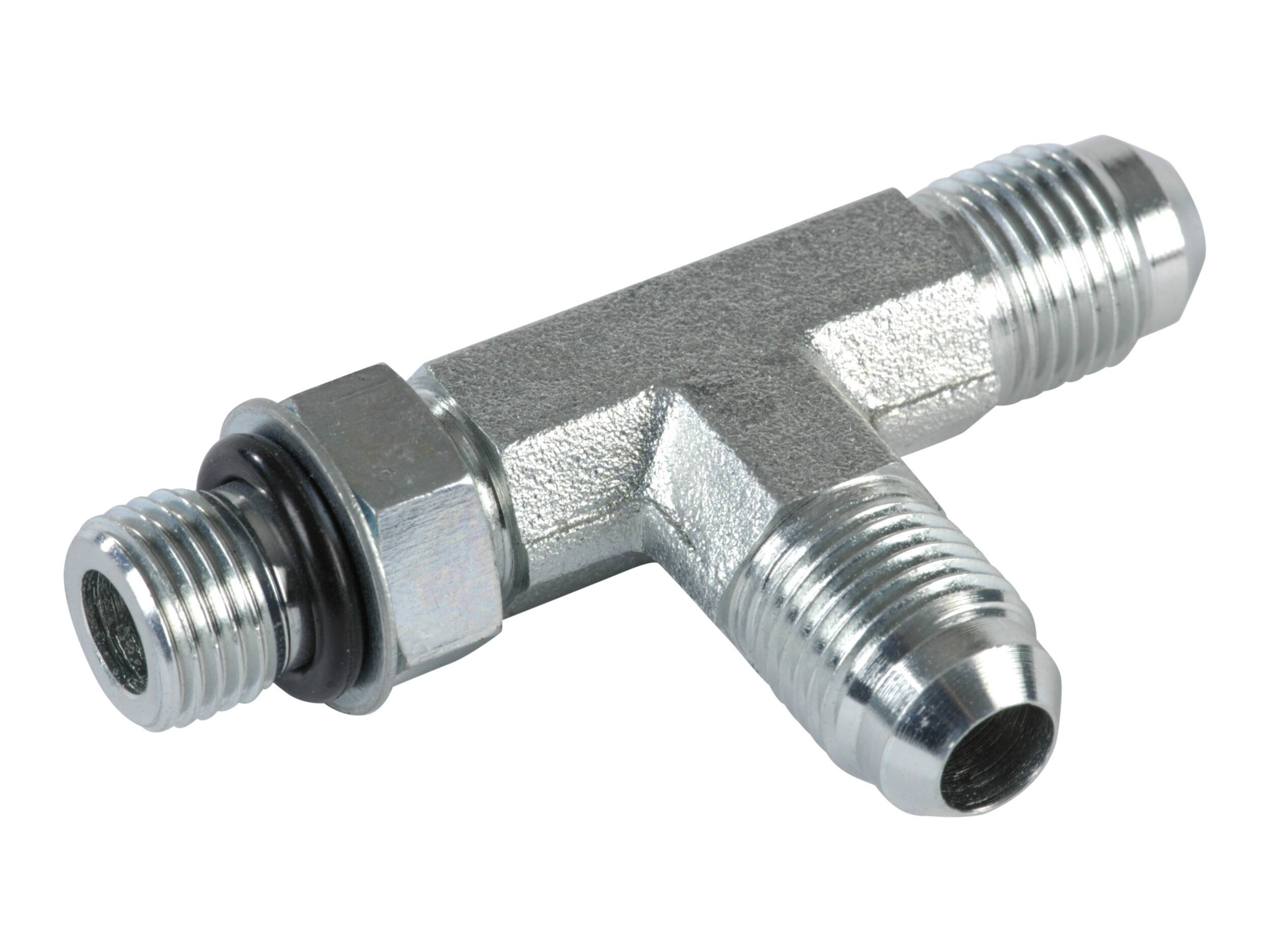

S605-10-13G barrel Tee BSP

Partnumber:

JLEE-06-04

Package size:

5 st

Min. order quantity is:

1 st

Accessories (2)

Bushing Ø10

Partnumber: JD-10

Mutter, UNF-9/16''-18, NV=19

Partnumber: JM-06-10

Specifications
Dimensions and shipping

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

Dimension B

27 mm

Dimension B1

27 mm

Dimension C

31.5 mm

Dimension CH

19 mm

Dimension F

G 1/4 BSP

Dimension J

9/16-18 JIC

Dimension J1

9/16-18 JIC

Dimension T

10 mm

Dimension T1

10 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

9/16-18 JIC

Thread outer

G 1/4 BSP

Package size

5 st

Barcode

144038

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S605-10-13G barrel Tee BSP
