Adapter Rak, Utv-JIC, Utv-M
\ufeff
-
JIC 37° external thread straight basic connector
- External thread metric
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 9974 - for threaded ports
- Operating temperature -20° to +120°
Varenummer:
JGEM-06-22-L10
Pakke str.:
5 st
Min. bestillingsenhed er:
5 st

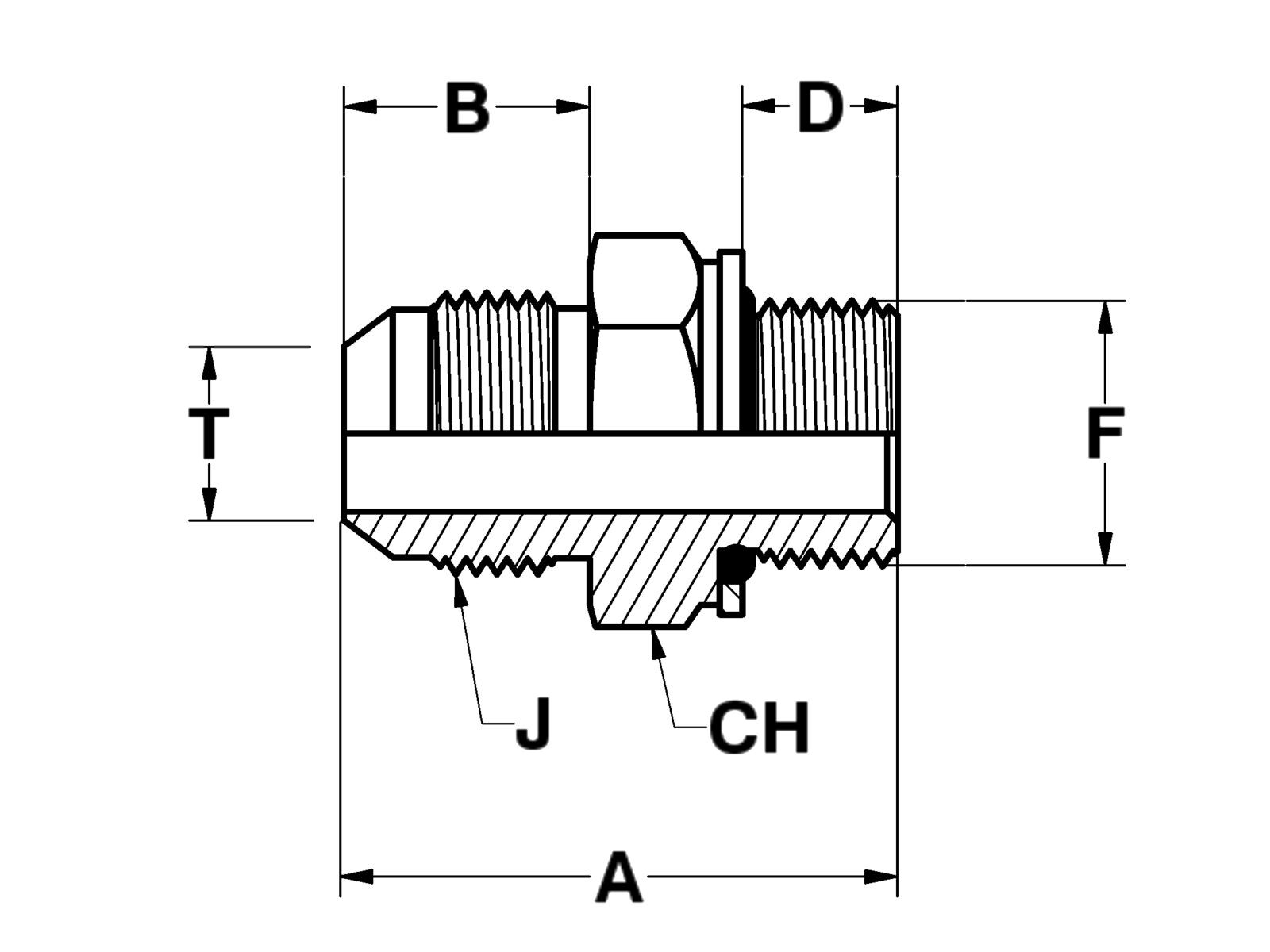

A
38,5 mm
Angle
0 °
B
14 mm
Brand Name
FOR
CH
27 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
13,5 mm
Diameter pipe
10 mm
Dimension F metric
M22x1,5
J
9/16-18 JIC
Material
Steel
Model code
SA102067/1022
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 9974
Surface treatment
Electro zinc plated
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer metric
M22x1,5
Pakke str.
5 st
Stregkode
194204
Brutto vægt
0,088 Kg
Netto vægt
0,088 Kg
Oprindelsesland
ita
\ufeff
-
JIC 37° external thread straight basic connector
- External thread metric
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 9974 - for threaded ports
- Operating temperature -20° to +120°
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
