S685-25TG Tee with nut
\ufeff
-

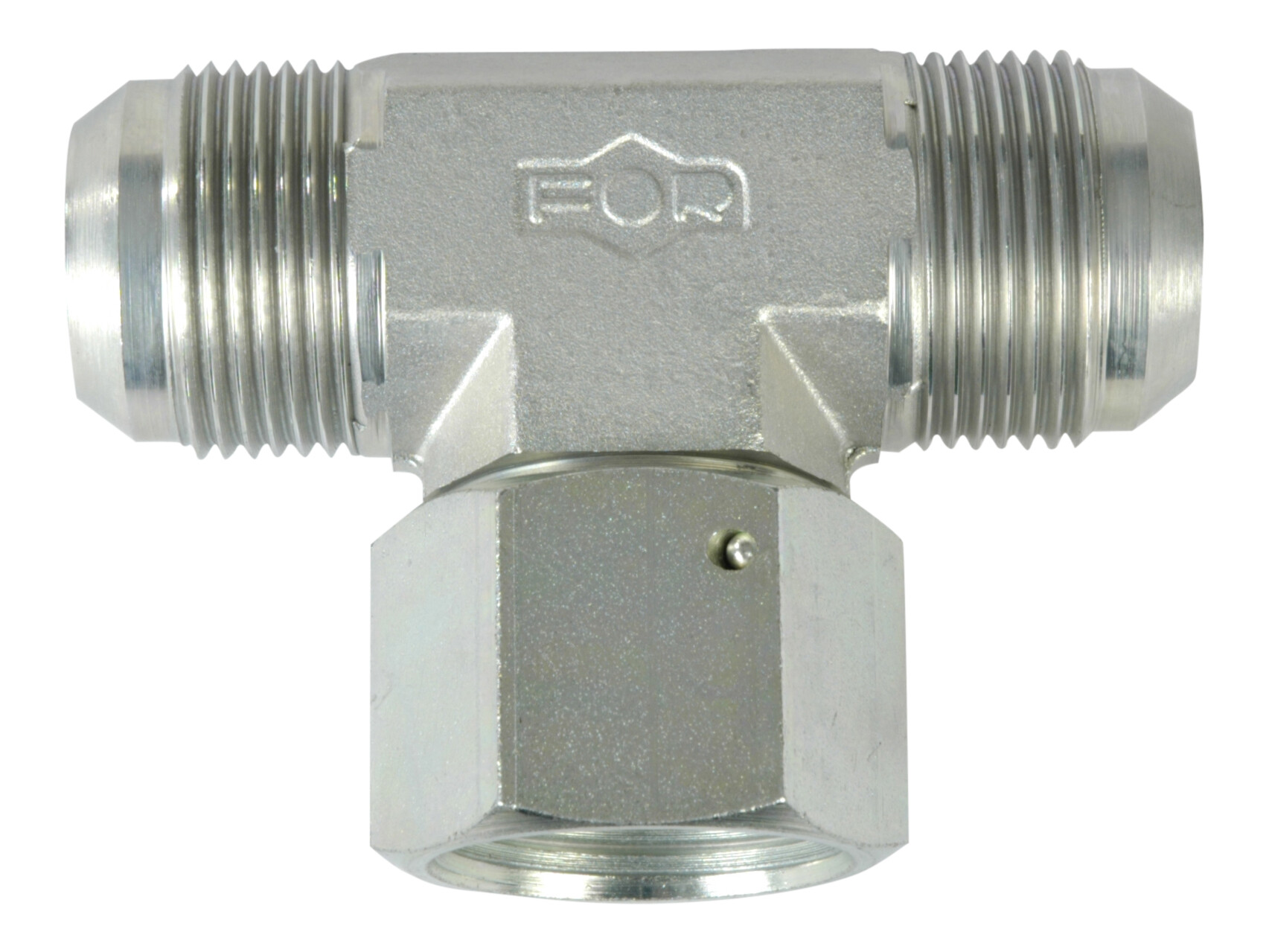

JIC 37° external/internal thread directional T-connector
- JIC internal thread in the middle branch of the T-connector
- JIc external threads in the side branches of the T-connector
Partnumber:
JEVT-16-ST
Package size:
1 st
Min. order quantity is:
1 st
Angle
L-liitin °
B
46 mm
B1
46 mm
Brand Name
FOR
C
51,5 mm
CH
38 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
25 mm
Dimension J1
1.5/16-12 JIC
J
1.5/16-12 JIC
J2
1.5/16-12 JIC
Material
Steel
Pressure max.
290 bar
Surface treatment
Electro-galvanized / White chromatized
T
25 mm
T1
25 mm
Thread inner
1.5/16-12 JIC
Thread outer
1.5/16-12 JIC
Package size
1 st
Barcode
233308
Gross weight
0,50 Kg
Net weight
0,50 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° external/internal thread directional T-connector
- JIC internal thread in the middle branch of the T-connector
- JIc external threads in the side branches of the T-connector
Note: Opening 3D files requires a program that supports the file format
