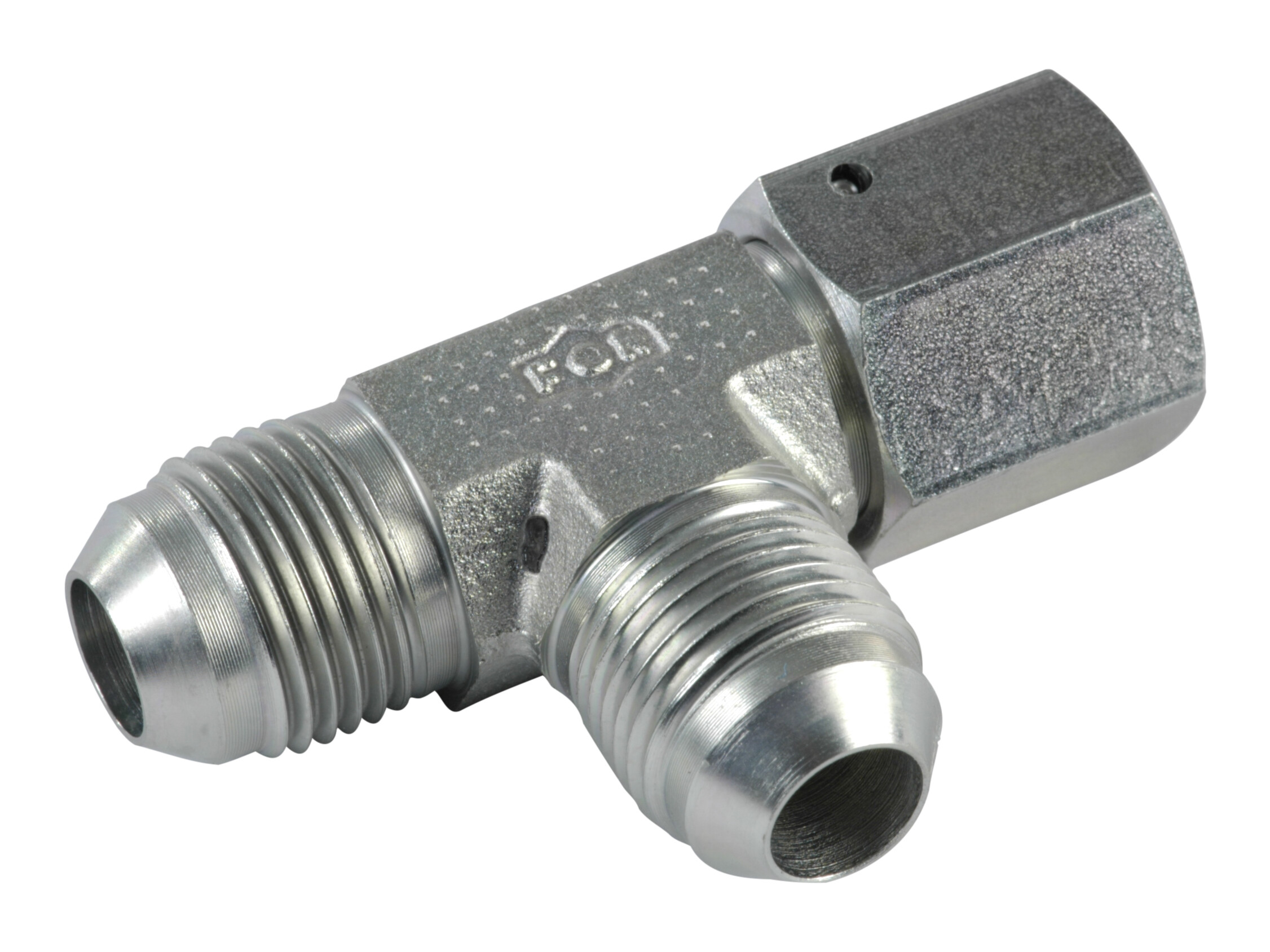

S680-12TG barrel Tee with nut
Run tee adapter for creating a T-connection in hydraulic lines with 37° JIC flare interfaces. The body provides a JIC male connection, and the swivel nut provides a JIC female connection, allowing branching while keeping a JIC-to-JIC interface throughout the joint.
Used where a compact branch connection is needed and where matching JIC threads and tube size are key selection criteria. The electro zinc plated surface treatment and the specified corrosion resistance support use in demanding environments.
Typical Applications
- Branching of hydraulic tubing with 37° JIC flare connections
- Adapter point for adding an extra hydraulic line connection in a JIC-based system
Partnumber:
JEVL-08-ST
Package size:
1 pcs
Min. order quantity is:
1 pcs
B
31,5 mm
B1
31,5 mm
Brand Name
FOR
C
35,5 mm
CH
22 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
J
3/4-16 JIC
J1
3/4-16 JIC
J2
3/4-16 JIC
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro zinc plated
T
12 mm
T1
12 mm
Thread inner
3/4-16 JIC
Thread outer
3/4-16 JIC
Pakke str.
1 pcs
Stregkode
233293
Brutto vægt
0,14 Kg
Netto vægt
0,14 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
Run tee adapter for creating a T-connection in hydraulic lines with 37° JIC flare interfaces. The body provides a JIC male connection, and the swivel nut provides a JIC female connection, allowing branching while keeping a JIC-to-JIC interface throughout the joint.
Used where a compact branch connection is needed and where matching JIC threads and tube size are key selection criteria. The electro zinc plated surface treatment and the specified corrosion resistance support use in demanding environments.
Typical Applications
- Branching of hydraulic tubing with 37° JIC flare connections
- Adapter point for adding an extra hydraulic line connection in a JIC-based system
