Pressure filter - 10my absolut - 1/2" BSP
Built-in by-pass valve, ensuring flow in case of flow through the filtrationelement is blocked due to contamination.
Partnumber:
FMP0392BAA6A10NP01
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
MP Filtri
Dimension A
G 1/2 BSP

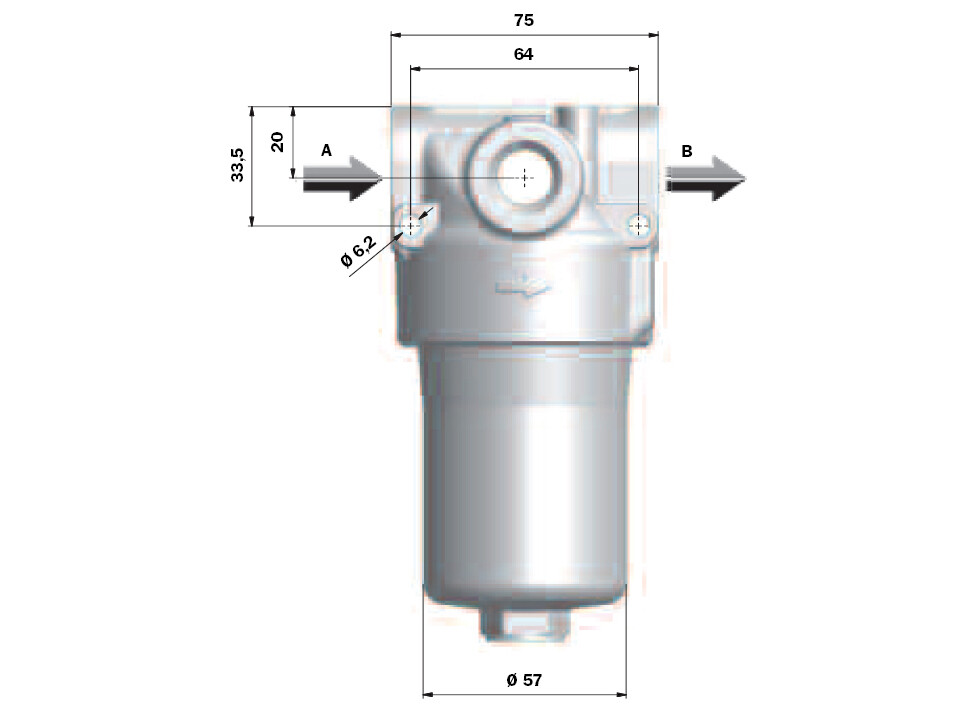

Dimension H
151 mm
Filtration
Absolute
Filtration degree
10 my
Flow rate nominal LMin
45 lpm
Model code
FMP0392-B-A-A-6-A10N-P01-T2H
Pressure max.
110 bar
Temperature max.
+110 °C
Temperature min.
-25 °C
Thread
G 1/2 BSP
Thread indicator port
G 1/2 BSP
Pakke str.
1 st
Stregkode
442479
Brutto vægt
1,50 Kg
Netto vægt
1,50 Kg
Oprindelsesland
ITA
Intrastat varekode
84212980
Built-in by-pass valve, ensuring flow in case of flow through the filtrationelement is blocked due to contamination.
