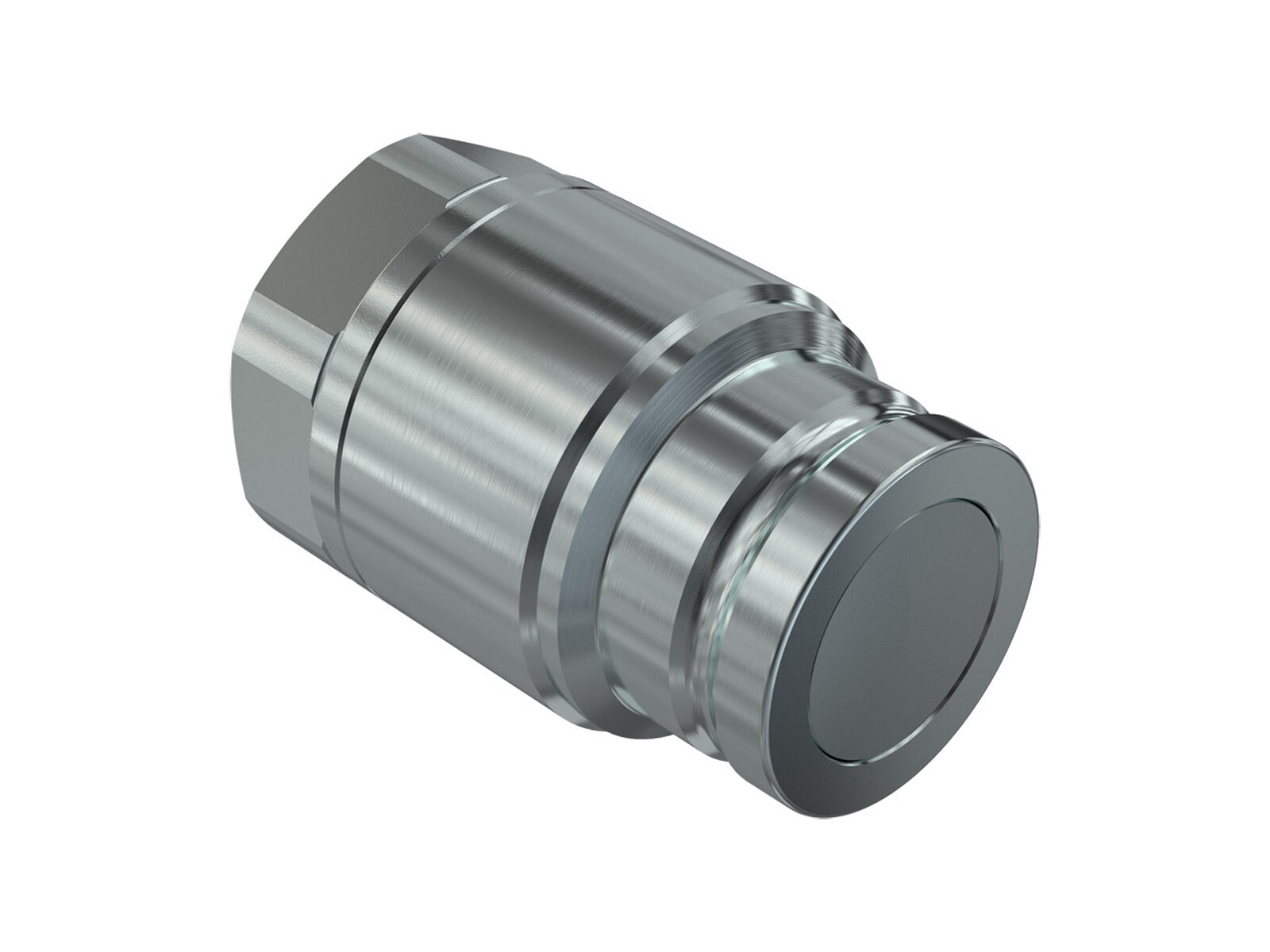

Snabbkoppling Flatface 2''
Faster Flat-face quick coupling.
No oil spillage during assembly and disassembly.
The seals are easy to change.
Assembly: Press the trade.
Disassembly: Pull the outer ring of the female part back.
Locking system: Flat-sealed valve (double valve trade).
Assembly/Disassembly: Must be done without pressure.
Partnumber:
FFI2GASM
Package size:
1 pcs
Min. order quantity is:
1 pcs
Anvendelsesområde
Hydraulic oil
Flow Nominel
1000 lpm
Gevind indvendig
G 2 BSP
Korrosions resistens
500 hours salt spray ISO 9227
Materiale
Steel
Model kode
FFI 2 GAS M
Overfladebehandling
Zinc coating (CR III)
Pakningsmateriale
NBR, Polyurethane
Størrelse
2 "
Temperatur maks.
+100 °C
Temperatur min.
-25 °C
Tryk maks.
250 bar
Trykeliminator
No
Förpackningsstorlek
1 pcs
Streckkod
381843
Bruttovikt
3,167 Kg
Nettovikt
3,167 Kg
Ursprungsland
swe
Faster Flat-face quick coupling.
No oil spillage during assembly and disassembly.
The seals are easy to change.
Assembly: Press the trade.
Disassembly: Pull the outer ring of the female part back.
Locking system: Flat-sealed valve (double valve trade).
Assembly/Disassembly: Must be done without pressure.
