2-way NC soleniod valve

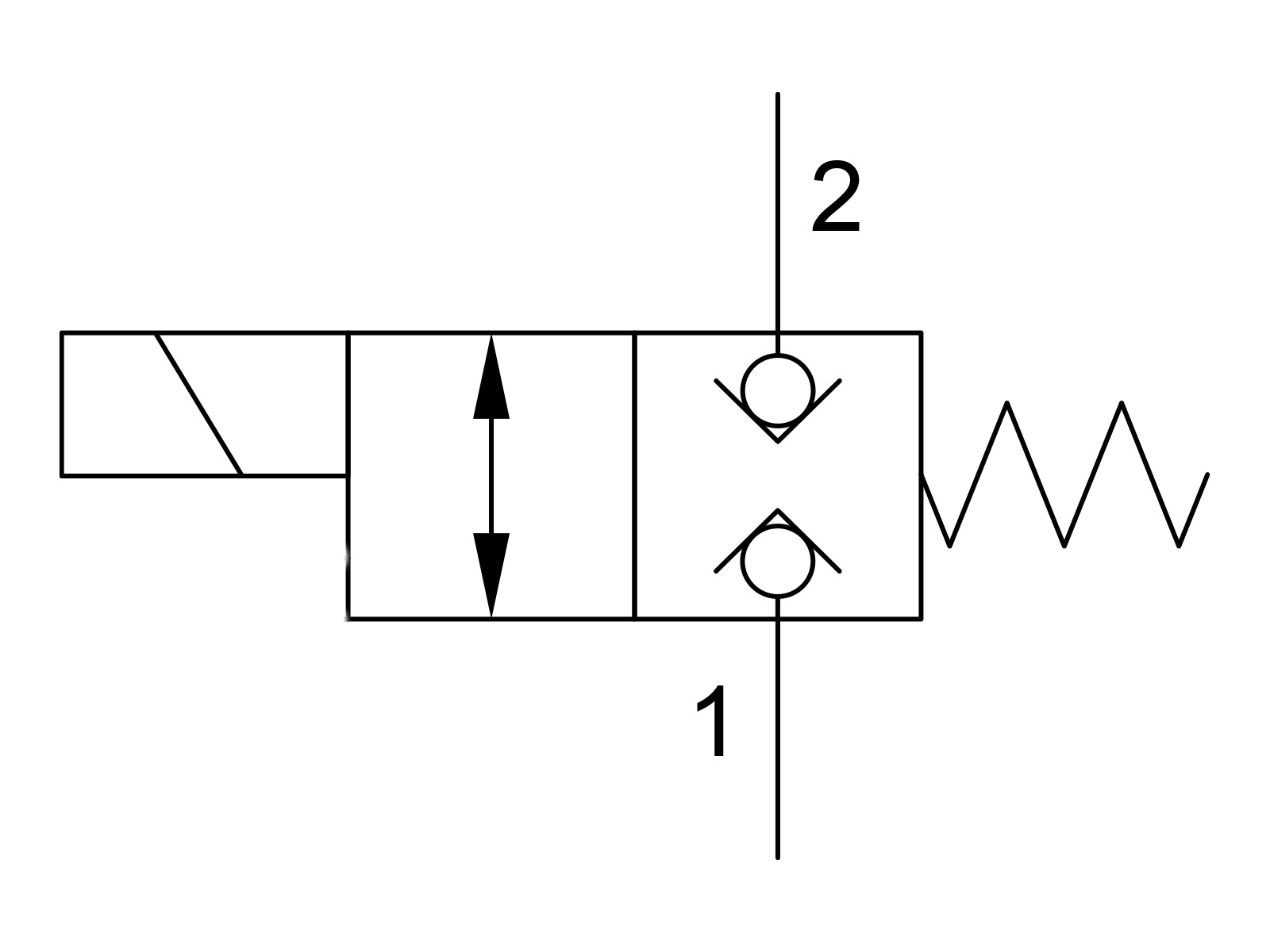

This FLeX Series solenoid-operated 2-way, 2-position cartridge is a direct-acting directional poppet valve. Available in either normally open or normally closed configurations, these valves feature a pressure-balanced design, low leakage, and allow flow or blocking in both directions. This cartridge can be installed directly into a cavity in the end of many of Sun's pilot operated and ventable valves to provide integrated pilot control.
Partnumber:
DTAF-XCN
Package size:
1 st
Min. order quantity is:
1 st
Activation
Solenoid
Brand Name
Sun Hydraulics
Cavity
T-8A
Contamination level max.
15/13/11 - ISO 4406
Flow rate nominal LMin
28 lpm
Manual operated
No
Number of ways/positions
2/2
Oil viscocity recommended
2,8 - 380 cSt
Pressure max.
350 bar
Sealing material
NBR
Temperature max.
+110 °C
Temperature min.
-30 °C
Torque tightening
27 - 33 Nm
Valve type
NC - Normally closed
Pakke str.
1 st
Stregkode
359042
Brutto vægt
0,10 Kg
Netto vægt
0,10 Kg
Oprindelsesland
Intrastat varekode
84812010
This FLeX Series solenoid-operated 2-way, 2-position cartridge is a direct-acting directional poppet valve. Available in either normally open or normally closed configurations, these valves feature a pressure-balanced design, low leakage, and allow flow or blocking in both directions. This cartridge can be installed directly into a cavity in the end of many of Sun's pilot operated and ventable valves to provide integrated pilot control.
