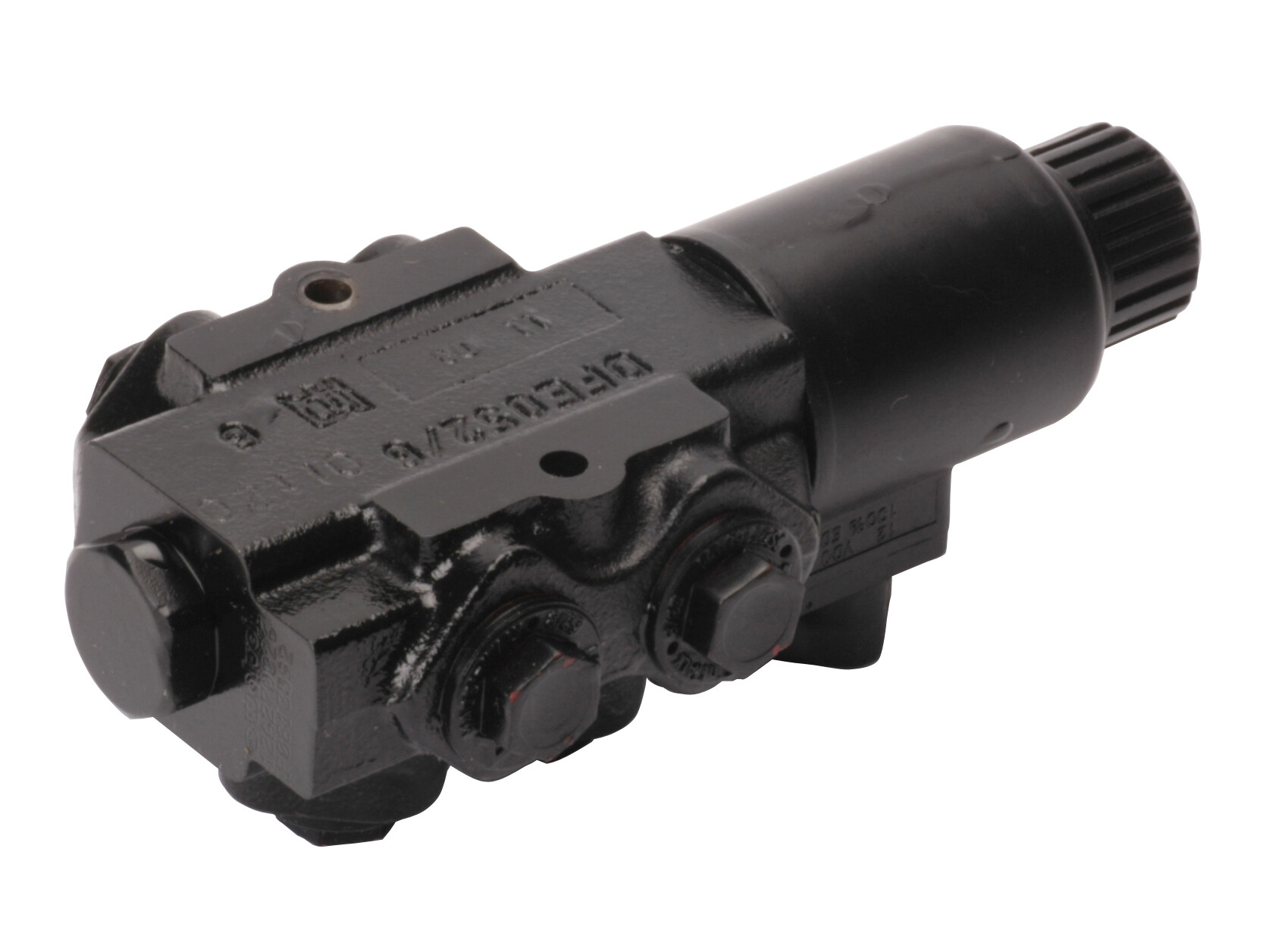

DFE052/6B18ES-W-201-24Vdc <CRZ> Walvoil 6/2 way valve 3/8
Walvoil solenoid operated selector valve "Spool-type". With a 6-way selector valve it is possible to operate 2 hydraulic motors or 2 double acting cylinders with one 4-way directional valve.
Modification to external drain requires mounting kit, type5GIU*** (Must be ordered separately).
Hydraulic fluid: Mineral base oil.
Viscosity: 15 to 75 cSt (Min. 12 cSt and max. 75 cSt).
Temperature range: with NBR-seals: -20°C to +80°C. with FPM-seals: -20°C to +100°C.
Ambient temperature for working conditions: -20°C to +50°C.
Note: Spool type "B" closes during shift!
Artikelnummer:
DFE052-6B-18ES-W201-24V
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Aktivering
Solenoid
Antal veje/positioner
6/2
Beskyttelsesklasse
IP 65
Drænport
G 1/4 BSP
Flow Nominel
60 lpm
Forureningsgrad maks.
20/18/15 - ISO 4406
Gevind
G 3/8 BSP
Korrosions resistens
168 hours salt spray UNI ISO 9227
Model
DFE052
Model kode
DFE052/6B18ES-W-201-24VDC
Mærke navn
Walvoil
Olieviskositet anbefalet
12 - 400 cSt
Overfladebehandling
Zinc coating (CR III)
Spænding
24 V
Stiktype
DIN 43650 Form A
Strømtype
DC
Temperatur arbejdsvæske maks.
+80 °C
Temperatur maks.
+50 °C
Temperatur min.
-20 °C
Temperatur omgivelse maks.
+50 °C
Tryk med dræn maks.
315 bar
Tryk uden dræn maks.
200 bar
Förpackningsstorlek
1 pcs
Streckkod
243974
Bruttovikt
2,07 Kg
Nettovikt
2,07 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
Walvoil solenoid operated selector valve "Spool-type". With a 6-way selector valve it is possible to operate 2 hydraulic motors or 2 double acting cylinders with one 4-way directional valve.
Modification to external drain requires mounting kit, type5GIU*** (Must be ordered separately).
Hydraulic fluid: Mineral base oil.
Viscosity: 15 to 75 cSt (Min. 12 cSt and max. 75 cSt).
Temperature range: with NBR-seals: -20°C to +80°C. with FPM-seals: -20°C to +100°C.
Ambient temperature for working conditions: -20°C to +50°C.
Note: Spool type "B" closes during shift!
