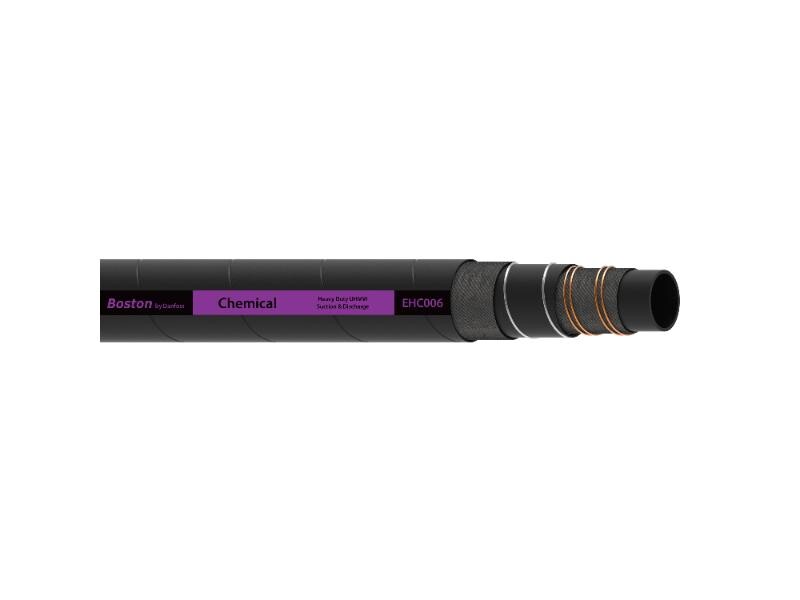

Premium Chem Master UHMWPE SD Dim.: 3/4 (19 x 31mm)
Areas of use: Industrial chemicals, mineral oil products, solvents, acids, alkalis.
Characteristics: Very universal suction and discharge hose (SD) according to EN12115 capable of handling a wide spectrum of corrosive chemicals and acids. The hose contains a wire helix for full suction capability. For resistance table - contact HydraSpecma A/S.
Electrical conductivity: R<106 Ohm. Construction: Mandrel-built suction- and pressure hose with reinforcements of woven yarns and steel-spiral between the layers. Electrical discharge through inner-liner and antistatic wires.
Materials: Inside: UHMWPE, black, smooth and conductive. Outside: CSM rubber, black, superior resistance to weather and abrasion, excellent chemical and oil resistance.
Couplings: We recommend - for safety reasons: Always use couplings with safety clamps according to EN 14420-3 / DIN 2817.
Partnumber:
CMUSD-19
Package size:
61 m
Min. order quantity is:
61 m
Area of use
Chemicals compatible with UHMWPE
Bend radius
95 mm
Brand Name
Danfoss
Color
Black
Cover
CSM (Chlorosulfinated Polyethylene) based
Diameter inner
19 mm
Diameter outer
31 mm
Electrically conductive
R < 10^6 Ohm
Length
40 m
Material
UHMWPE
Pressure burst min.
64 bar
Pressure max.
16 bar
Size
3/4 "
Standard EN
EN 12115
Temperature intermittent max.
+130 °C
Temperature max.
+100 °C
Temperature min.
-35 °C
Tube
UHMWPE
Vacuum max.
0.9 bar
Package size
61 m
Barcode
228445
Gross weight
0,70 Kg
Net weight
0,70 Kg
Country of origin
TUR
Intrastat code
40094100
Areas of use: Industrial chemicals, mineral oil products, solvents, acids, alkalis.
Characteristics: Very universal suction and discharge hose (SD) according to EN12115 capable of handling a wide spectrum of corrosive chemicals and acids. The hose contains a wire helix for full suction capability. For resistance table - contact HydraSpecma A/S.
Electrical conductivity: R<106 Ohm. Construction: Mandrel-built suction- and pressure hose with reinforcements of woven yarns and steel-spiral between the layers. Electrical discharge through inner-liner and antistatic wires.
Materials: Inside: UHMWPE, black, smooth and conductive. Outside: CSM rubber, black, superior resistance to weather and abrasion, excellent chemical and oil resistance.
Couplings: We recommend - for safety reasons: Always use couplings with safety clamps according to EN 14420-3 / DIN 2817.
