Banjo Stryp/backventil (in) Ø6 1/8
Banjo Stryp/backventil (in) Ø6 1/8
Partnumber:
C0L510618
Package size:
10 st
Min. order quantity is:
1 st
Area of use
Compressed air, Vacuum
Brand Name
Tierre
Diameter pipe
6 mm

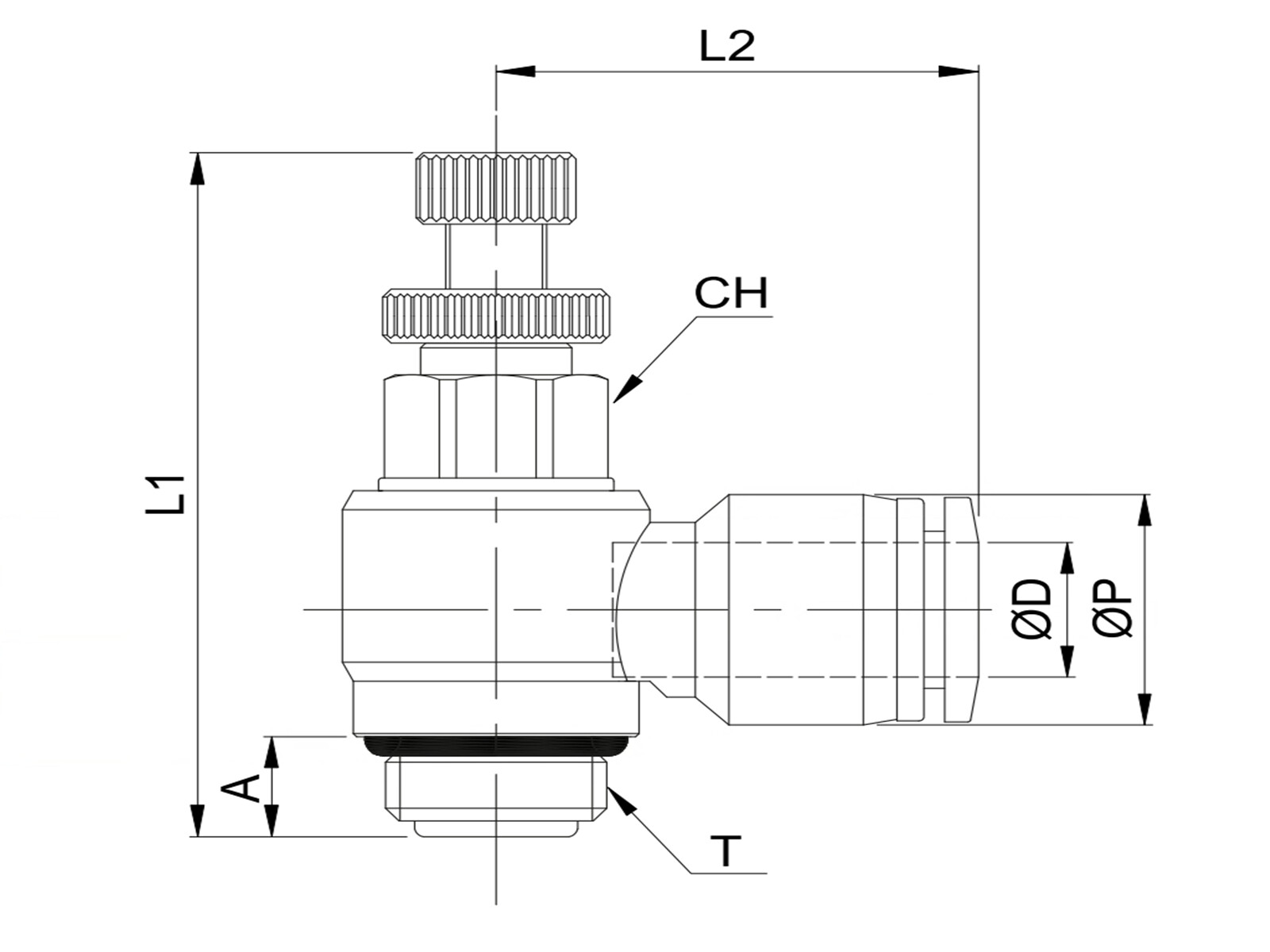

Dimension A
5 mm
Dimension CH
8 mm
Dimension L1
39.7 mm
Dimension L2
23.1 mm
Dimension T
G 1/8 BSP
Dimension ØD
6 mm
Dimension ØP
13 mm
Material
Brass, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTRFR06G01
Pressure max.
10 bar
Sealing material
NBR
Temperature max.
+60 °C
Temperature min.
0 °C
Thread
G 1/8 BSP
Torque tightening
10 Nm
Package size
10 st
Barcode
310185
Gross weight
Kg
Net weight
Kg
Country of origin
swe
Banjo Stryp/backventil (in) Ø6 1/8
