C01540618
Vridbar vinkel Ø6mm 1/8
Varenummer:
C01540618
Pakke str.:
10 st
Min. bestillingsenhed er:
10 st
Angle
90 °
Area of use
Compressed air, Vacuum
Brand Name
Tierre

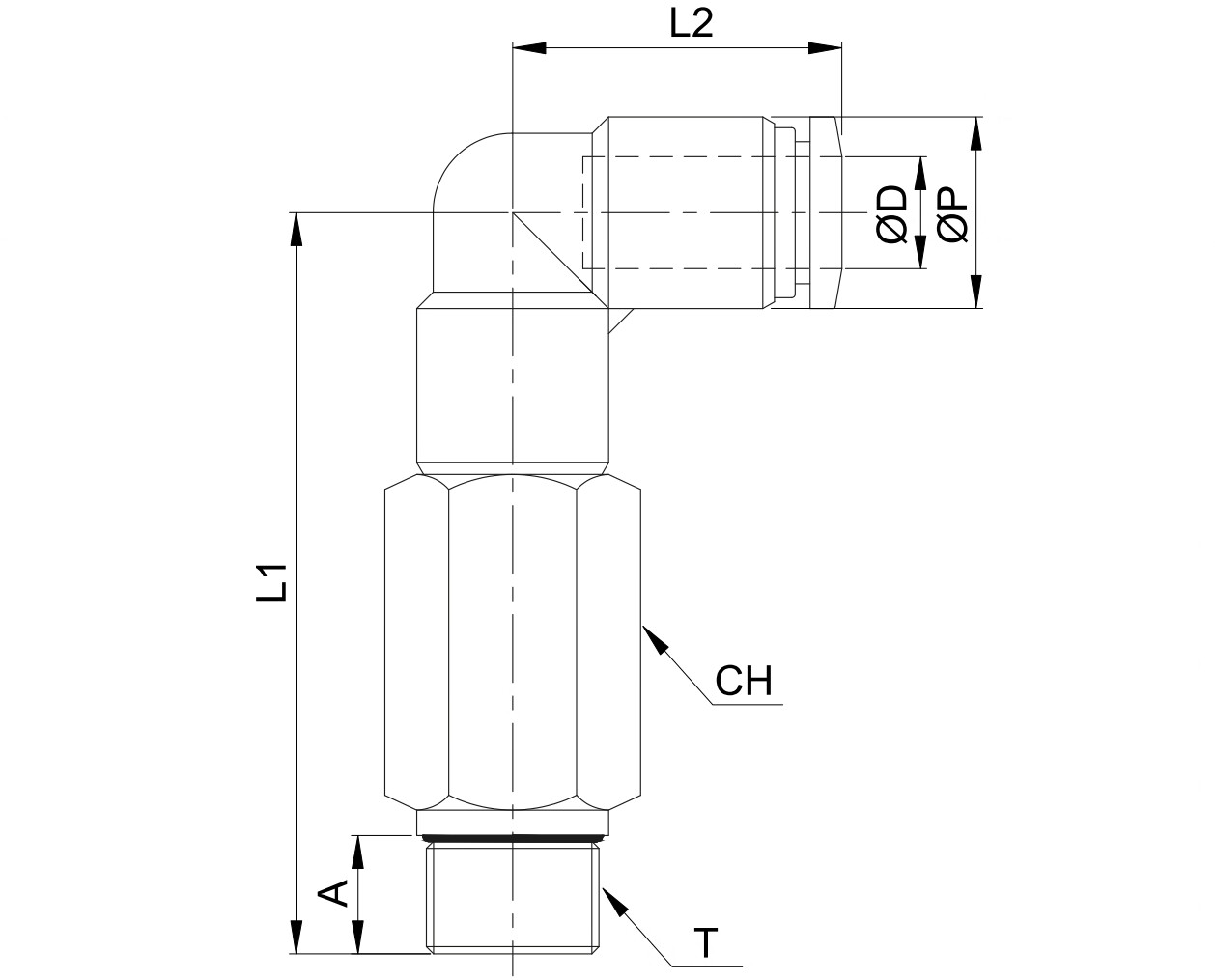

Dimension A
5 mm
Dimension CH
14 mm
Dimension L1
39.2 mm
Dimension L2
19 mm
Dimension T
G 1/8 BSP
Dimension ØD
6 mm
Dimension ØP
13 mm
Material
Brass, NBR, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTRLL06G01
Pressure max.
16 bar
Sealing material
NBR
Series
Pneufit C
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread
G 1/8 BSP
Thread
R 1/8 BSPT
Torque tightening
10 Nm
Tube Insertion Depth
16.5 mm
Tube Tollerance
ØD1 ± 0,1 mm
Vacuum max.
-0.9 bar
Förpackningsstorlek
10 st
Streckkod
230804
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
swe
Vridbar vinkel Ø6mm 1/8
