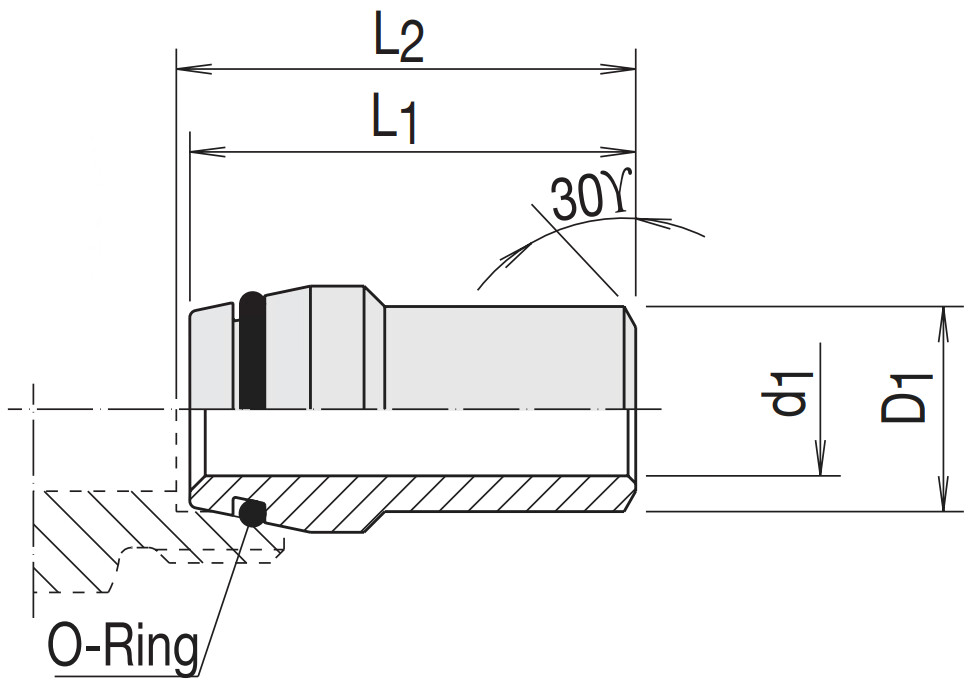

Welding stud fitting - ø16 x 3mm
Welding stud fitting - ø16 x 3mm
Partnumber:
AK16X3
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Gates
Diameter pipe
16 mm
Dimension D1
10 mm
Dimension L1
37.5 mm
Dimension L2
40.5 mm
Material
Steel
Model code
SNO163
Pressure max.
433 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
2.5
Sealing material
NBR
Surface treatment
Blank (oiled)
Temperature max.
+100 °C
Temperature min.
-35 °C
Package size
1 st
Barcode
128611
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
DEU
Intrastat code
73071110
Welding stud fitting - ø16 x 3mm
Note: Opening 3D files requires a program that supports the file format
