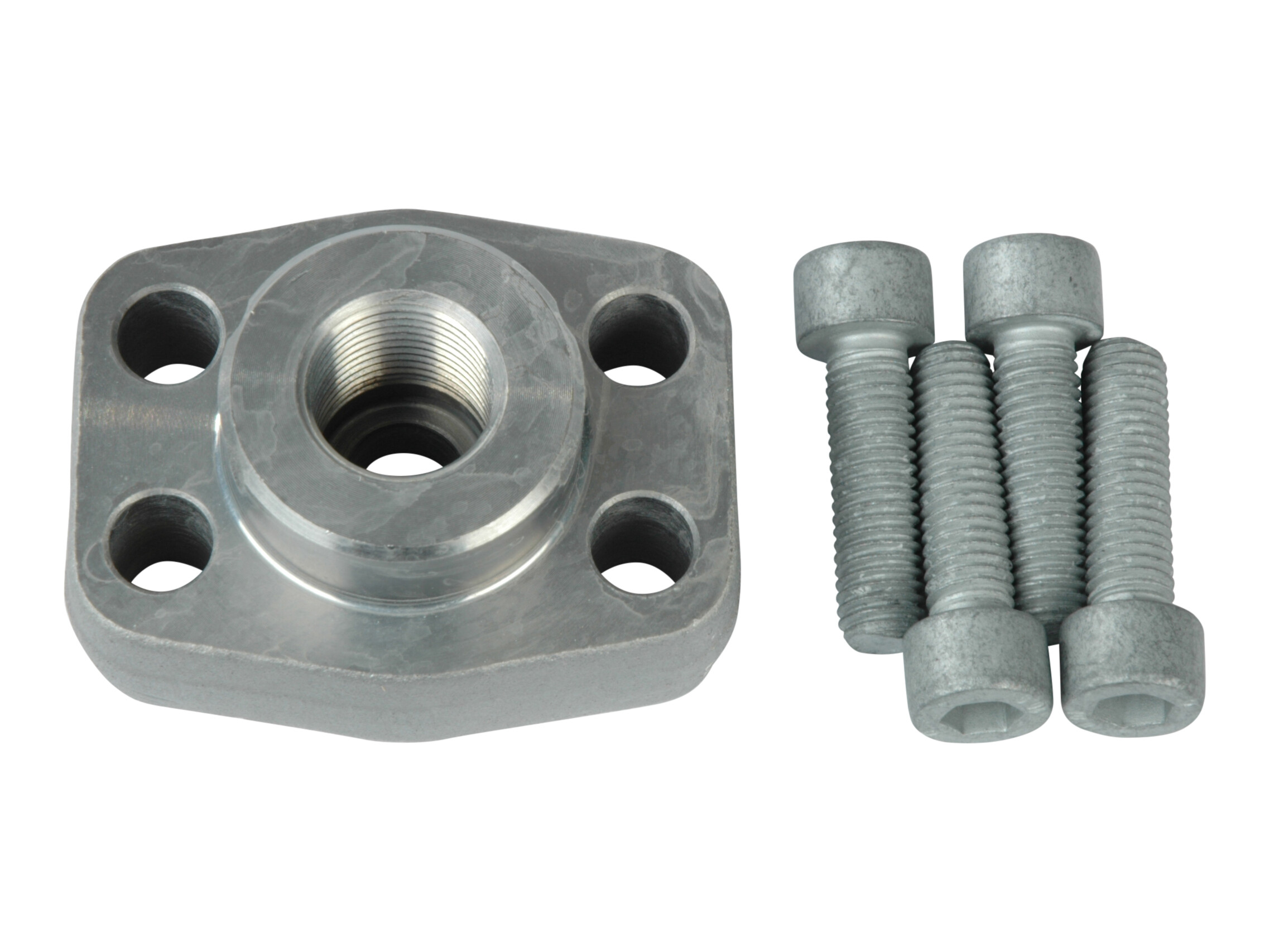

Threaded flange 3/4" SAE6000 x 1/2" BSP - complete
Threaded flange 3/4" SAE6000 x 1/2" BSP - complete
Artikelnummer:
8610-12-08-KM
Förpackningsstorlek:
1 set
Minsta beställningskvantitet:
1 set
Angle
0 °
Bolt dimension
M10x35 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
41.3 mm
Dimension C
50.8 mm
Dimension E
23.8 mm
Flange
3/4 "
Flange SAE/DIN
6000 PSI
Material
Steel
Number of bolts
4
O-ring
24.99X3.53 mm
Pressure max.
420 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1/2 BSP
Förpackningsstorlek
1 set
Streckkod
318405
Bruttovikt
0,56 Kg
Nettovikt
0,56 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
Threaded flange 3/4" SAE6000 x 1/2" BSP - complete
