Weo WEO 3/4 swivel
Weo WEO 3/4 swivel
Varenummer:
860-12-22
Pakke str.:
10 st
Min. bestillingsenhed er:
1 st
Angle
0 °
Brand Name
Cejn
Diameter pipe
41 mm

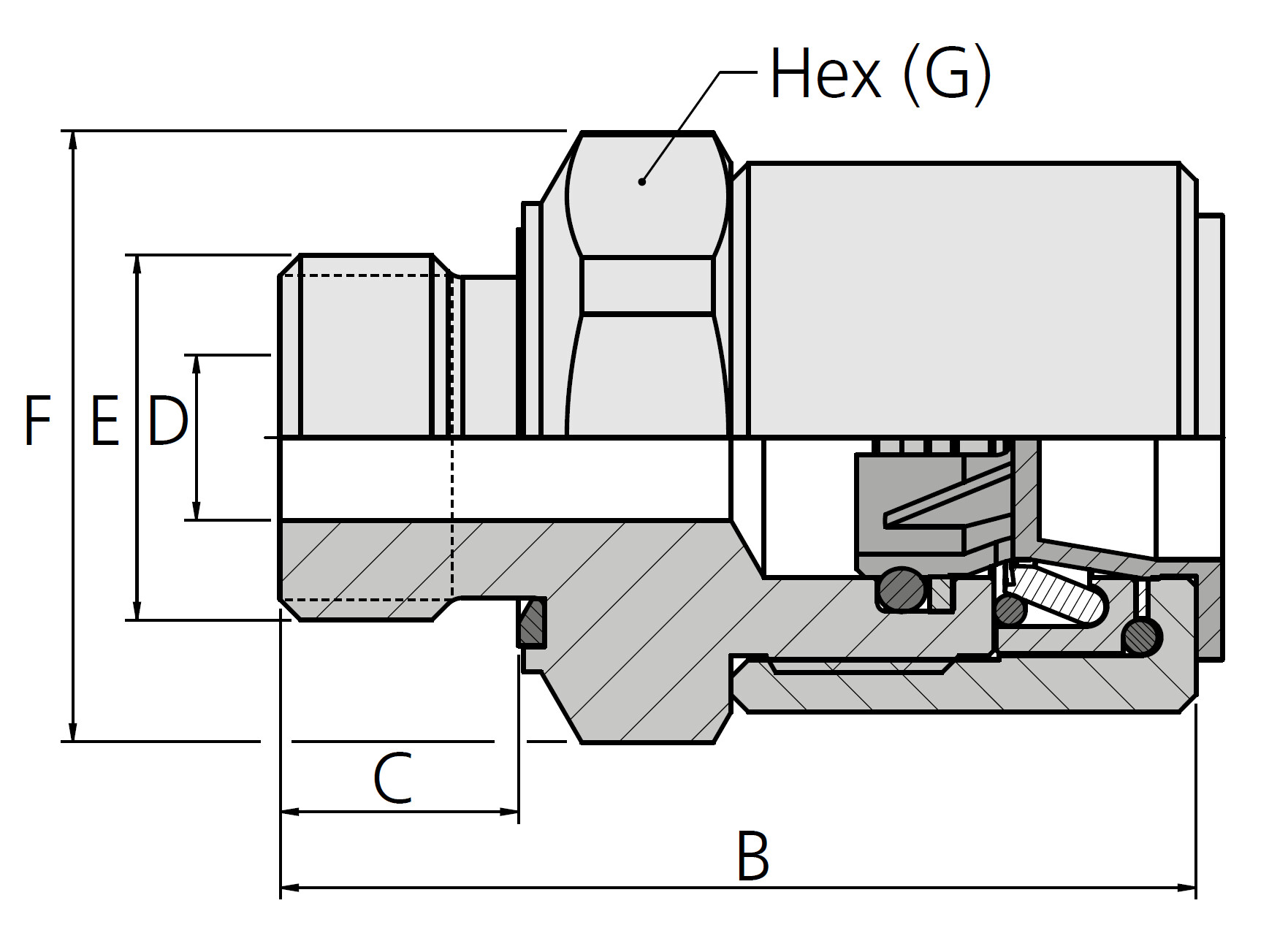

Dimension A
23 mm
Dimension B
67 mm
Dimension C
16 mm
Dimension D
15 mm
Dimension F
41 mm
Dimension G
41 mm
Hose size
3/4 "
Material
Steel
Pressure max.
350 bar
Safety factor
4
Sealing material
NBR
Standard ISO
ISO 1179-2
Surface treatment
Zinc-Nickel plated
Temperature intermittent max.
+120 °C
Temperature max.
+100 °C
Temperature min.
-30 °C
Thread
G 3/4 BSP
Thread ISO standard
ISO 228
WEO plug-in
3/4 "
Package size
10 st
Barcode
207320
Gross weight
0,39 Kg
Net weight
0,39 Kg
Country of origin
Intrastat code
73269098
Weo WEO 3/4 swivel
