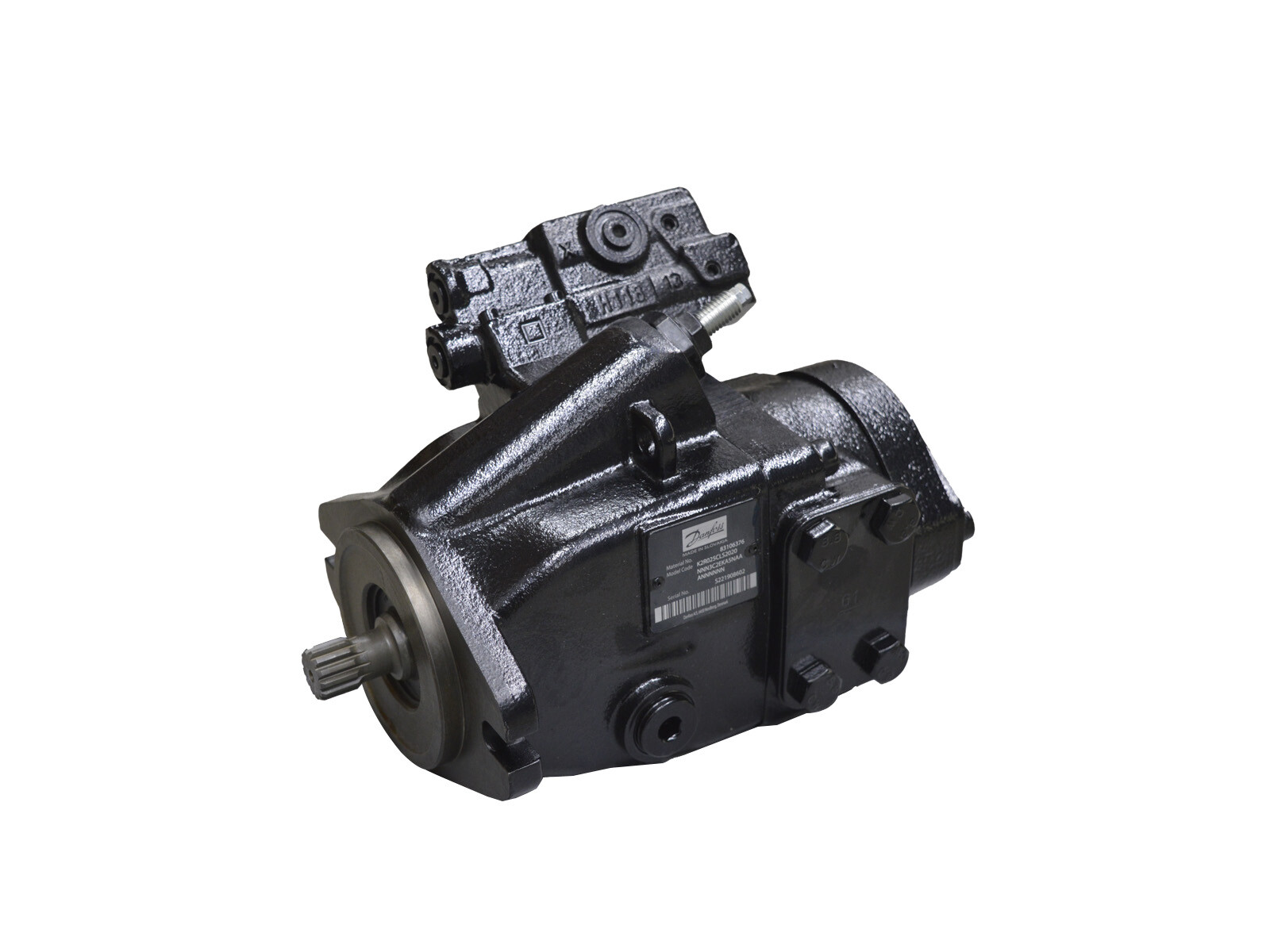

K2-R-025C-LS-26-20-NN-N-3-C2RR-A5N-AAA-NNN-NNN

K2-R-025C-LS-26-20-NN-N-3-C2RR-A5N-AAA-NNN-NNN

Artikelnummer:
83117980

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
AuxMount/EndCap code
RR

Brand Name
Danfoss

Contamination level max.
22/18/13 - ISO 4406

Continuous rotation max.
3450 rpm

Control
Load sensing

Control type
LS

Displacement
25 cm3

Displacement limiter
Adjustable

Flange SAE/DIN
3000 PSI

Flange inlet
1.1/2 "

Flange outlet
1 "

Holes circle
146 mm

Model
Frame K2

Mounting flange
SAE-B2

Number of mounting holes
2

Number of outer grooves
13

Oil viscocity recommended
9 - 110 cSt

Port position
Side

Pressure continous max.
260 bar

Pressure max.
350 bar

Rear flange
None

Recess
101,6 mm

Rotation direction
Right (CW)

Rotation max. at max. pressure
2600 rpm

Rotational speed max.
3750 rpm

Rotational speed min.
500 rpm

Sensor type
None

Shaft code
C2

Shaft diameter
21,8 mm

Shaft seal material
FKM/FPM (Viton®)

Shaft spline
13T 16/32 SAE-B

Shaft type
Spline

Temperature intermittent max.
+115 °C

Temperature max.
+104 °C

Temperature min.
-40 °C
Package size
1 st

Barcode
452183

Gross weight
Kg

Net weight
17,00 Kg

Country of origin
svk

Intrastat code
84135061

K2-R-025C-LS-26-20-NN-N-3-C2RR-A5N-AAA-NNN-NNN
