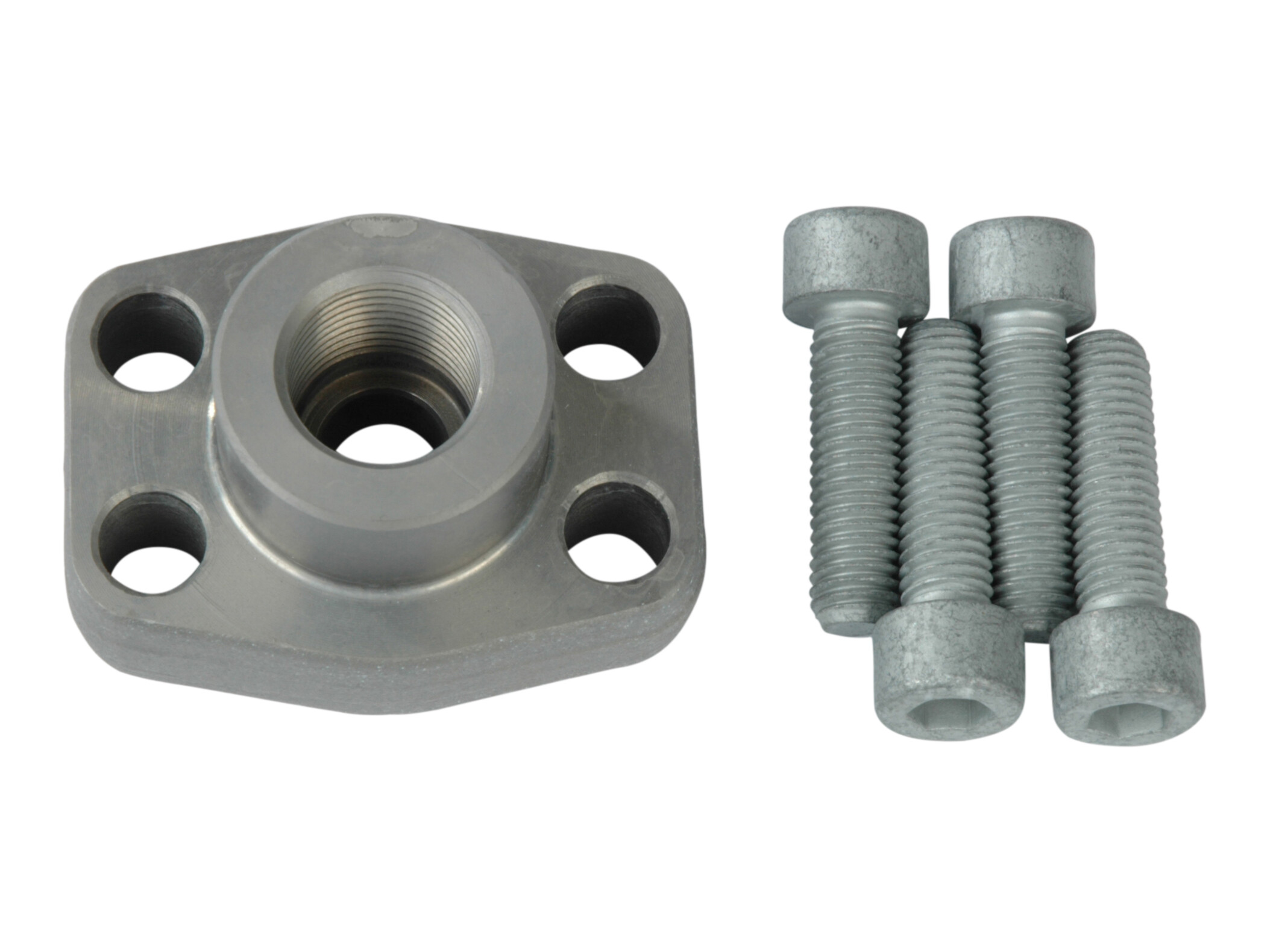

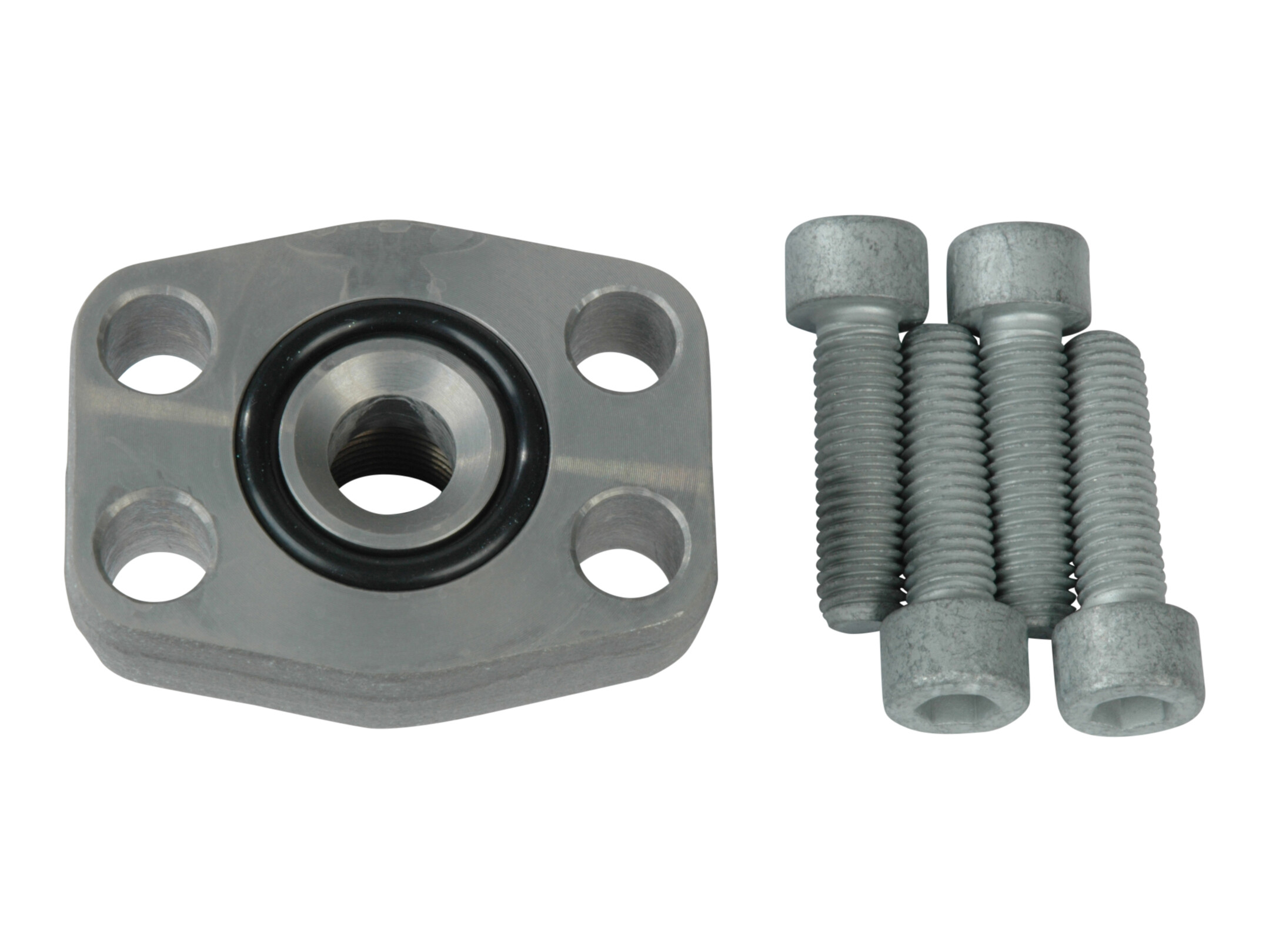

Threaded flange 3/4" SAE3000 x 1/2" BSP - complete
Threaded flange 3/4" SAE3000 x 1/2" BSP - complete
Artikelnummer:
8310-12-08-KM
Förpackningsstorlek:
1 set
Minsta beställningskvantitet:
1 set
Angle
0 °
Bolt dimension
M10x35 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
38.1 mm
Dimension C
47.6 mm
Dimension E
22.3 mm
Flange
3/4 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
24.99X3.53 mm
Pressure max.
350 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1/2 BSP
Package size
1 set
Barcode
416767
Gross weight
0,42 Kg
Net weight
0,42 Kg
Country of origin
DEU
Intrastat code
73079100
