FR-R-074B-LS-25-20-NN-N-3-K4R2-A1N-AAA-NNN-NNN

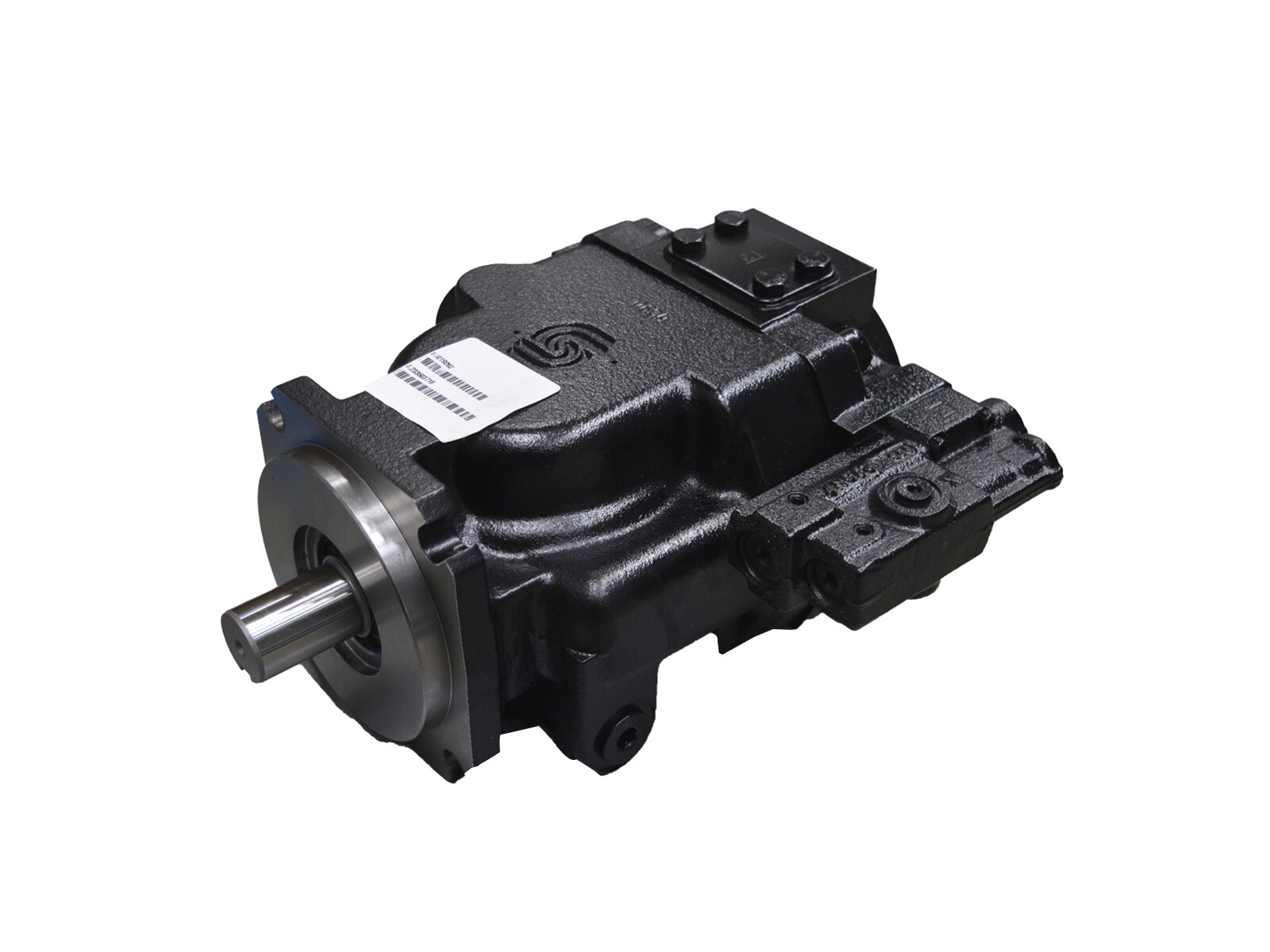

Danfoss S45 open circuit variable displacement piston pump.
Features:Load sensing.
Connections:SAE flange with side outlets.
Shaft and O-ring seals Viton®.
Partnumber:
83019262
Package size:
1 st
Min. order quantity is:
1 st
AuxMount/EndCap code
R2
Brand Name
Danfoss
Contamination level max.
22/18/13 - ISO 4406
Continuous rotation max.
2400 rpm
Control
Load sensing
Control type
LS
Displacement
74 cm3
Displacement limiter
Adjustable
Flange SAE/DIN
3000 PSI
Flange inlet
2 "
Flange outlet
1 "
Holes circle
161.9 mm
Model
Frame F
Mounting flange
SAE-C4
Number of mounting holes
4
Oil viscocity recommended
9 - 110 cSt
Port position
Side
Pressure continous max.
310 bar
Pressure max.
400 bar
Rear flange
None
Recess
127,0 mm
Rotation direction
Right (CW)
Rotation max. at max. pressure
2800 rpm
Rotational speed max.
2800 rpm
Rotational speed min.
500 rpm
Sensor type
None
Shaft code
K4
Shaft diameter
31,75 mm
Shaft keyway
7,95 mm
Shaft seal material
FKM/FPM (Viton®)
Shaft type
Cylindrical
Temperature intermittent max.
+104 °C
Temperature max.
+82 °C
Temperature min.
-40 °C
Pakke str.
1 st
Stregkode
450331
Brutto vægt
Kg
Netto vægt
34,247 Kg
Oprindelsesland
usa
Intrastat varekode
84135061
Danfoss S45 open circuit variable displacement piston pump.
Features:Load sensing.
Connections:SAE flange with side outlets.
Shaft and O-ring seals Viton®.
