MM-OMT-LS-DCP441-1-B-6B-E-B-300-4.5-015 (172,5 bar)

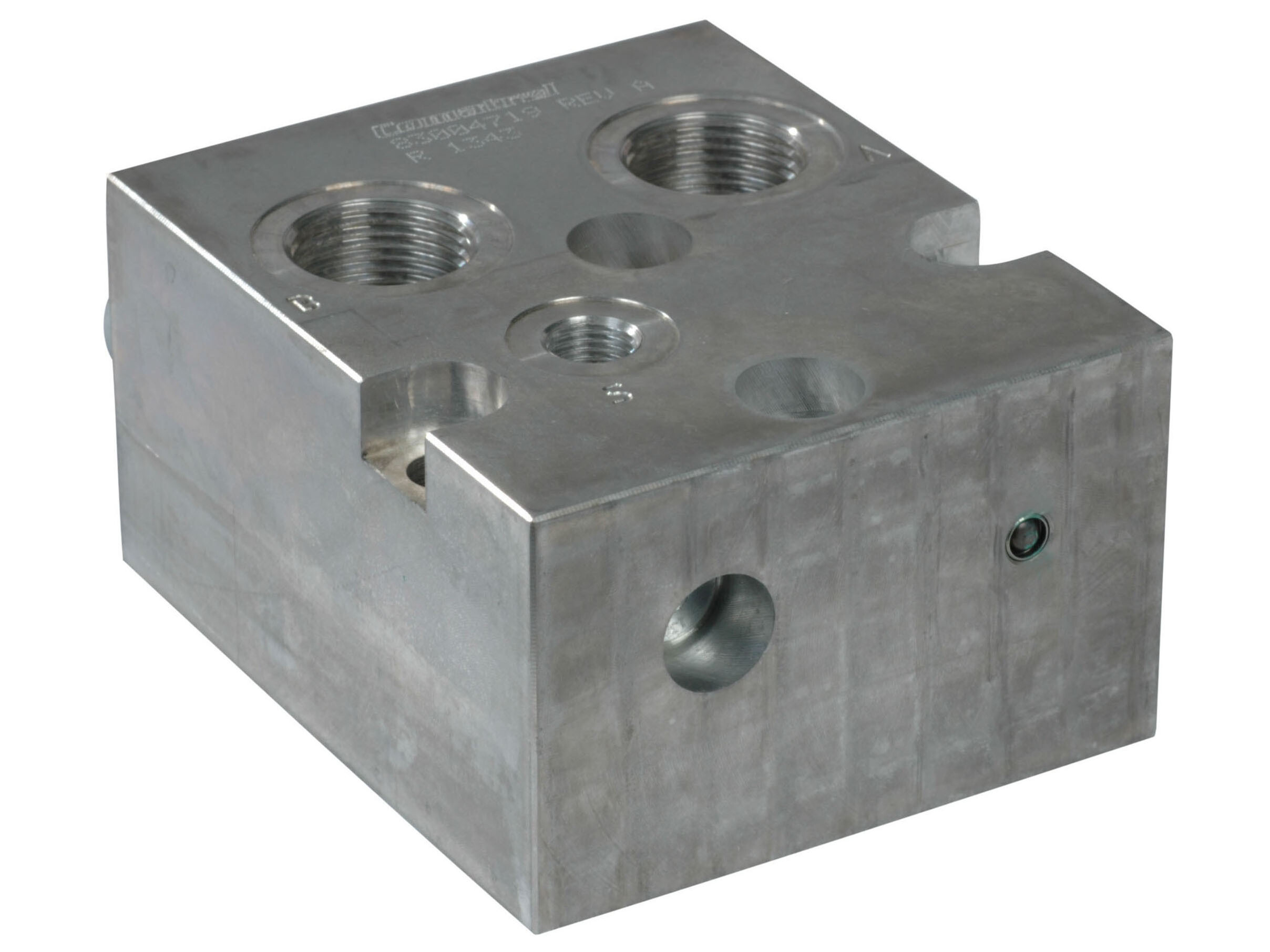

This is a dual counterbalance HIC with shuttle that mounts on OMT motors with BSP port connection.

Partnumber:
83004719

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Danfoss

Contamination level max.
20/19/14 - ISO 4406

Flow rate nominal LMin
115 lpm

Material
Aluminium

Model code
MM-OMT-LS-DCP441-1-B-6B-E-B-XXX-4.5-015

Oil viscocity recommended
12 - 54 cSt

Pressure max.
210 bar

Pressure setting max.
13 bar

Pressure setting min.
34 bar

Sealing material
NBR

Valve type
Overcenter valve
Package size
1 st

Barcode
374646

Gross weight
2,19 Kg

Net weight
2,19 Kg

Country of origin

Intrastat code
84812010

This is a dual counterbalance HIC with shuttle that mounts on OMT motors with BSP port connection.
