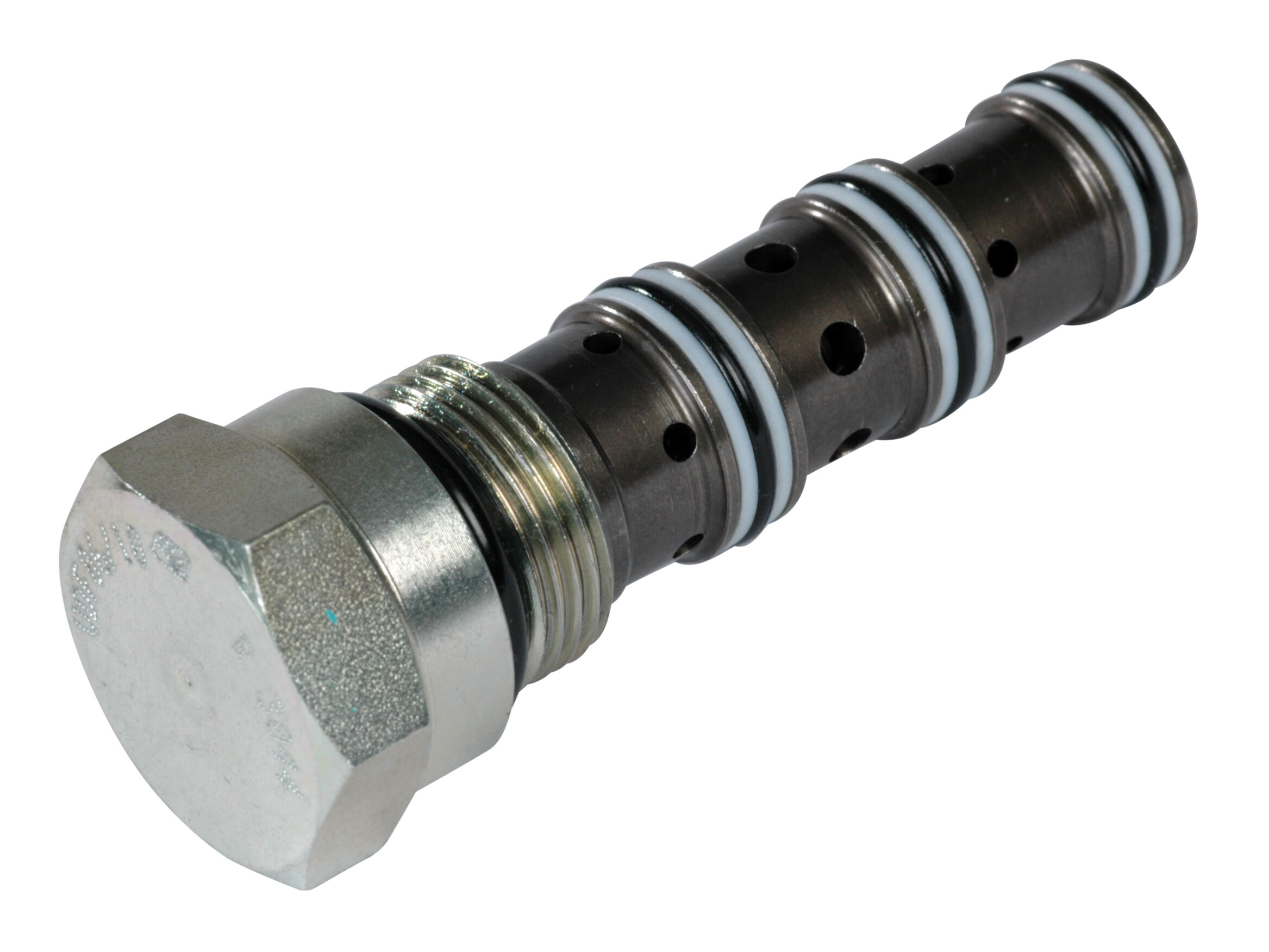

    • Flow Divider ventil 45l/m 10-25l/m VDF 06-10-00-B

    Flow Divider ventil 45l/m 10-25l/m VDF 06-10-00-B

    This valve is a fixed ratio, pressure compensated fl­ow divider/combiner.

    Artikelnummer:
    820198219
    Förpackningsstorlek:
    1 st
    Minsta beställningskvantitet:
    1 st
    Housing NCS06/4--L 3/8
    Artikelnummer: 922500913
    Housing NCS06/4--L 1/2
    Artikelnummer: 922501013
    Ventilhus Comatrol NCS06/4--LD 3/8
    Artikelnummer: 922506013
    Housing NCS06/4--LD 1/2
    Artikelnummer: 922506113
    Brand Name
    Danfoss
    Cavity
    NCS06/4
    Contamination level max.
    20/18/14 - ISO 4406
    Flow max. regulated
    25 lpm
    Flow min. regulated
    10 lpm
    Flow rate nominal LMin
    45 lpm
    Material
    Steel
    Model code
    VDF06-10-00-B
    Oil viscocity recommended
    12 - 54 cSt
    Pressure compensated
    Yes
    Pressure max.
    210 bar
    Sealing material
    NBR
    Temperature max.
    +100 °C
    Temperature min.
    -40 °C
    Torque tightening
    44 - 50 Nm
    Förpackningsstorlek
    1 st
    Streckkod
    374731
    Bruttovikt
    0,10 Kg
    Nettovikt
    0,10 Kg
    Ursprungsland
    ITA
    Intrastat artikelkod
    84812010

    This valve is a fixed ratio, pressure compensated fl­ow divider/combiner.

    Product datasheet
