    • Press.comp Flow Cont. valve 60l/m (25-60l/m) VR 12-EN-5.00-0

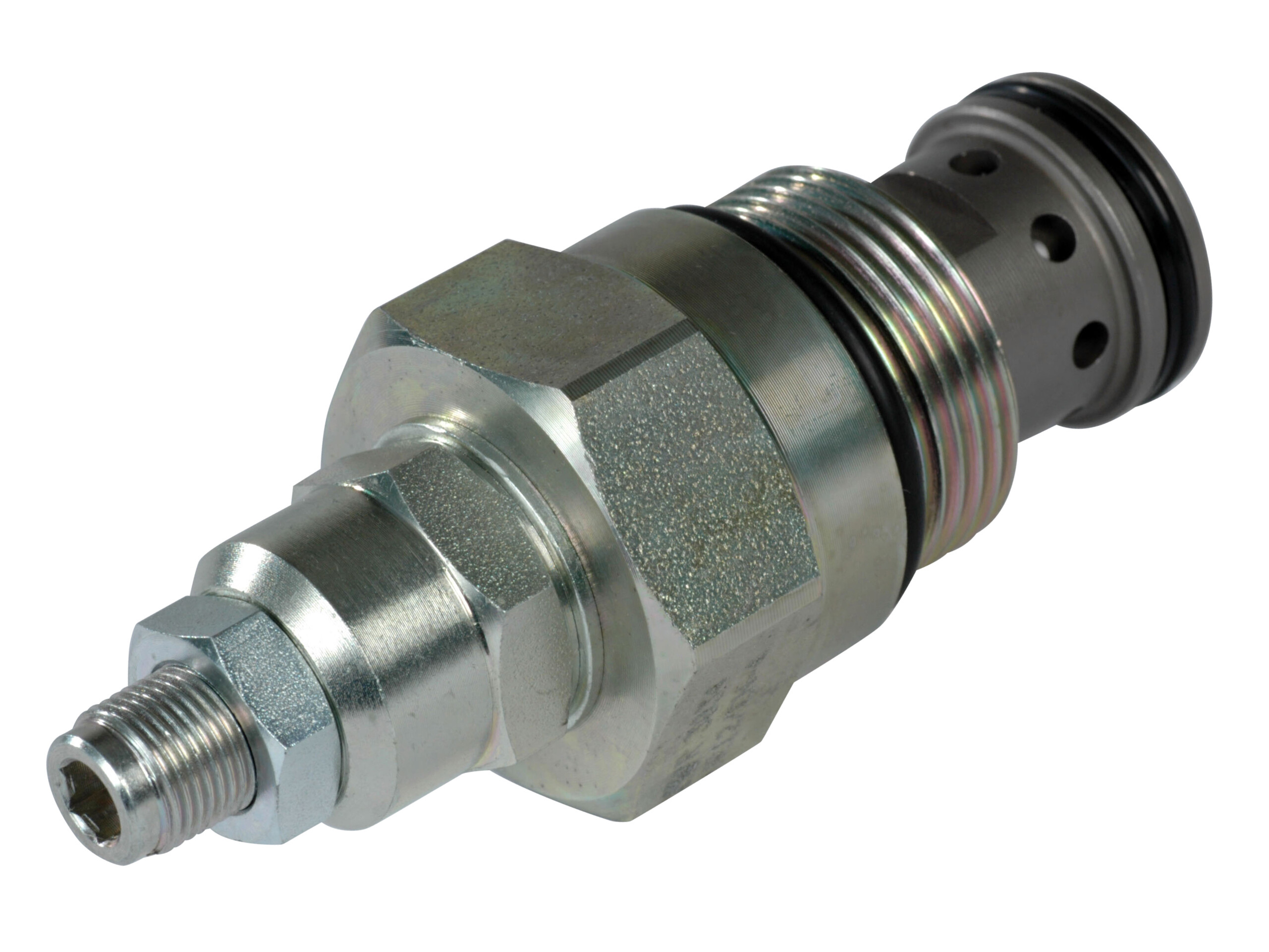

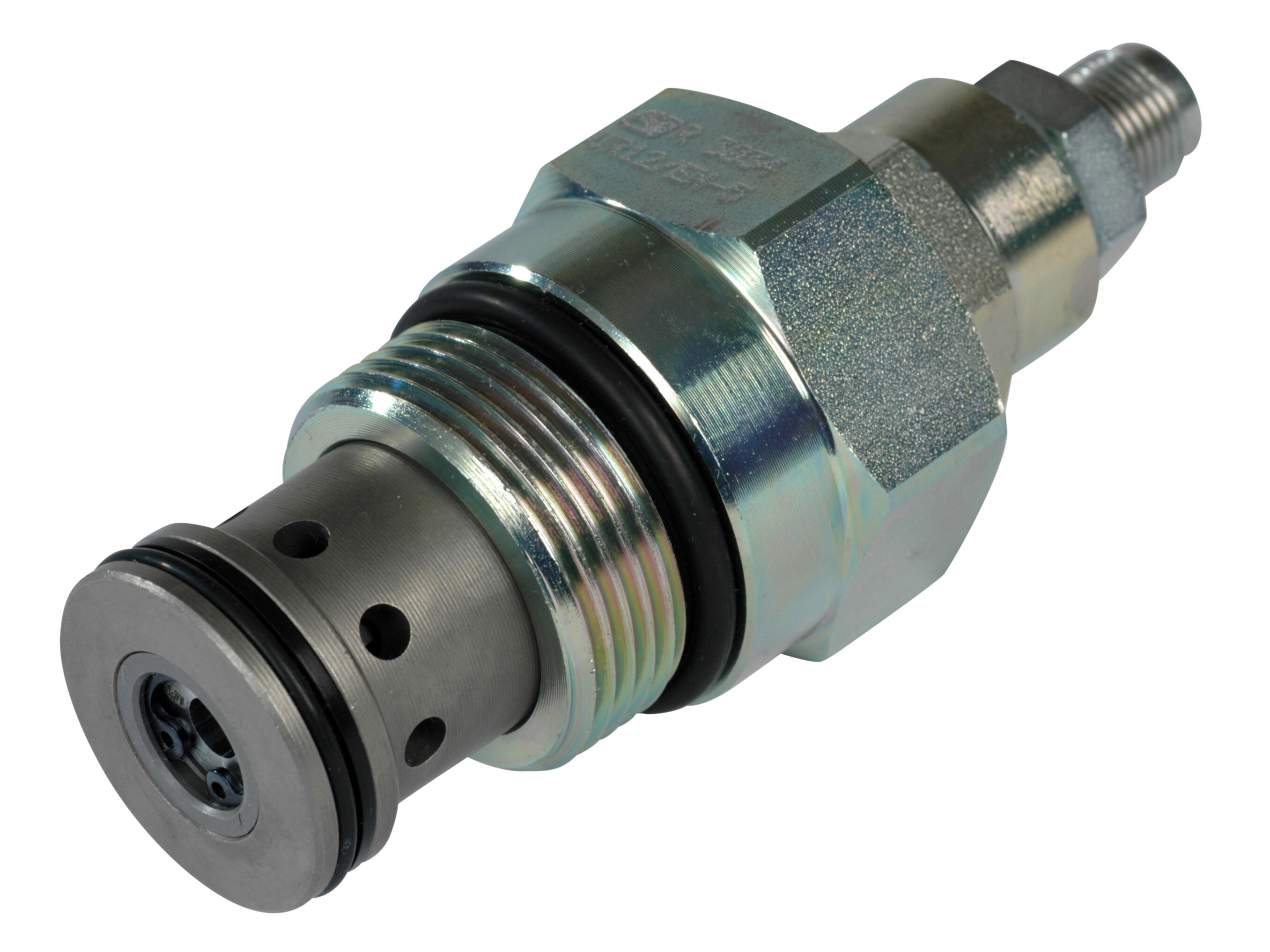

    Press.comp Flow Cont. valve 60l/m (25-60l/m) VR 12-EN-5.00-0

    This valve is a limited adjustment, pressure compensated, restrictive-type ­flow control valve. To increase the fl­ow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise.

    Varenummer:
    820165019
    Pakke str.:
    1 st
    Min. bestillingsenhed er:
    1 st
    Flow min. reglerat
    25 lpm
    Flöde max. reglerat
    60 l/min
    Flödeshastighet nominell LMin
    60 lpm
    Föroreningsgrad max.
    20/18/14 - ISO 4406
    Kavitet
    NCS12/2
    Modell kod
    VR12-EN-5.00-00
    Märke namn
    Danfoss
    Oljeviskositet rekommanderad
    12 - 54 cSt
    Temperatur max.
    +100 °C
    Temperatur min.
    -40 °C
    Tryck max.
    315 bar
    Tryckkompenserad
    Yes
    Åtdragning moment
    65 - 70 Nm
    Package size
    1 st
    Barcode
    355935
    Gross weight
    0,39 Kg
    Net weight
    0,39 Kg
    Country of origin
    ITA
    Intrastat code
    84812010

    This valve is a limited adjustment, pressure compensated, restrictive-type ­flow control valve. To increase the fl­ow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise.

    Product datasheet
