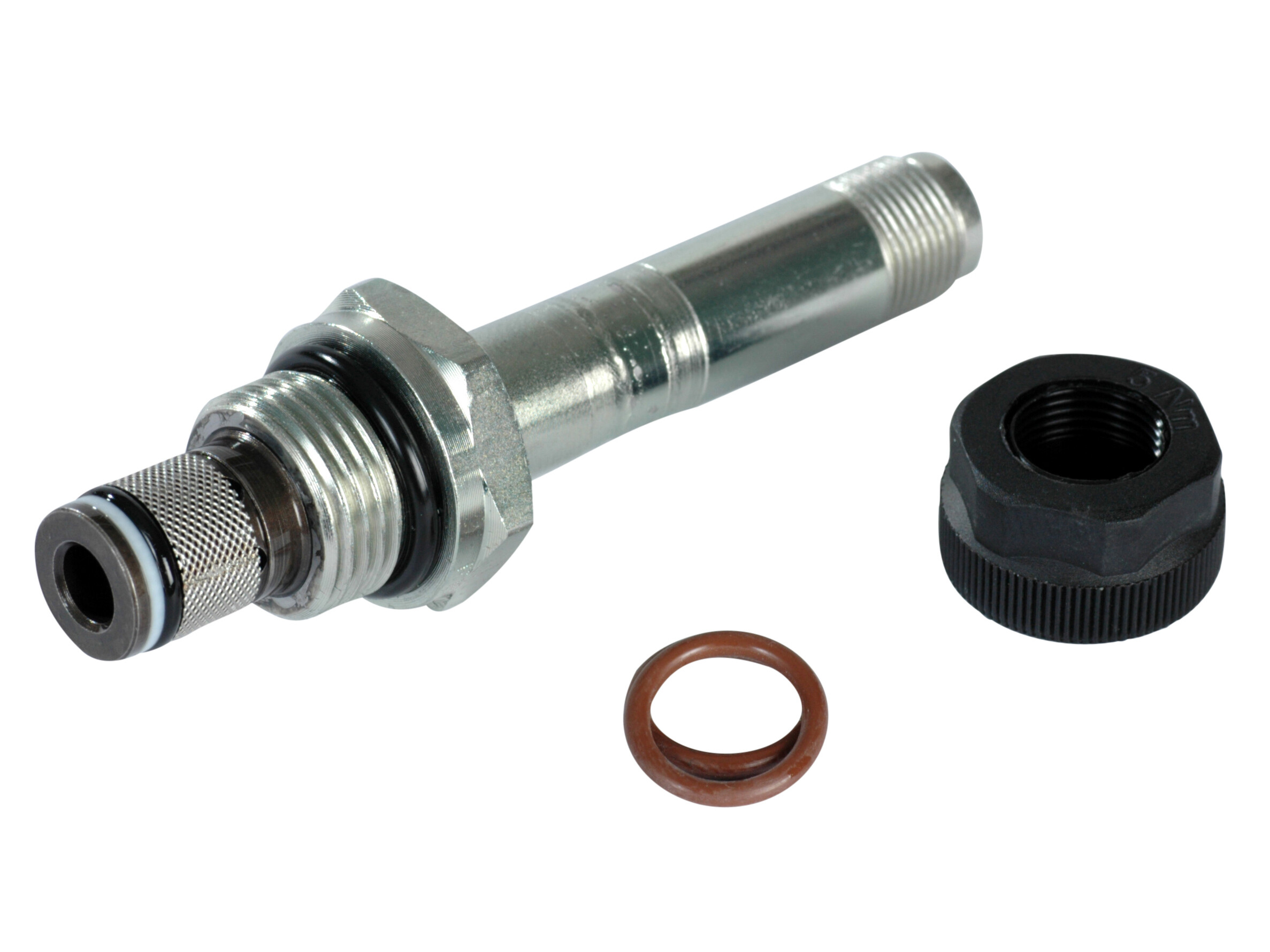

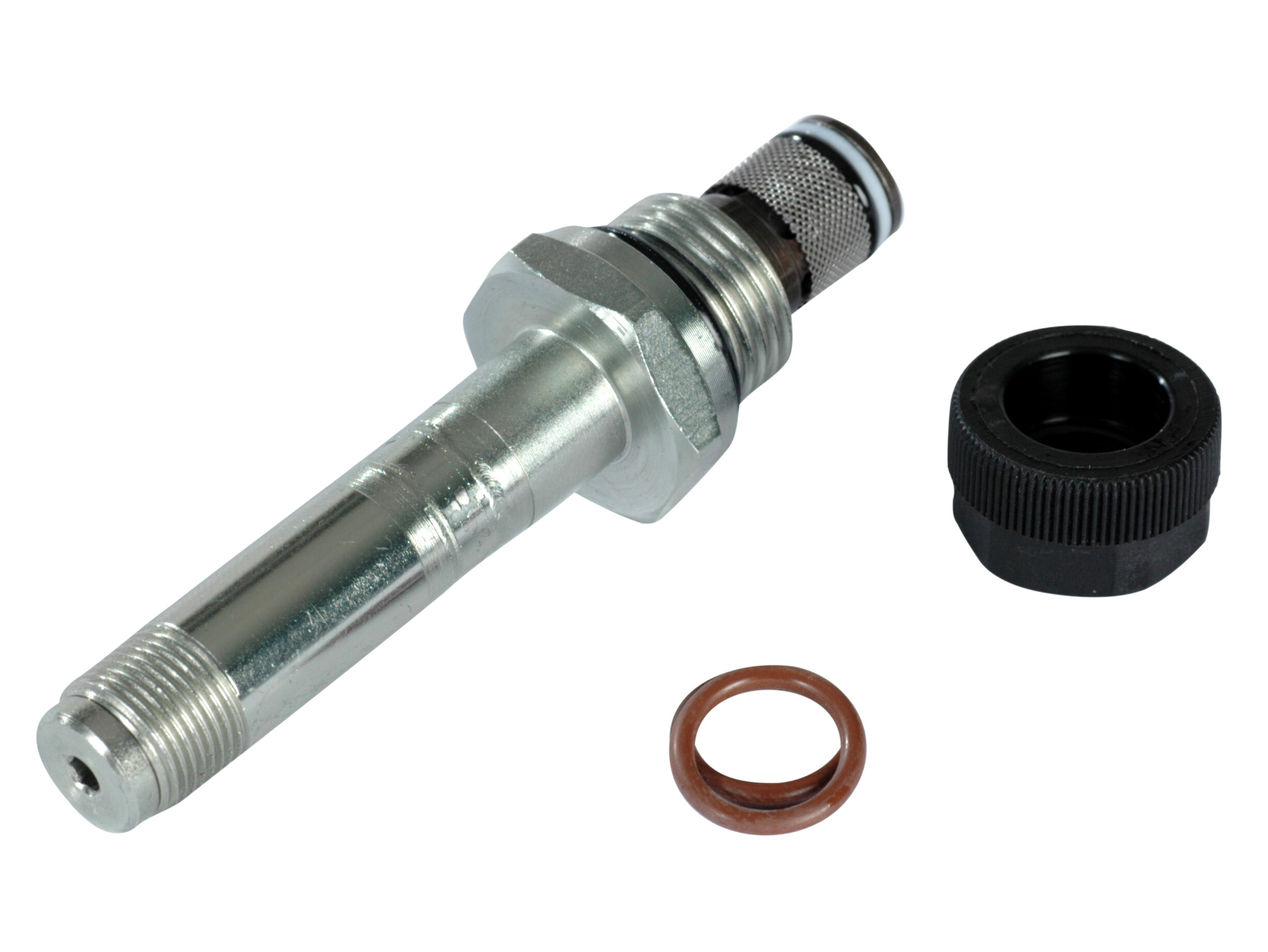

SOLENOID VALVE POPPET SVP08-NOR-00-00-B-F-00
This is a 2-way, 2-position, poppet type, pilot operated, normally open solenoid valve. When de-energized, flow can take place from port 2 to 1 and from 1 to 2. In its energized condition, flow can take place from port 1 to 2 but is blocked in the other direction. Leakage is kept to a minimum due to the poppet design. Some models have the option of a filter around port 2, and these come standard with a push pin manual override.
These valves can be used to hold loads in position when energized, interrupt a pressure line where flow normally passes in both directions, or bypass excess oil to tank in a fail-safe way.
Artikelnummer:
805338319
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Activation
Solenoid
Brand Name
Danfoss
Cavity
SDC08-2
Contamination level max.
20/18/14 - ISO 4406
Filter built-in
Yes
Flow rate nominal LMin
35 lpm
Manual operated
No
Model code
SVP08-NOR-00-00-B-F-00
Number of ways/positions
2/2
Oil viscocity recommended
12 - 54 cSt
Pressure max.
230 bar
Sealing material
NBR
Solenoidtype
M13 - R13
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
35 - 40 Nm
Valve type
NO - Normally open
Förpackningsstorlek
1 st
Streckkod
374835
Bruttovikt
0,12 Kg
Nettovikt
0,12 Kg
Ursprungsland
Intrastat artikelkod
84812010
This is a 2-way, 2-position, poppet type, pilot operated, normally open solenoid valve. When de-energized, flow can take place from port 2 to 1 and from 1 to 2. In its energized condition, flow can take place from port 1 to 2 but is blocked in the other direction. Leakage is kept to a minimum due to the poppet design. Some models have the option of a filter around port 2, and these come standard with a push pin manual override.
These valves can be used to hold loads in position when energized, interrupt a pressure line where flow normally passes in both directions, or bypass excess oil to tank in a fail-safe way.
