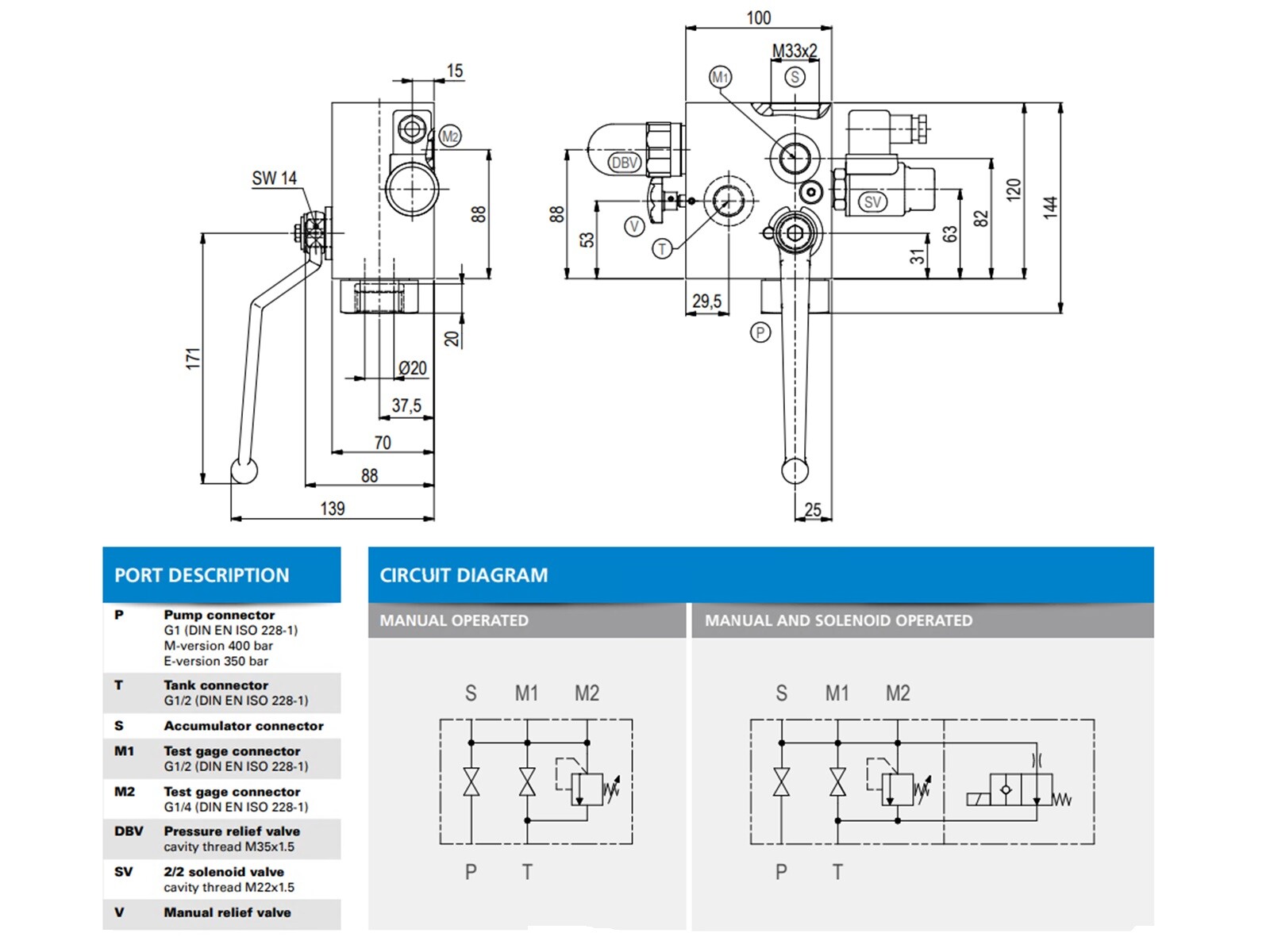

ASB-DN20-G1-M-112A-330-C Safety block Accumulator
ASB-DN20-G1-M-112A-330-C with pressure relief valve-PS330
Accumulators safety block
DN20 - PN 400
Pipe P: G1" female thread according to ISO228
Plugs: galvanised steel
Body: galvanised steel
Bearing: galvanised steel
Ball: hard chrome plated steel
Ball seal: POM
O-rings: NBR
Handle: Zn, bent
Temperature min.
Varenummer:
59773
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Aktivering
Manual
DN
20 mm
Gevind
G 1 BSP
Material sæde
POM(Acetal)
Materiale
Steel
Materiale kugle
Carbon steel
Model kode
59770
Mærke navn
MHA Zentgraf
Pakningsmateriale
NBR, POM (Acetal)
Port P1
G 1 BSP
Port T1
G 1/2 BSP
Tryk maks.
400 bar
Package size
1 st
Barcode
430701
Gross weight
Kg
Net weight
Kg
Country of origin
Intrastat code
84812010
ASB-DN20-G1-M-112A-330-C with pressure relief valve-PS330
Accumulators safety block
DN20 - PN 400
Pipe P: G1" female thread according to ISO228
Plugs: galvanised steel
Body: galvanised steel
Bearing: galvanised steel
Ball: hard chrome plated steel
Ball seal: POM
O-rings: NBR
Handle: Zn, bent
Temperature min.
