Insert 5/8" - M30x2 nut 20S 45°

Insert with MM female thread in nut and 24° cone face with o-ring.

Connection: MM female thread and 24° cone face with o-ring (DIN2353).

Sealing: O-ring against cone face.

Varenummer:
4842-20-10

Pakke str.:
50 st

Min. bestillingsenhed er:
1 st
Angle
45 °

Brand Name
I.M.M Hydraulics

Diameter pipe
20 mm

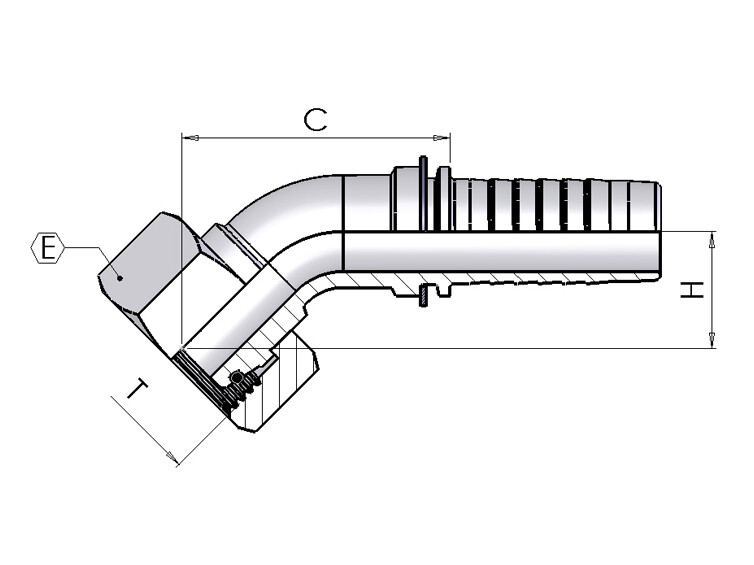

Dimension C
74 mm

Dimension E
36 mm

Dimension H
29 mm

Dimension T metric
M30x2

Hose coupling type
For separate ferrule

Hose size
5/8 "

Material
Steel

Model code
0284-10-30

Sealing material
NBR

Series
S

Surface treatment
Electro-galvanized / White chromatized

Temperature max.
+100 °C

Temperature min.
-30 °C

Torque tightening
106 Nm
Förpackningsstorlek
50 st

Streckkod
143231

Bruttovikt
0,23 Kg

Nettovikt
0,23 Kg

Ursprungsland
ITA

Intrastat artikelkod
73269098

Insert with MM female thread in nut and 24° cone face with o-ring.

Connection: MM female thread and 24° cone face with o-ring (DIN2353).

Sealing: O-ring against cone face.
