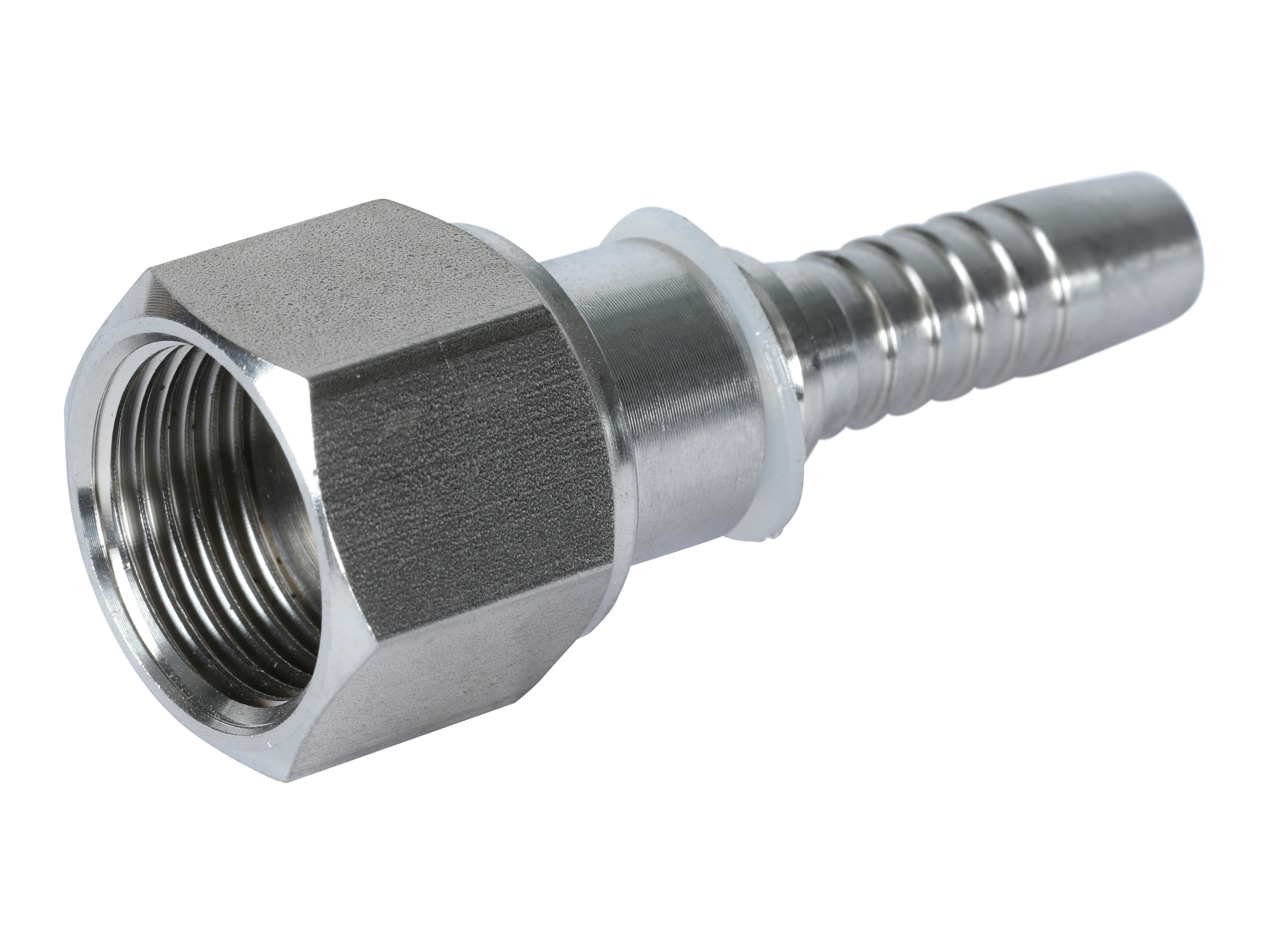

1/4" Insert - (8L) M14x1.5 female - AISI316
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
Partnumber:
4722-08-04-SY
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Hydraspecma
Diameter pipe
8 mm
Dimension L
52 mm
Dimension L1
28 mm
Hose coupling type
For separate ferrule
Hose size
1/4 "
Key size
17 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
84804140804
Sealing material
FKM/FPM (Viton®)
Series
L
Temperature max.
+100 °C
Temperature min.
-30 °C
Torque tightening
15 Nm
Package size
1 st
Barcode
225174
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
ESP
Intrastat code
73269098
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
