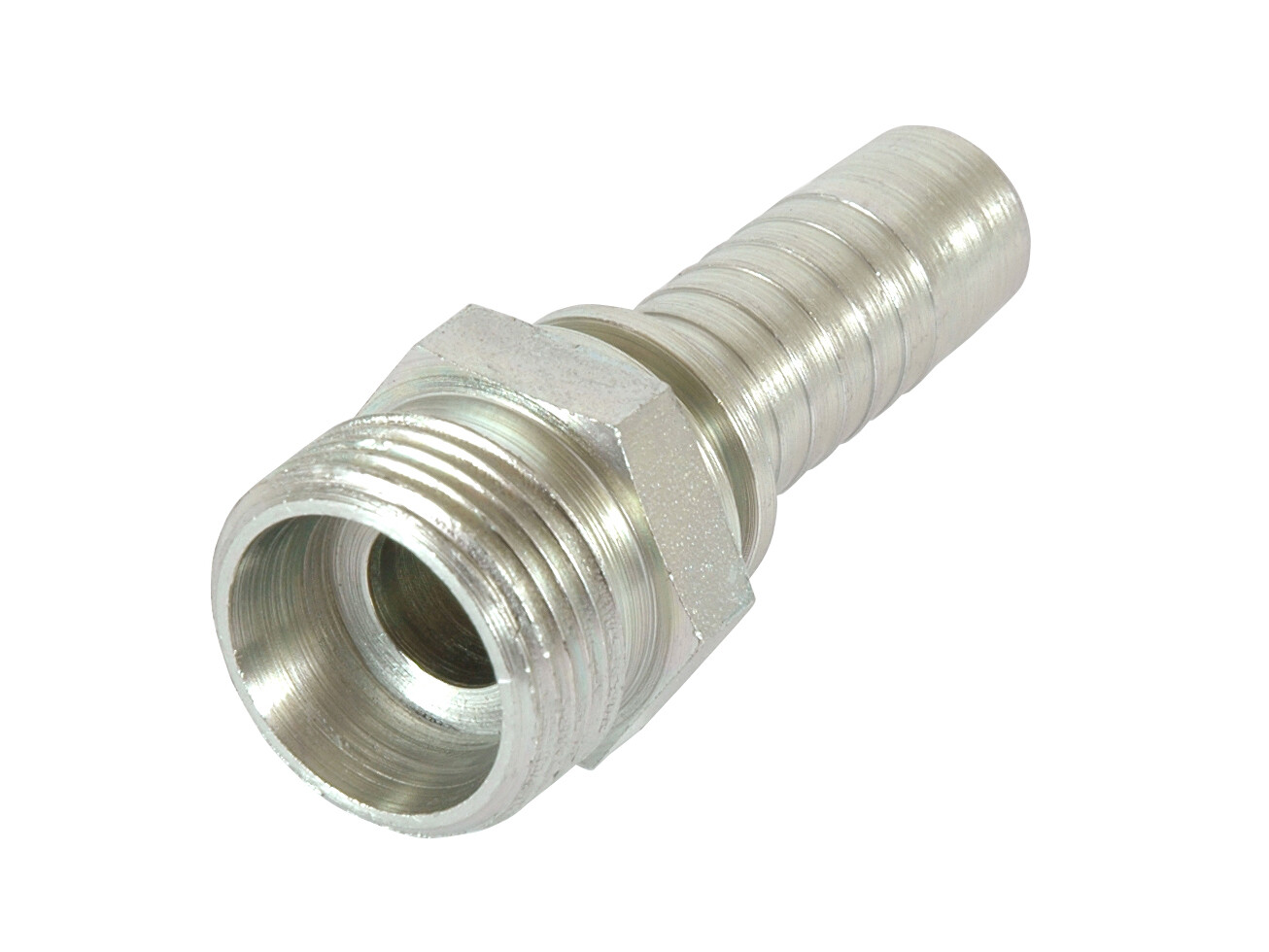

Insert 5/16" - M16x1.5 male 10L

Insert with MM male thread for mounting in nut or against tube with cutting ring and nut.

Connection: MM male thread with 24° cone face (DIN2353).

Sealing: Metal against metal (cone).

Varenummer:
4710-10-05

Pakke str.:
300 st

Min. bestillingsenhed er:
1 st
Angle
0 °

Brand Name
I.M.M Hydraulics

Diameter pipe
10 mm

Dimension C
23 mm

Dimension E
17 mm

Dimension T metric
M16x1,5

Hose coupling type
For separate ferrule

Hose size
5/16 "

Material
Steel

Model code
0500-05-16

Series
L

Surface treatment
Electro-galvanized / White chromatized
Pakke str.
300 st

Stregkode
143048

Brutto vægt
0,03 Kg

Netto vægt
0,03 Kg

Oprindelsesland
ITA

Intrastat varekode
73269098

Insert with MM male thread for mounting in nut or against tube with cutting ring and nut.

Connection: MM male thread with 24° cone face (DIN2353).

Sealing: Metal against metal (cone).
