Insert 3/16" - M12x1.5 male 06L
Insert with MM male thread for mounting in nut or against tube with cutting ring and nut.
Connection: MM male thread with 24° cone face (DIN2353).
Sealing: Metal against metal (cone).
Partnumber:
4710-06-03
Package size:
250 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
I.M.M Hydraulics

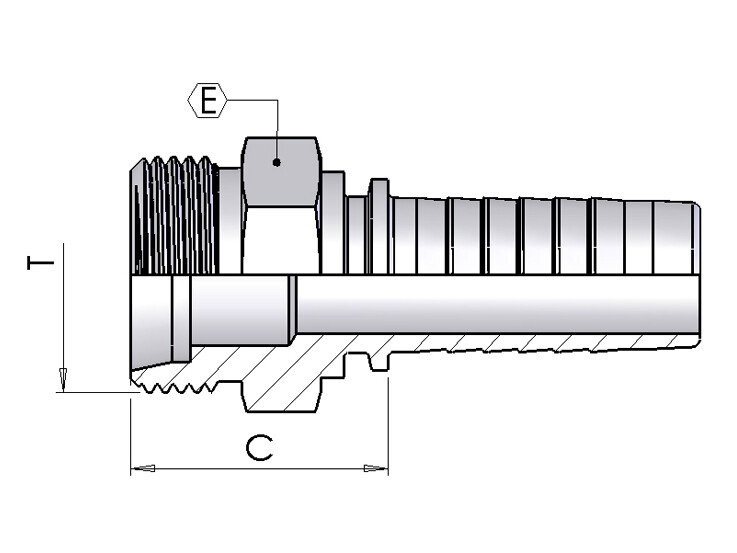

C
22 mm
Diameter pipe
6 mm
E
14 mm
Hose coupling type
For separate ferrule
Hose size
3/16 "
Model code
0500-03-12
Series
L
Surface treatment
Electro-galvanized / White chromatized
T
M12x1,5
Förpackningsstorlek
250 st
Streckkod
143043
Bruttovikt
0,02 Kg
Nettovikt
0,02 Kg
Ursprungsland
ITA
Intrastat artikelkod
73269098
Insert with MM male thread for mounting in nut or against tube with cutting ring and nut.
Connection: MM male thread with 24° cone face (DIN2353).
Sealing: Metal against metal (cone).
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
