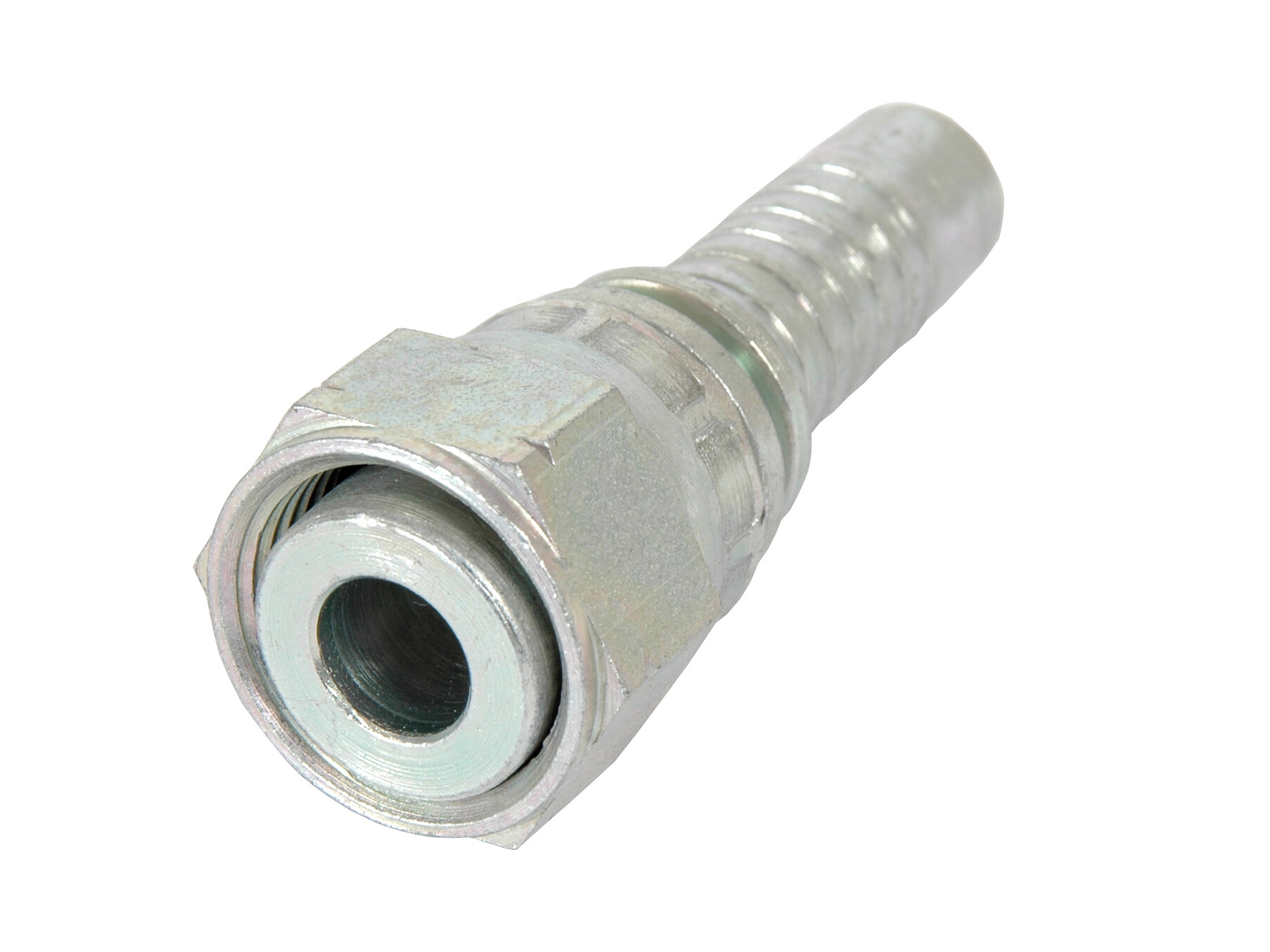

Insert 3/16" - 9/16"-18 ORFS nut
Insert with ORFS female thread in nut and flat face.
Connection: ORFS female thread in nut and flat face.
Sealing: Metal against o-ring on counterpart.
Partnumber:
4224-04-03
Package size:
250 pcs
Min. order quantity is:
1 pcs

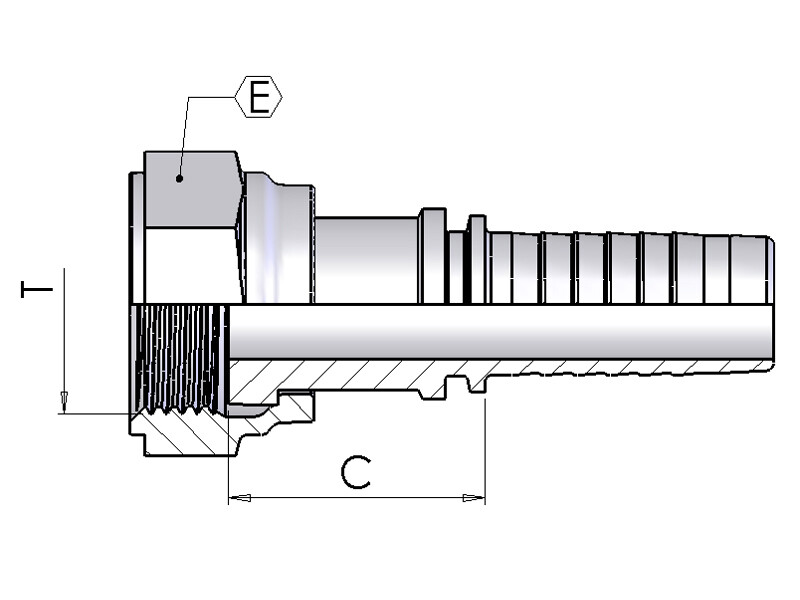

C
25 mm
E
19 mm
Gänga
9/16-18 ORFS
Modell kod
S050-03-06
Märke namn
I.M.M Hydraulics
Sexkant
19 mm
Slangdimension
3/16 "
Slangkopplingstyp
For separate ferrule
T
9/16-18 ORFS
Tillverkningsmaterial
Steel
Vinkel
0 °
Ytskiktbehandling
Electro-galvanized / White chromatized
Åtdragning moment
25 Nm
Förpackningsstorlek
250 pcs
Streckkod
142462
Bruttovikt
0,03 Kg
Nettovikt
0,03 Kg
Ursprungsland
ITA
Intrastat artikelkod
73269098
Insert with ORFS female thread in nut and flat face.
Connection: ORFS female thread in nut and flat face.
Sealing: Metal against o-ring on counterpart.
