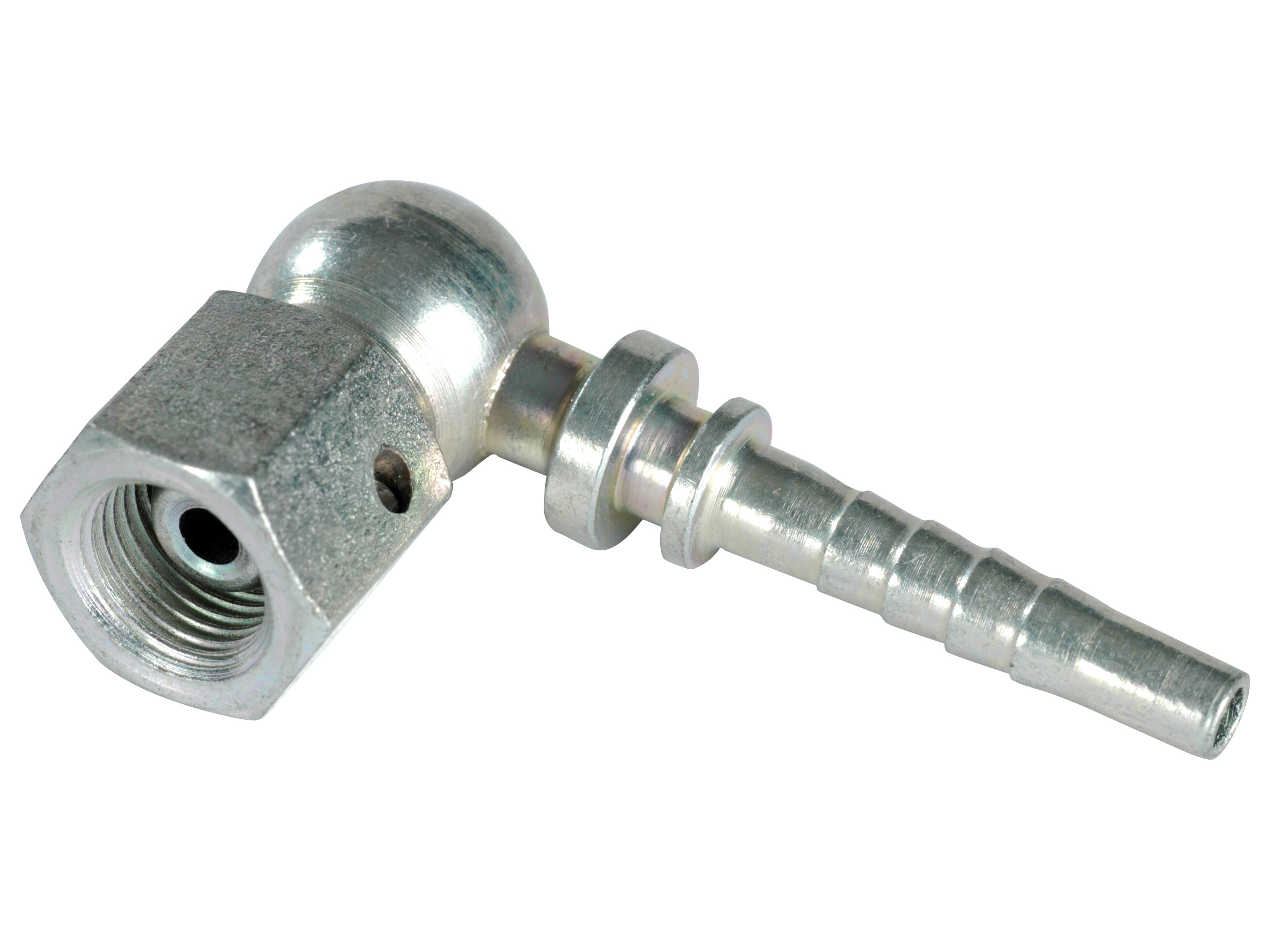

Insert 3/16" - 1/8" BSP nut 90S

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face.

Sealing: Metal against metal (cone).

Partnumber:
4052-02-03

Package size:
175 st

Min. order quantity is:
1 st
Angle
90 °

Brand Name
I.M.M Hydraulics

Dimension C
17 mm

Dimension E
14 mm

Dimension H
16 mm

Dimension T
G 1/8 BSP

Hose coupling type
For separate ferrule

Hose size
3/16 "

Material
Steel

Model code
2320-03-02

Surface treatment
Electro-galvanized / White chromatized

Thread
G 1/8 BSP

Torque tightening
20 Nm
Package size
175 st

Barcode
142061

Gross weight
0,03 Kg

Net weight
0,03 Kg

Country of origin
ITA

Intrastat code
73269098

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face.

Sealing: Metal against metal (cone).
