1.1/4" Insert - 1.1/4" BSP female - 45° - AISI316

Connection: BSP female thread in nut, with 60° cone face.

Artikelnummer:

4041-20-20-SY

Förpackningsstorlek:

1 pcs

Minsta beställningskvantitet:

1 pcs

Specifications
Dimensions and shipping

Angle

45 °

Brand Name

Hydraspecma

HEX 1

50 mm

Hose coupling type

For separate ferrule

Hose size

1.1/4 "

Key size

50 mm

207 mm

54,5 mm

42 mm

Material

Stainless steel

Material quality

1.4571 / AISI316Ti

Model code

841082020

G 1.1/4 BSP

Torque tightening

210 Nm

ØC

26 mm

ØD

26 mm

Package size

1 pcs

Barcode

225063

Gross weight

0,89 Kg

Net weight

0,89 Kg

Country of origin

ESP

Intrastat code

73269098

Product information

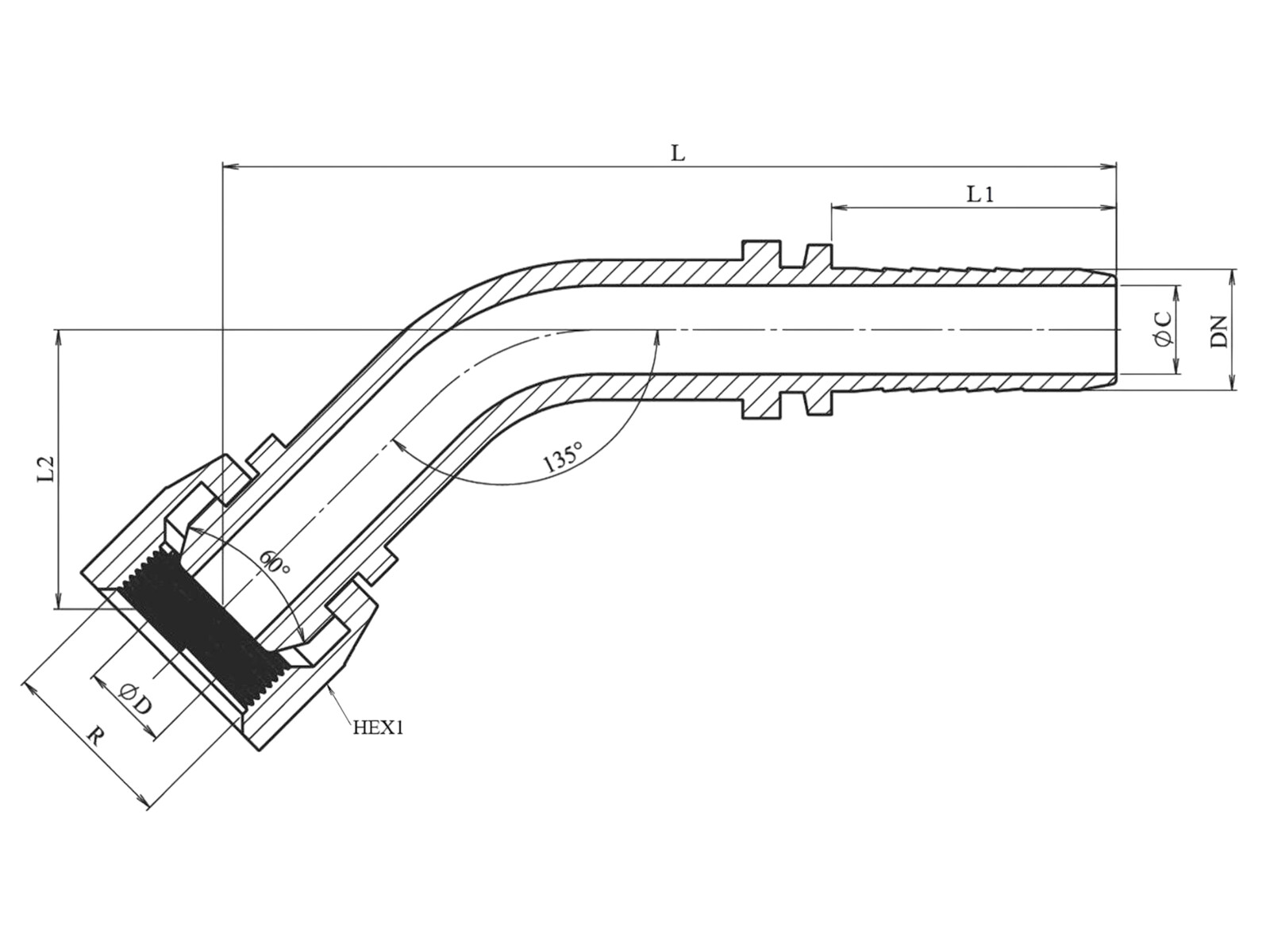

Measure sketch

Connection: BSP female thread in nut, with 60° cone face.
