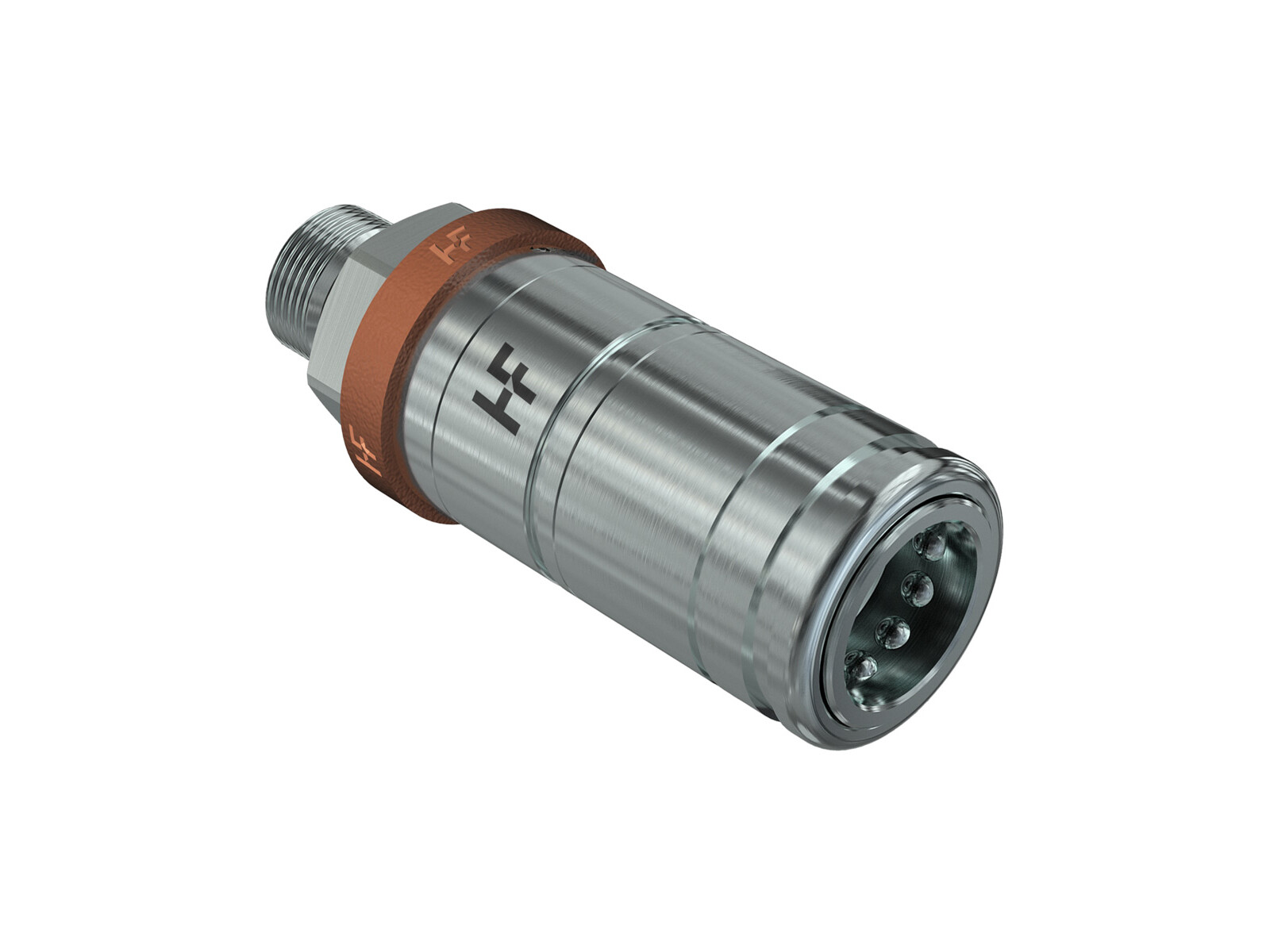

Push-pull female ISO A
Push-pull female part with internal thread. Can be mounted on pipe or directly on valve.
Can automatically disconnect the male part in an emergency (emergency breakaway).
Can be assembled by hand with pressure on the male part.
Safety factor, pressure indication:
Dynamic: 1:2
Static: 1:4
Partnumber:
3CFHF12/1UNSF
Package size:
1 st
Min. order quantity is:
1 st
DN
12.5 mm
Dimension D
42 mm
Flödeshastighet nominell LMin
70 lpm
Gänga utv.
1-14 UNF
ISO storlek
12.5
Märke namn
Faster
Packningsmaterial
Polyurethane
Rostbeständighet
500 hours salt spray ISO 9227
Sexkant
32 mm
Standard ISO
ISO 7241-1-A
Storlek
1/2 "
Temperatur max.
+100 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Steel
Tryck max.
250 bar
Tryckeliminator
Yes
Typ
Poppet
Ytskiktbehandling
Zinc coating (CR III)
Pakke str.
1 st
Stregkode
454482
Brutto vægt
Kg
Netto vægt
0,636 Kg
Oprindelsesland
ita
Intrastat varekode
84812010
Push-pull female part with internal thread. Can be mounted on pipe or directly on valve.
Can automatically disconnect the male part in an emergency (emergency breakaway).
Can be assembled by hand with pressure on the male part.
Safety factor, pressure indication:
Dynamic: 1:2
Static: 1:4
