2" Coupling - 2" SAE6000 flange - Caterpillar® - 45°
Coupling for multispiral hose. Flange coupling type "FLC" SAE 6000 PSI. For Caterpillar. Used with flange halves.
Partnumber:
32GSM32FLC45-064
Package size:
1 st
Min. order quantity is:
1 st
Angle
45 °
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117
Diameter flange
79.5 mm

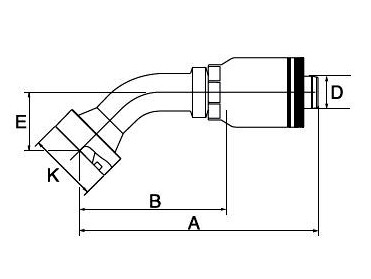

Dimension A
287.5 mm
Dimension B
173.5 mm
Dimension E
64 mm
Dimension K
79.5 mm
Flange
2 "
Flange SAE/DIN
6000 PSI
Hose coupling type
With fixed ferrule
Hose size
2 "
Material
Steel
Model code
32GSM-32FLC45-064
O-ring
56,75X3,53 mm
Pressure max.
420 bar
REACH compliant
Yes
RoHs compliant
Yes
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
TuffCoat™
Förpackningsstorlek
1 st
Streckkod
288095
Bruttovikt
1,80 Kg
Nettovikt
1,80 Kg
Ursprungsland
USA
Intrastat artikelkod
73269098
Coupling for multispiral hose. Flange coupling type "FLC" SAE 6000 PSI. For Caterpillar. Used with flange halves.
