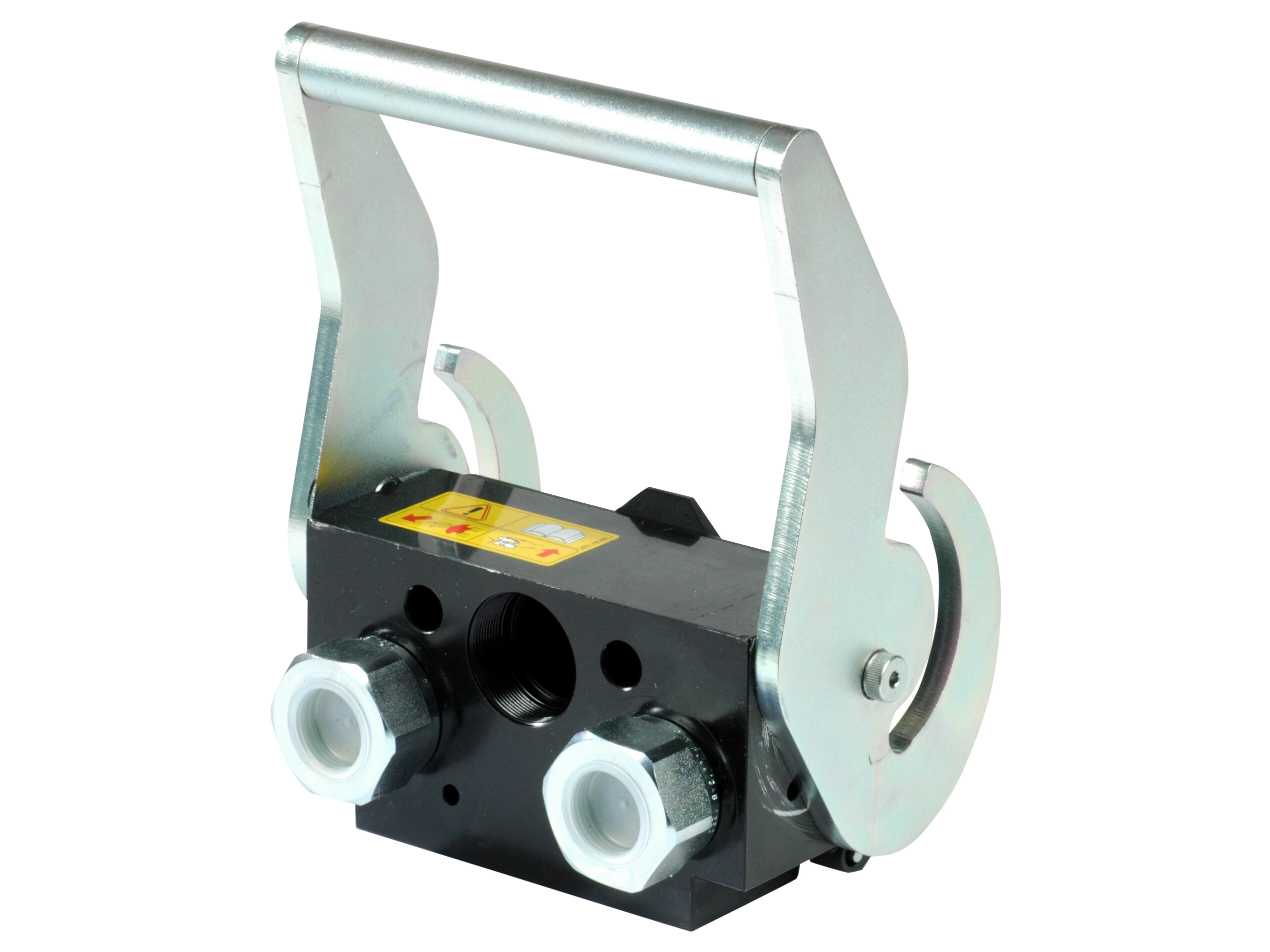

MultiFaster Fixed part, 2P316 2x1 couplings, 1 BSP female

MultiFaster quick connector for quick connection.

Quickly disconnect and connect multi-connection system for connecting several hydraulic and electrical lines with one function. No liquid or air leaks when connecting and disconnecting the MultiFaster quick connector.

Both the 2P... and 3P... series are equipped with Flat-face connectors.
The mobile part of the 3P... series is equipped with flat male connectors type K3FNP in order to achieve effortless connection and disconnection at maximum working pressure.

Partnumber:
2P316-2-1GFC

Package size:
1 st

Min. order quantity is:
1 st
Female 1 2P Multifaster KIT2FNB1GASF
Artikelnummer: KIT2FNB1GASF
SÄKERHETSLÅS SP5
Artikelnummer: KITSP5S
Automatic dust cap
Artikelnummer: KITTAP8
Brand Name
Faster

Corrosion resistance
500 hours salt spray ISO 9227

Flow rate nominal LMin
150 lpm

Model
2P316

Model code
2P316-2-1GFC

Number of connectors
2

Pressure burst min.
1100 bar

Pressure max.
250 bar

Sealing material
NBR, Polyurethane

Series
P316

Size
1 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread
G 1 BSP
Förpackningsstorlek
1 st

Streckkod
237132

Bruttovikt
8,20 Kg

Nettovikt
8,20 Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

MultiFaster quick connector for quick connection.

Quickly disconnect and connect multi-connection system for connecting several hydraulic and electrical lines with one function. No liquid or air leaks when connecting and disconnecting the MultiFaster quick connector.

Both the 2P... and 3P... series are equipped with Flat-face connectors.
The mobile part of the 3P... series is equipped with flat male connectors type K3FNP in order to achieve effortless connection and disconnection at maximum working pressure.
