1.1/2" Coupling - 1.1/2" SAE6000 full flange - 45° - 24GSM24
Connector description: SAE flanged hose connector with flange bracket included.
Partnumber:
24GSM24FLHCFM45-44
Package size:
1 st
Min. order quantity is:
1 st
Angle
45 °
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117
Diameter flange
63.5 mm

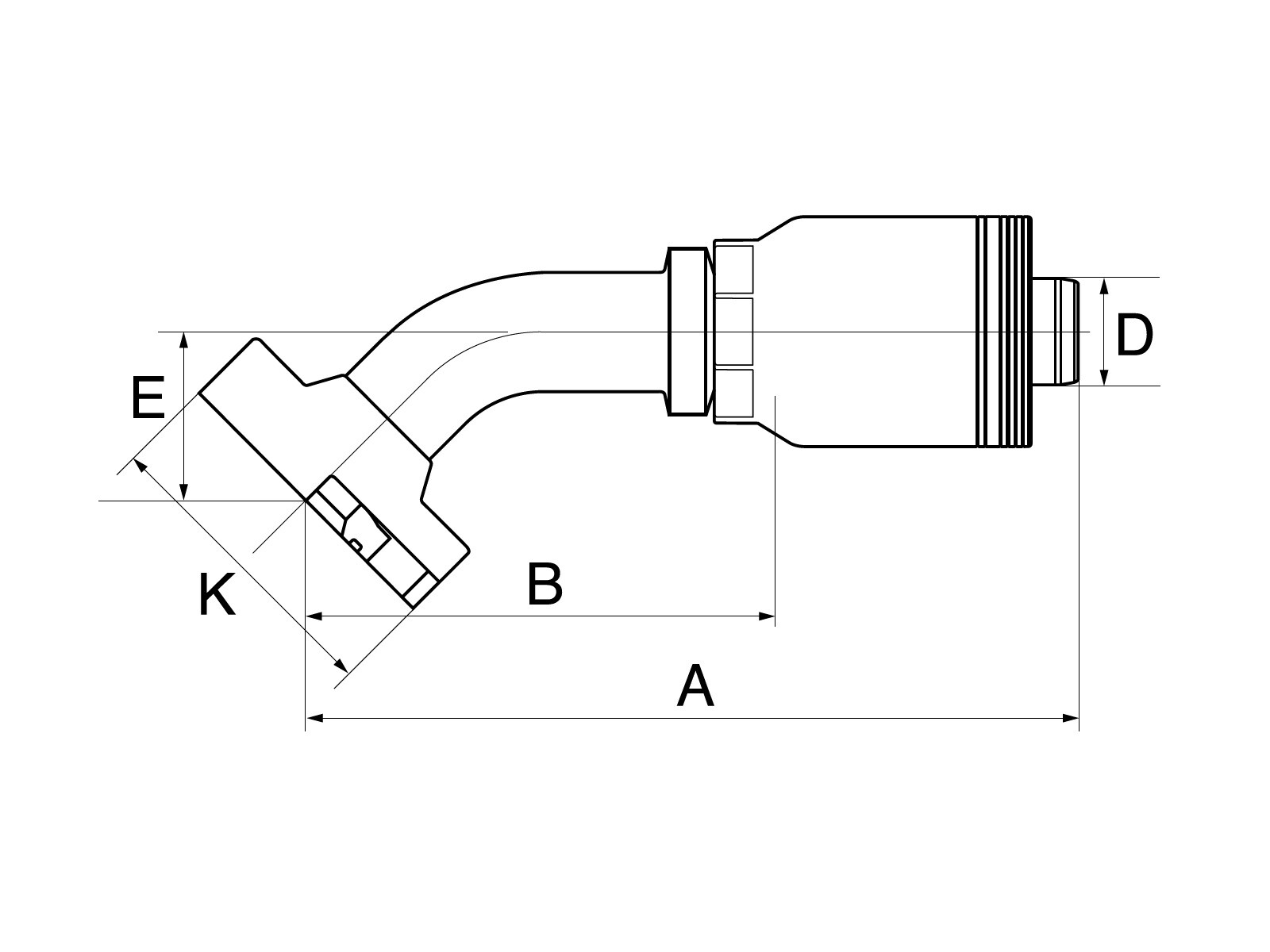

Dimension A
232 mm
Dimension B
137 mm
Dimension D
1.1/2 "
Dimension E
44 mm
Dimension K
63.5 mm
Flange
1.1/2 "
Flange SAE/DIN
6000 PSI
Hose coupling type
With fixed ferrule
Hose size
1.1/2 "
Material
Steel
Model code
24GSM24FLHCFM45M
O-ring
47,22X3,53 mm
Pressure max.
420 bar
REACH compliant
Yes
RoHs compliant
Yes
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
TuffCoat™
Torque tightening
158 - 181 Nm
Förpackningsstorlek
1 st
Streckkod
297552
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
USA
Intrastat artikelkod
73269098
Connector description: SAE flanged hose connector with flange bracket included.
